DBI-SALA 3M Twin-Leg Y Web Shock-Absorbing Lanyard, Open-Jaw Large Hook 1246581C
FPL1246581C
Twin-leg Y lanyard in polyester web with built-in shock absorber, 6 ft (1.8 m) length. Two zinc-plated open-jaw large hooks at the ends, suited to large-diameter structures, central zinc-plated snap hook. Capacity of 132 to 310 lb (59.9 to 140.6 kg). Compliant with CSA Z259.11. 3M IRF identification system.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Fall protection: the twin-leg Y shock absorbing lanyard for large structures
3M purchase code: 7100329199, model: 1246581C

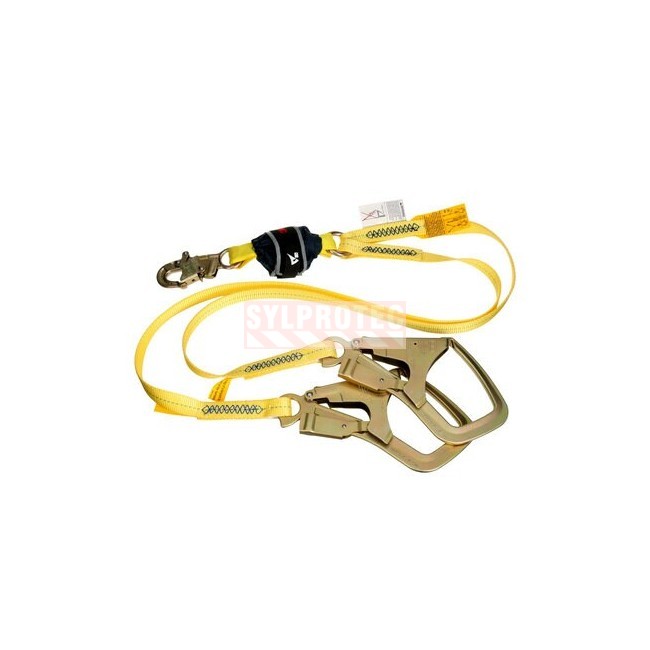

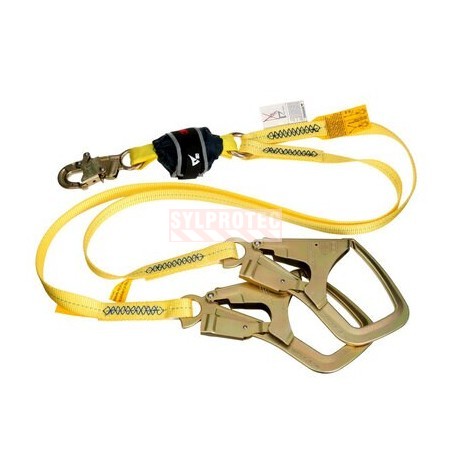

The DBI-SALA 3M 1246581C twin-leg Y shock absorbing lanyard is a 6 ft (1.8 m) lanyard built for workers who must move from one anchor point to another while staying tied off at all times. Its yellow polyester web houses an energy absorber inside a black pack that deploys progressively during a fall to reduce the arresting forces transmitted to the worker.

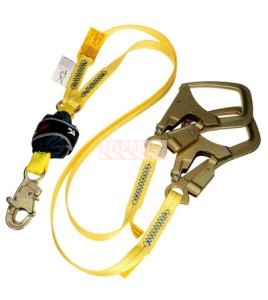

This twin-arm configuration provides a 100% continuous connection, since the second arm is attached before the first is released. It connects by means of a zinc-plated snap hook at the harness attachment point and two zinc-plated open-jaw large hooks at the ends of the arms, designed to tie off to large-diameter structures such as beams or pipes. The 3M IRF identification system makes equipment tracking and inspection easier throughout its service life.
Total worker weight capacity, including clothing, tools and equipment, is 132 to 310 lb (59.9 to 140.6 kg). This product is compliant with CSA Z259.11.
Understanding the fall clearance window
Before using this energy-absorbing lanyard, calculate the fall clearance, that is, the free space required below the anchorage point to arrest a fall before the worker strikes the ground or an obstacle. This clearance window adds up from several elements: the length of the lanyard, the deployment of the energy absorber, the height of the worker, the dorsal D-ring slide and a safety margin. A miscalculation is one of the most common causes of serious injuries at height, even with compliant equipment.
For this 6 ft lanyard: the lanyard (6 ft) plus the absorber deployment (4 ft) plus the worker height (6 ft) plus a safety margin (1.5 ft) give a total clearance of about 17.5 ft (5.3 m) below an overhead anchorage. In low-clearance situations, choose a self-retracting lifeline instead.
FAQ: Frequently asked questions about the open-jaw hook twin-leg Y lanyard
Does this lanyard meet Canadian standards?
Yes, this product is compliant with CSA Z259.11 for construction sites and industrial environments in Canada.
What is the capacity of this lanyard?
This lanyard is designed for a worker whose total weight, including tools, is between 132 and 310 lb (59.9 to 140.6 kg).
Why choose an open-jaw hook over a standard hook?

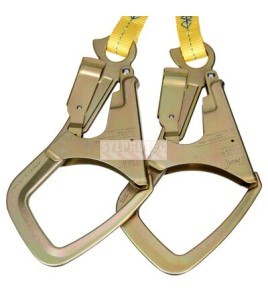

The open-jaw hook offers a wider opening than a standard snap hook, allowing direct tie-off to large-diameter structures such as beams, pipes or rebar, without needing a dedicated anchor point.
What fall clearance is required?
About 17.5 ft (5.3 m) below an overhead anchorage. In low-clearance situations, choose a self-retracting lifeline instead.
What happens if my anchor is at foot level?
This is the most dangerous scenario, fall factor 2: the free fall can reach twice the lanyard length. This 3M IRF energy absorbing lanyard is designed to dissipate the energy of a severe fall and reduce arresting forces, making it suitable when the anchor is at foot level.
Complementary suggestions for the lanyard:
A cladding installer at height connecting with this DBI-SALA 3M lanyard completes personal protection with a high-visibility garment (VV22), a helmet (TA222) with an integrated chin strap, cut-resistant gloves (GSSXPU3OF), safety eyewear (YG3960C) and corded earplugs (OA101) that stay around the neck and cannot drop from height.
For the lanyard to work in a complete fall arrest system, plan a DBI-SALA 3M harness (FPH111319XCALP), a DBI-SALA 3M fixed anchor (FPA210481X), a second DBI-SALA 3M beam anchor (FPA2100159), a 100 ft RollGliss R550 rescue (FPLR5503325) and descent device for emergency lowering, a DANGER barricade tape (ECT3YE7) to cordon off the ground area and the sign (ECO130) reminding that the harness is mandatory.
FPL1246581C
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Y-shaped double lanyard with energy absorber
- Product code
- FPL1246581C
- Product use
- Work at height with movement between anchor points: construction, industry, oil and gas, mining, utilities, wind energy and transportation
- Approved/Certified
- Compliant with CSA Z259.11 standards
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Format
- 6 ft / 1.8 m
- Types of lanyards
- Y-shaped double lanyard
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The 3M IRF system energy absorber deploys through controlled tearing to reduce the fall arrest force
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Fitted with a spring-loaded snap hook on the harness side and two open-jaw large hooks for large-diameter structures. All zinc-plated
- Includes
- With a controlled-tearing energy absorber, 3M IRF system
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Worker’s weight
- 130 to 310 lbs / 59 to 140 kg (including tools and equipment)
- Material1
- Polyester
- Material2
- Steel
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Length (in/cm)
- 17 in / 43.18 cm
- Width (in/cm)
- 13 in / 33.02 cm
- Height (in/cm)
- 8 in / 20.32 cm
- Weight (lb/kg)
- 7.44 lb / 3.37 kg
- Sold by
- Unit
- Color
- Yellow/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 132 lb to 310 lb / 59.9 kg to 140.6 kg, including clothing, tools and equipment
