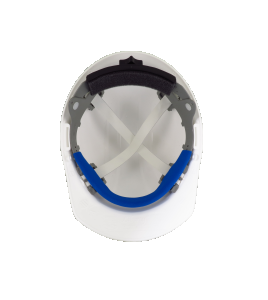

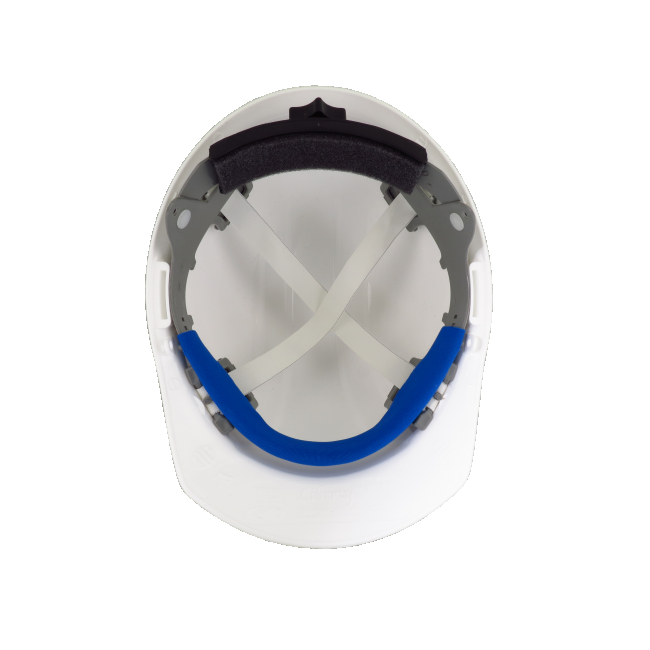

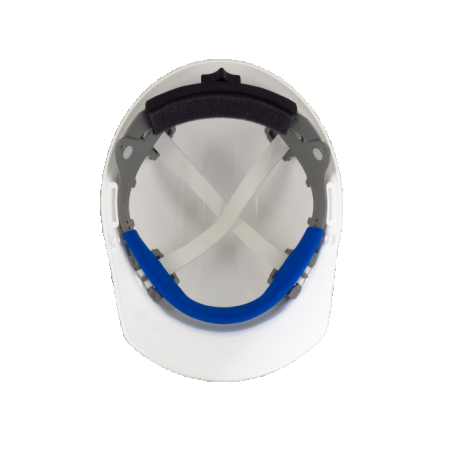

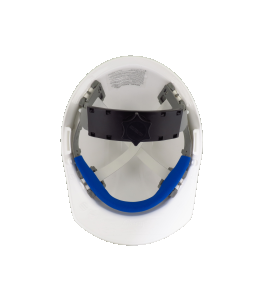

Spare 4-point ratchet suspension (headgear) for Independence Delta Plus safety helmets, sold individually
TA14RS
$12.65
Spare 4-point headgear (suspension) with ratchet adjustment for Independence Delta Plus safety helmets. Comes down low on the neck for better balance. Adjusts size, height and tension (6½ to 8 in). Structure and anchor points in polypropylene, webbing in polyester. Sold individually.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Spare 4-Point Ratchet Suspension for Independence Delta Plus Hard Hats
Spare four-point (4) suspension (headgear) with ratchet adjustment for Independence Delta Plus safety helmets. Sold individually. This suspension comes down low on the neck, making the helmet more stable once on the head. The headgear adjusts in several ways to fit the size of the head (under the headband), the height (pinlocks at the back) and the tension (neck ratchet) for task-specific requirements.
The structure of the suspension and the anchor points are made of polypropylene, while the webbing is made of polyester. The ratchet system adjusts from a diameter of 6½ in to 8 in, ensuring safe and comfortable equipment to wear.
Suspension Specifications
- Type: spare 4-point headgear
- Compatibility: Independence Delta Plus safety helmets (TA14LR, TA14LRHV)
- Ratchet adjustment: size, height and tension
- Adjustment range: 6½ in to 8 in diameter
- Comes down low on the neck (better balance)
- Structure and anchor points: polypropylene
- Webbing: polyester
- Sold individually
Why Replace Your Helmet's Suspension
The suspension is the part of the helmet that absorbs the energy of an impact and ensures daily wearing comfort. Over time, it accumulates sebum, hair and perspiration, and its components wear out. The manufacturer recommends replacing the suspension annually — replacing the suspension rather than the whole helmet is often economical when the shell is still in good condition.
Maintenance and Service Life
According to the Canadian Centre for Occupational Health and Safety, one shall never draw the chin strap over the brim or peak of the headwear. The CSA Z94.1-15 standard recommends inspecting and cleaning the helmet and its suspension daily, with lukewarm water and a mild soap (dish soap). The suspension should be inspected and washed daily to remove sebum, hair and perspiration. The manufacturer recommends replacing it annually.
FAQ — Independence TA14RS Spare Suspension
Which helmets does this suspension fit?
It is designed for Independence Delta Plus safety helmets, including the Independence helmet (TA14LR) and its high-visibility version (TA14LRHV). Check compatibility with your exact model before purchase.
How often should the suspension be replaced?
The manufacturer recommends annual replacement of the suspension. Daily inspection and cleaning are also recommended by the CSA Z94.1-15 standard.
How is it adjusted?
The ratchet system lets you set the tension single-handedly; size adjusts under the headband and height via the pinlocks at the back, over a 6½ to 8 in diameter range.
Complementary Suggestions for Your Independence Helmets
This suspension fits the Independence Delta Plus helmets: the Independence type 1 class E helmet (TA14LR) and its high-visibility version for flagmen (TA14LRHV). See also the Omega II type 2 lateral-protection helmet (TA14OR).
Under "Accessories" at the bottom of the page, complete your equipment with the Peltor 3M hearing protector (OPX4P51E), the 3M headgear face shield holder (YPH24) and its polycarbonate visor (YV96).
TA14RS
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Safety helmets
- Name of the product
- Suspension for Liberty safety helmets
- Series of products
- Independence (Md)
- Product code
- TA14RS
- Manufacturer
- Erb Safety™ / Dentec Safety Specialists
- Country of origin
- United State of America
- Type of adjustment
- Ratchet for a quick and precise adjustment
- Type of suspension
- 4 attachment points
- Features
- The ratchet adjustment system adjusts from 6 ½ inches to 8 inches in diameter which ensures the helmet remains in a secure and comfortable position
- Useful life
- The manufacturer recommends replacing the suspension annually
- Material1
- Polyester
- Material2
- Polypropylene
- Material3
- Nylon
- Washable
- Wash in lukewarm water (140°F/60°C) with a mild soap (hand dishwashing soap), rinse and let dry
- Length (in/cm)
- 8 in / 20.32 cm
- Width (in/cm)
- 6 in / 15.24 cm
- Height (in/cm)
- 3.0 in / 7.62 cm
- Weight (lb/kg)
- 0.2 lb / 0.09 Kg
- Sold by
- Unit
- Color
- Gray/White/black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
