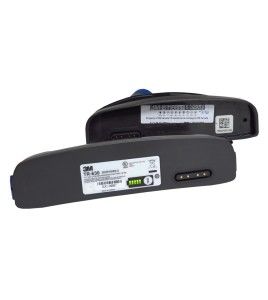

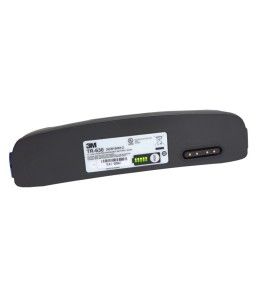

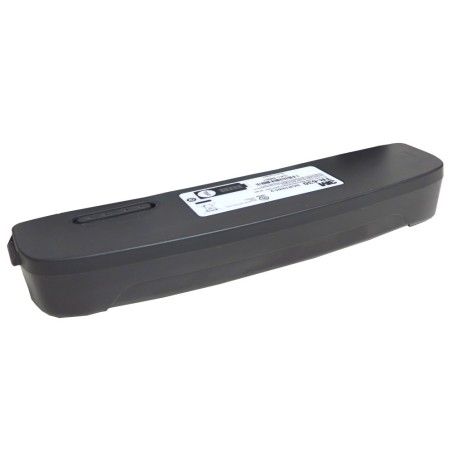

3M rechargeable Lithium-Ion standard nominal capacity battery pack

Rechargeable Versaflo TR 630 battery

 Manufacturer code 3M: TR‑630

Designed to provide continuous respiratory performance, the 3M TR 630 rechargeable battery is the essential accessory for Versaflo TR 600 powered air respiratory protection systems. Thanks to its lithium‑ion technology, it offers an autonomy of 4 to 12 hours depending on usage conditions and fully recharges in only 3.5 hours under ideal conditions. Each battery must be recharged with its specific charger, as the charging algorithm, amperage and voltage vary according to the chemical composition of the battery. It is designed to withstand approximately 250 charge cycles, ensuring durability suited to Canadian industrial environments.

Equipped with a five‑bar charge status indicator, it allows easy visualization of the remaining capacity. Like all lithium‑ion batteries, its capacity decreases slightly over the cycles, which explains why a fully recharged battery may display four bars after some time. This simply reflects its actual remaining capacity.

By choosing the Versaflo TR 630 rechargeable battery, you are investing in reliable, safe and durable power to maintain optimal respiratory protection on a daily basis.

Features of the Versaflo TR 630 rechargeable battery

The Versaflo TR 630 battery stands out for its standard‑capacity lithium‑ion technology, its 4 to 12‑hour autonomy, its precise charge status indicator and its exclusive compatibility with 3M TR 600 powered respirators. NIOSH‑certified when assembled with a Versaflo unit, it is designed to withstand 250 charge cycles and to provide stable performance in Canadian industrial environments. Its safe use requires a dedicated charger, ensuring charging that complies with the manufacturer’s specifications.

This battery is equipped with a charge status indicator. Each bar corresponds to a 20% segment, so 5 bars correspond to a charge between 80% and 100%. The charge status indicator calculates based on the actual charge capacity of the battery. The capacity of lithium‑ion batteries decreases slightly with each full charge cycle, which is why after some time, your battery may indicate 4 bars (80%) even though it has been fully recharged. This simply means that the battery has retained, in this example, 80% of its original capacity.

The manufacturer estimates the lifespan at 250 charge cycles. As an example, if you use 20% of your battery and then recharge it, the number of cycles counted over the total lifespan will be proportional to the portion recharged, therefore 20% of a cycle.

Installation of the Versaflo TR 630 rechargeable battery

Installing the TR 630 battery is simple and intuitive. Just insert the battery into the compartment located at the back of the Versaflo TR 600 motor until it locks securely. This quick installation allows workers to replace the battery without tools, ensuring continuous respiratory protection in the field.

Maintenance of the Versaflo TR 630 rechargeable battery

You can clean this battery with a cloth and mild soap (dish soap). If you wish to decontaminate and immerse it, you can do so using the RVTR653 cleaning kit. Simply protect the electrical contacts with the sealing caps on the belt that wraps firmly around the battery. Note that immersion must not exceed 2 feet in depth and must not last more than 2 minutes.

Note that you should never throw a battery in the trash, as it poses a risk of fire or explosion and its primary components present potential environmental hazards. In Quebec, ecocentres are sites where you can drop off hazardous waste such as batteries.

3M recommends not storing the battery on its charger in order to maximize its lifespan.

Usage tips to optimize the autonomy of the TR 630 battery

To maximize autonomy, it is recommended to fully recharge the battery before each work shift and to use only the corresponding charger. Avoid extreme temperatures, which can reduce energy capacity. Regularly check the charge indicator and replace the battery when its actual capacity becomes insufficient. This battery is ideal for Canadian industrial environments where energy reliability is essential.

FAQ – Versaflo TR 630 rechargeable battery

How long does the Versaflo TR 630 rechargeable battery last?

It offers an autonomy of 4 to 12 hours depending on the filters used, airflow and working conditions.

Does the TR 630 battery need to be recharged with a specific charger?

Yes, each 3M lithium‑ion battery must be recharged with its dedicated charger, as the charging algorithm and voltage differ depending on the model.

Is the Versaflo TR 630 battery NIOSH‑certified?

Yes, it is NIOSH‑certified when used with a Versaflo TR 600 powered respiratory system.

Complementary suggestions

Need additional safety equipment? See the following items: CDN “Cartridge Respirator Required” sign (ECO106), “Notice: Cartridge Respirator Required in This Area” sign (EOAV328), half-face respirator (R6200), full-face respirator (RFF402), or Airline (RW2929).

See “Accessories” at the bottom of the page. If you're looking for work equipment, have a look at the following products: Facepiece for respiratory protection (RM307), 3M s-Series hood (RS655) and filter panel R256/02/01.

Texts colored green corresponds to hyperlinks leading to specific safety equipment or to a general information link.
