3M TR-600-ECK Versaflo extra powerful powered air purifying respirator

Versaflo TR-600 Kit – Powered respiratory protection for critical environments

3M manufacturer’s code: TR-600-ECK

3M complete TR-600-ECK Versaflo kit for respiratory protection by a powered air purifying respirator (PAPR). This piece of equipment gets its NIOSH homologation when assembled with the other components recognized by the manufacturer as part of a complete system. It is recommended for workers in need of respiratory protection in the health, food and pharmaceutical sectors. Compatible with 3M series TR-600 filters and cartridges. One kit per case. Please allow 2 to 3 weeks for delivery.

3M TR-600 Versaflo is a new generation powered air purifying respirator which offers a perfect balance between protection and comfort. It combines components which protect not only one’s respiratory tract but also one’s eyes and face. The kit includes, among others, a standard nominal capacity battery, which provides 4 to 12 hours of run time and many accessories.

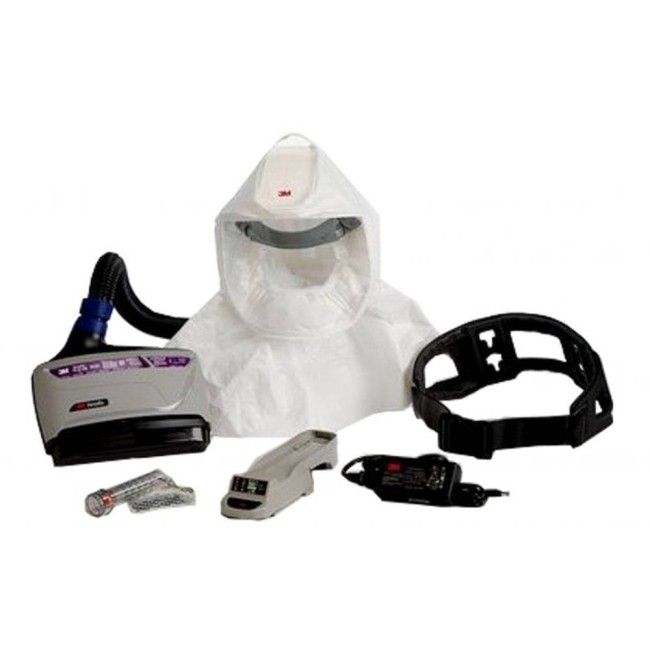

Included in the kit:

- 1 Powered air purifying respirator unit (RVTR602N)

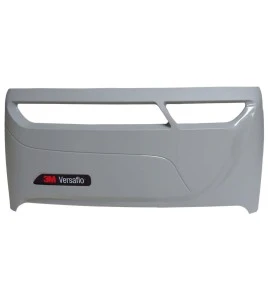

- 1 Filter cover (RVTR6700FC)

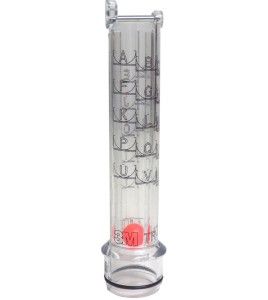

- 1 Airflow indicator (RVTR971)

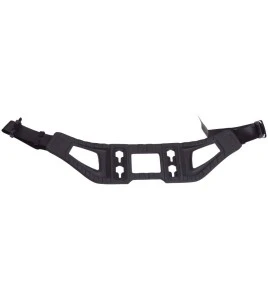

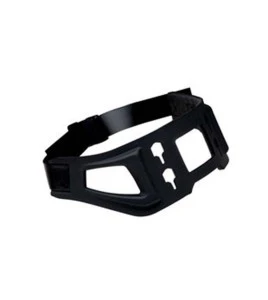

- 1 Easy clean polyurethane, EVA and neoprene belt (RVTR627)

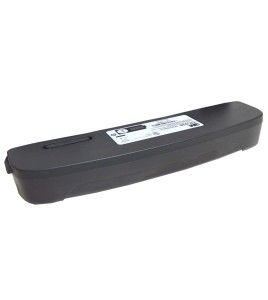

- 1 Standard capacity lithium ion battery; Run time of 4 to 12 hours (RVTR630)

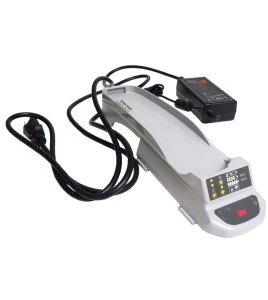

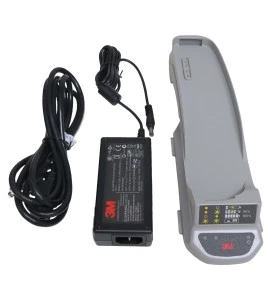

- 1 Single station battery charger kit (RVTR641N)

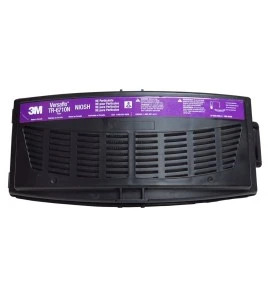

- 1 High efficiency (HE) particulate filter (RVTR6710N)
- 1 Respiratory hood (RBS/433L)

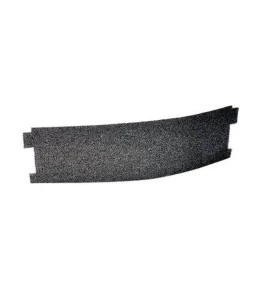

- 2 Prefilters (RVTR6600)

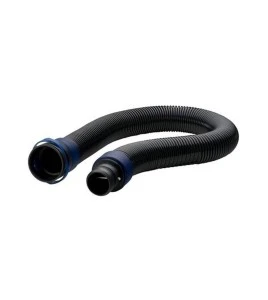

- 1 Heavy-duty polyurethane breathing tube; Length: 525 to 850 mm (RBT30)
- 1 Disposable breathing tube cover (RW3228)

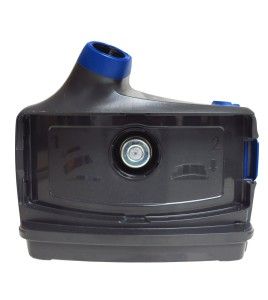

3M RVTR602N Versaflo powered air-purifying respirator unit features

PAPRs, powered air-purifying respirators are systems made to blow filtered air into the respiratory equipment, which provides air automatically rather than mechanically, such as regular respirators. The 3M RVTR602N motor/blower paired with 3M RBS/433L face piece differs from other PAPRs by its lightness, its ergonomics and its versatility, which allows everyone, even bearded men, to be protected when well installed. This type of equipment offers protection up to 1000 times the permissible exposure limit set by the CNESST or any other government regulation applicable. PAPRs minimize the effort put into breathing and can reduce build up heat inside the face piece. It features a smart engine which adapts accordingly to the filters in use. It is also equipped with an alarm system - one audible and one LED – which alert the user to either a low battery or low airflow. The powered unit has three airflow settings: standard, medium and high flow. The engine starts automatically at the standard flow and the user can change the settings afterwards accordingly to his needs. This powered unit allows one to use a combined filter/cartridge, which means it’s more powerful than previous equipment. Please note that this equipment is not intrinsically safe. This PAPR contains no natural rubber latex.

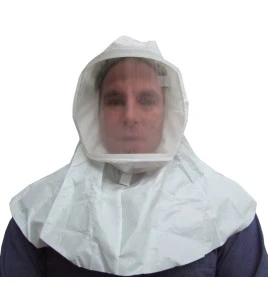

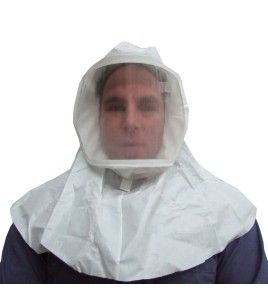

RBS/433L Face Piece Features

This hood is disposable and is equipped with a reassembled and integrated head harness for a ready-to-use product. The textile part is made of laminated polypropylene, that is, a light and abrasion resistant material. Moreover, the S-series lens low curvature offers an excellent field of vision and reduces annoying reflections and glare. Finally, this hood allows for an optimal air distribution, which minimizes whistling noises for greater comfort and noise reduction.

Use 3M Complete TR-600-ECK Versaflo Kit

This type of respiratory protection system is recommended for work that will loosen solid particles, vapors and gases in the air such as work in health facilities, food factories and pharmaceutical laboratories. The face piece is disposable, which is safer for users being exposed to substances that may stay on the textile surface, thus contaminating users if they had to wash the face piece.

Do Not Use 3M Complete TR-600-ECK Versaflo Kit

It can neither ensure the user’s intrinsic safety in an environment representing an explosion risk. It is strongly discouraged to wear any kind of respirator for application with sandblasting. It is also highly advised to stay away from environments that exceed 1000 times the permissible exposure limit set by the CNESST or any other government regulation applicable. One should never use a respirator in an oxygen-deprived environment (an atmosphere with less than 19,5 % oxygen).

Maintenance and Service Life 3M Complete TR-600-ECK Versaflo Kit

For safer performance, the manufacturer’s recommendations must be followed. 3M recommends an inspection of the respiratory equipment before each use; to wash the respirator after each use; and to store the respirator back to its packaging.

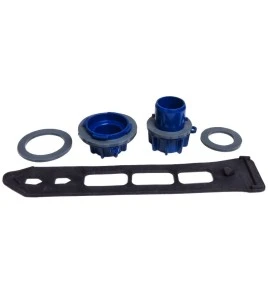

One should never wash its respirator with any type of solvent, since they can weaken some components, which can affect the efficiency of the equipment. Filtering elements must never be immersed in water. The motor/blower and the battery can now be immersed if equipped with the RVTR653 cleaning and storage kit.

FAQ – Versaflo TR-600 Kit

What is the battery life of the TR-600 respirator (battery, autonomy, recharge)?

The kit includes a high-capacity TR-632 battery offering up to 12 to 13 hours of autonomy, depending on usage conditions and filtration level.

Is this system suitable for food-processing environments (food industry, hygiene and compatibility)?

Yes, the TR-600 is designed for sensitive environments like food processing, thanks to its smooth, easy-to-clean design with no exposed textile components.

What types of filters are compatible with the TR-600 (filters, HEPA, particles)?

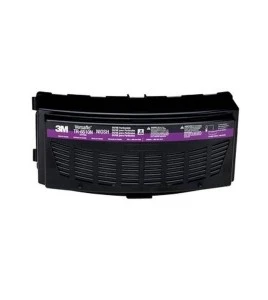

The system uses HEPA TR-6710N filters for solid and liquid particles, with options to add profilers and chemical cartridges based on specific needs.

Additional suggestions for the Versaflo TR-600 powered air-purifying respirator

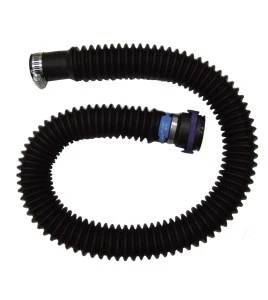

S series extendable hose (RBT30), HEPA filter for air purification respirator (RVTR6710N), motor unit for respiratory protection (RVTR614N), face piece for respiratory system (RM307) and rechargeable lithium-ion battery (RVTR630).

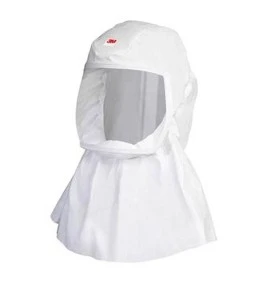

Under “Accessories” at the bottom of the page. If you are looking for work equipment, check out the following products:  3M M Series White Hood for Versaflo Respiratory Protection System (RM976), 3M S Series White Hood M/L for Respiratory Protection System (RBS/433L/5).
