Hood and hard hat assembly 3M Versaflo S-867

Hood and hard hat assembly 3M Versaflo S-867

3M manufacturer code: 7100307879, model S-867

This item is not kept in stock. Please allow 16 days for delivery.

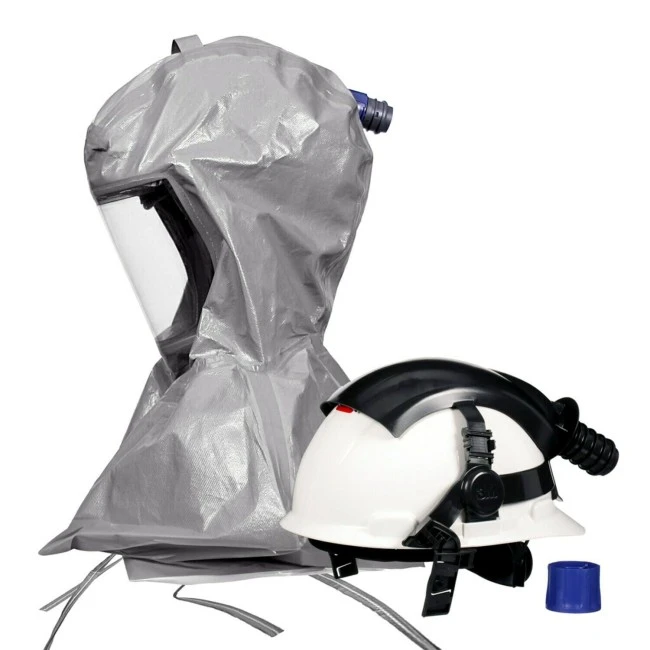

The 3M Versaflo S-867 assembly prepares a sealed seam hood configuration on a protective hard hat. The S-807 inner shroud hood comes with the S-960 adapter and H-701SFR-UV hard hat for painting, cleaning or assembly stations. The hood uses Zytron 200 fabric and an acetate visor. These contents do not form a standalone respirator; an approved tube and air supply must be selected to build the complete system suited to the workstation.

Features and benefits of the hard hat assembly

• S-807 sealed seam hood with inner shroud is included.
• Zytron 200 fabric forms the inner shroud hood.
• Acetate visor and fluid resistance under ASTM F1862.
• S-960 adapter and white H-701SFR-UV hard hat with ratchet and UV indicator are supplied together.
• Hard hat assembly provides impact protection within the intended configuration, without electrical protection.

Applications in painting and industrial cleaning

Painting and cleaning in transportation shops, general manufacturing assembly and certain pharmaceutical or chemical stations are contexts to assess. Hood fluid resistance does not replace assessment of the material being handled. Choose the system air supply and any filtration according to contaminants while retaining the hard hat assembly limitations.

Compatibility, suspension and configurations

The S-867 contents combine the S-807 hood, S-960 adapter and H-701SFR-UV hard hat. This hard hat assembly differs from an S-950 suspension assembly. Do not combine the supports. Add a tube and air supply approved for this combination. Respiratory approval concerns the complete assembled system.

Installation and adjustment

Fit the S-960 adapter and hood to the hard hat according to 3M instructions. Wear the brim facing backwards. Adjust the ratchet and check inner shroud positioning and connections before system tests. Do not add hard hat accessories not approved with S-960.

Use limitations

Do not use this system in atmospheres containing less than 19.5% oxygen, with unknown contaminant concentrations, or that are immediately dangerous to life or health (IDLH). The hood does not filter air. This assembly provides no electrical hazard protection and is not intended for high heat, flames or sparks. ASTM F1862 concerns fluid resistance rather than every chemical. NIOSH applies to the complete respiratory combination. ANSI/ISEA Z89.1-2014, Type I and CSA Z94.1-15, Type I concern H-700 hard hat impact protection in the described assembly.

Care, storage and replacement

Inspect the hood and seams, visor, adapter and hard hat before assembly. Replace the S-807 if soiled or damaged, then examine reusable elements before refitting them. Clean those elements according to their component instructions. Store clean parts so connection surfaces remain protected. S-series hoods contain no natural rubber latex.

FAQ: the S-867 hood and hard hat assembly

Which parts are included in the S-867?

The S-807 hood, S-960 adapter and H-701SFR-UV hard hat. Select the tube and air supply separately.

Is the hood fabric Zytron 200?

Yes, Zytron 200 identifies the S-807 fabric in this assembly. The visor is acetate.

Must I also buy S-950 suspension?

The S-867 uses the S-960 adapter with the H-701SFR-UV hard hat. S-950 suspension belongs to another assembly and must not be combined with this one.

Can I retain the hard hat assembly for electrical tasks?

The hood and S-960 adapter assembly with the H-700 hard hat provides no electrical hazard protection.

Can only the textile be replaced?

Replace the S-807 hood when soiled or damaged. Also check the hard hat and adapter before reassembly.

Complementary suggestions

For a worker preparing the hood and hard hat assembly after a winter delivery, plan PVC coated ParaActiv Pro winter gloves (GSCXTAPVC) for cold handling. Nemesis glasses (YA3300) with blue mirror lenses serve outdoors outside the hood. A Delta Plus chinstrap (TA14CS) remains reserved for the separate helmet specified for independent tasks. The black 7 in 1 winter coat (VV54) serves receiving work, and black and yellow anti-slip tape (ECT749) marks the passage.

To renew the textile, the bag (RS807) of 5 hoods matches the supplied S-807. When changing configuration, the hood (RS857) assembly uses the same hood on suspension, OR the hard hat (RS665) assembly uses the inner collar hood (RS605). The industrial (RVTR300NIHK) kit is another configuration with a hard hat and powered air supply, to be selected as a separate assembly. The S-867 replacement support remains the S-960.
