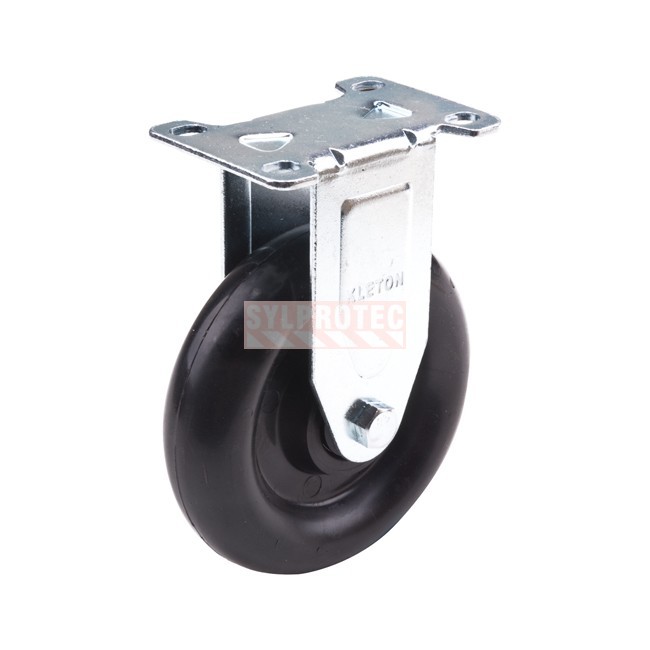

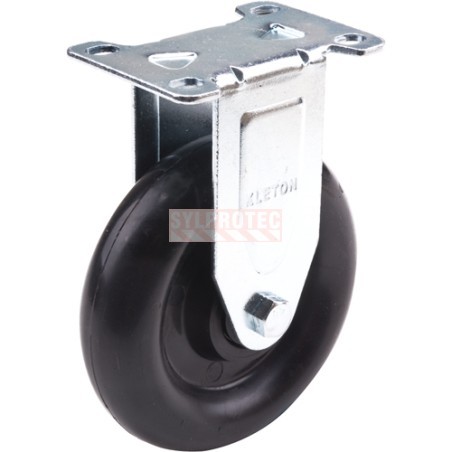

Kleton 5 in polyolefin plate caster, 250 lb

Kleton 5 in polyolefin plate caster, 250 lb

Manufacturer code Kleton: ML396, model ML396

This item is not kept in stock. Please allow 15 days for delivery.

Available in 2 types. Select the variant you need from the drop-down menu.

The Kleton plate caster carries a 5 in (127 mm) polyolefin wheel with a 1-1/4 in tread on a steel rig. It is offered as a rigid (ML396) or swivel (ML395) version, with the same wheel, the same plate and the same 250 lb (113 kg) capacity per caster. The 2-5/8 X 3-3/4 in plate has 5/16 in bolt holes on a 2-3/4 X 1-3/4 in spacing, and the overall height is 6-1/8 in. The wheel is non-marking, steam cleanable, offers high impact strength and resists most oils, chemicals, grease and acids. It rolls on concrete, brick, carpet and steel. Made in China, it is sold individually and covered by a 1-year limited warranty.

Features of the Kleton plate caster

• 5 in polyolefin wheel, 1-1/4 in tread, steel rig
• Rigid or swivel version
• 250 lb (113 kg) capacity per caster
• 2-5/8 X 3-3/4 in plate, 5/16 in bolt holes on 2-3/4 X 1-3/4 in spacing
• Non-marking, steam cleanable, resists oils and chemicals

Applications of the Kleton plate caster

The manufacturer intends these casters for food service equipment, mobile warehouse equipment, plants and demanding environments. They roll on concrete, brick, carpet and steel. To make equipment easy to steer, swivel and rigid casters are often combined.

Care of the Kleton plate caster

Clean with soapy water or steam. Periodically check that the plate bolts are tight and remove debris wrapped around the axle. Do not exceed 250 lb per caster.

FAQ: the Kleton plate caster

How much weight does each caster support?

250 lb (113 kg) per caster, in both the rigid and the swivel version.

What is the difference between the ML396 and the ML395?

The ML396 is rigid and the ML395 is a swivel caster; the wheel, the plate and the capacity are identical.

What are the mounting plate dimensions?

2-5/8 X 3-3/4 in, with 5/16 in bolt holes on a 2-3/4 X 1-3/4 in spacing. Overall height is 6-1/8 in.

Which floors can it be used on?

On concrete, brick, carpet and steel; the wheel is non-marking.

Does it replace the casters of the Kleton 30 X 48 in platform truck?

No. That truck uses 6 in high-temperature nylon casters; these 5 in polyolefin casters are not its replacement casters.
