Thermostatic valve, 8 Usgpm to 30 psi.
search
  • Thermostatic valve, 8 Usgpm to 30 psi.
Bradley

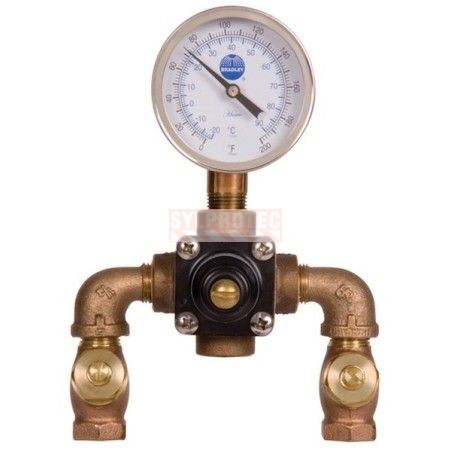

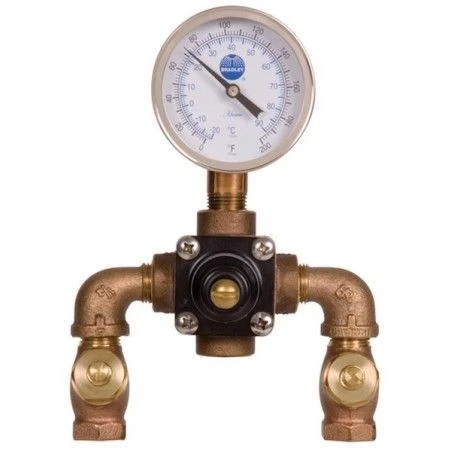

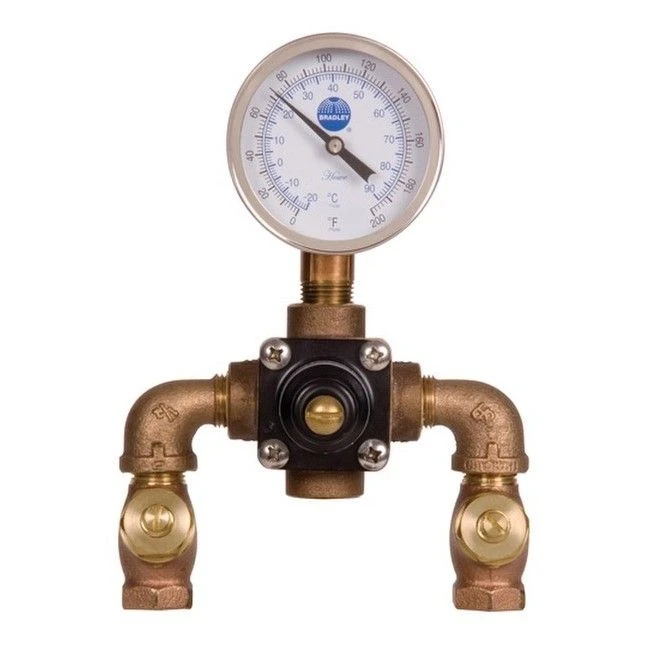

Thermostatic mixing valve, brass, 7 GPM (26.5 L/min) at 30 PSI, certified ANSI Z358.1-2009. For eye and face wash stations.

PD192000
$1,147.40
Quantity

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

Thermostatic mixing valve made of brass, allowing a flow of 7 US gallons/minute (GPM) at 30 pounds per square inch (PSI), corresponding to 26.5 liters/minute at 7 bars.

Certified ANSI Z358.1-2009, UPC, CPPC and CSA.

This thermostatic mixing valve is an essential device for controlling water temperature. It is sufficient for up to 3 eye wash stations or one eye/face wash station. Easy to install and to service.

  • The water outlet temperature is preset at 29°C (85°F).
  • The water outlet temperature may be adjusted from 18°C to 32°C (65°F to 90°F), with a precision of 1.7°C (3°F).
  • The recommended temperature range for the hot water inlet is 49°C to 60°C (120°F to140°F).
  • The maximum allowed temperature for the hot water inlet is 82°C (180°F).
  • The hot water inlet must always be at least 11°C (20°F) warmer than the outlet temperature of the valve.
  • The recommended temperature range for the cold water inlet is 0.6°C to 26.7°C (33°F to 80°F).

This valve includes a liquid thermostat and has a single valve design. The valve will automatically block the hot water supply if the cold water supply is lost. A built-in cold water bypass system ensures cold water flow.

The thermostatic mixing valve is equipped with a dial thermometer with Celsius and Fahrenheit scales. The valve has a roughened brass finish, resistant to dirt and scale.

Discover brass thermostatic valve, an essential solution for ensuring the safety and comfort of eyewash and face wash users.

Designed to maintain a constant water temperature at 7 GPM (26.5 L/min) at 30 PSI, this valve meets the strict ANSI Z358.1-2009 standards. It protects users from dangerous temperature fluctuations, ensuring safe and efficient use in emergencies. Made of durable brass, this valve is a reliable and high-quality choice for all work environments requiring quick and secure decontamination.

Make safety a priority.

Peculiarities of:
Brass thermostatic valve stands out for its ability to maintain a consistent water temperature, ensuring safety and comfort for users during emergencies. Its robust and durable brass design makes it a reliable choice for work environments requiring quick and efficient decontamination while meeting the highest standards.

Application:
To use a brass thermostatic valve, ensure it is properly installed on your eyewash or face wash system, following the provided installation guidelines. During emergency use, the valve automatically regulates the water temperature to maintain a constant and safe flow, thus providing optimal protection for users.

Maintenance and service life:
To maintain a brass thermostatic valve, regularly check it to ensure it is functioning properly. Clean the components and fittings to prevent the buildup of deposits or rust. It is also crucial to verify the water temperature regulation to ensure it remains consistent and safe. If any malfunctions or damaged parts are found, replace them immediately to maintain optimal performance.

Suggestions:
Do you need additional safety equipment? Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).

Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210), safety glasses (YASF401).

Texts colored green correspond to hyperlinks leading to specific safety equipment or general information.

PD192000

Data sheet

Type of product
Safety equipment
Main category
First aid and emergency showers
Sub category
Emergency showers
Sub sub category
Accessories & spare parts for emergency showers
Name of the product
Thermostatic mixing valve
Product code
PD192000
Sort by keywords
Thermostatic valves
ANSI Requirements
Compliance ANSI Z358.1-2009, UPC, CPPC and CSA
Manufacturer
Bradley
Features
Adjustable outlet water temperature
Includes
Dial Thermometer
Operating flow rate
7 US gallons/minute (GPM) at 30 (PSI), (26.5 liters/minute at 7 bar).
Out put temperature range
18°C et 32°C (65°F et 90°F)
Recommend inlet temperature
49°C à 60°C (120°F à 140°F)
Maximum hot water inlet temperature
82°C (180°F)
Temperature range cold water inlet
0.6°C à 26.7°C (33°F à 80°F)
Material
Brass
Length (in/cm)
10 in / 25.4 cm
Width (in/cm)
6 in / 15.24 cm
Height (in/cm)
7 in / 17.78 cm
Weight (lb/kg)
10 lb / 4.5 Kg
Sold by
Unit
Return conditions
No returnable
