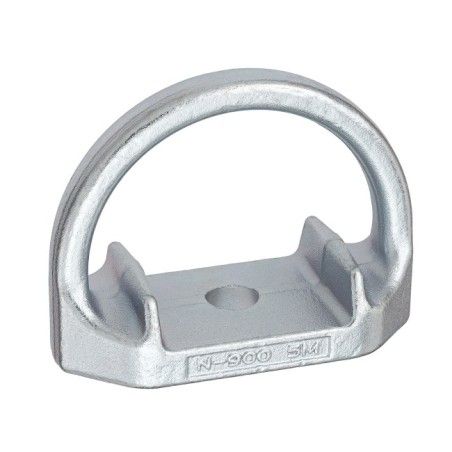

Steel anti rollout D-shaped anchorage made for the anchorage of fall protection equipment. The major concern of using this device is to reduce rollout possibilities. Bolt not included.
Peakworks product code: V8221111 or model: CP-10011-1
Width: 1 3/4 in (45 mm)
Length: 4 in (102 mm)
Size of the bolt: ½ in (12.7 mm)
This product can resist hostile environments with rough temperatures from -40°F to 130°F (-40°C to 54˚C).
This product meets the CSA Z259.15 and ANSI Z359.18 standards and OSHA requirements. This type of carabiner can support a force of 5000 lb (22 kN). For use by one person only. Maximum capacity 310 lbs. (140.6 Kg), including clothing ans tools.
The worker is responsible for visually inspecting his equipment before each use. During this routine inspection, the worker must note any signs of degradation, malfunction, or breakage. The carabiner will have to be replaced if any such signs are detected.
On top of this routine inspection, the anchor must be inspected by a qualified person different than the worker. The frequency of these inspections varies according to the manufacturer. Some manufacturers require an inspection every 90 days, others every 180 days, or even yearly. These inspections should be performed more often if your equipment is used in extreme environmental working conditions.
Sylprotec offers a fall protection equipment inspection service. Find out more by clicking on the Services tab, under the Sylprotec logo at the top of the page.
Any equipment that has withstood a fall or an impact must be scrapped.
To complete your fall protection you will find a range of harness, lanyards and self-retracting lanyards. Some products are suggested under the "accessories" tab at the bottom of this page.
Other equipment frequently used with this safety harness:
Safety glasses YA12E91001
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28B Traffic Cones
Peakworks FPBAG storage bag
The FPL9901 Tool Strap
The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
|Type of product||Safety equipment|
|Main category||Personal protection|
|Sub category||Fall protection|
|Sub sub category||Anchorage & connectors|
|Name of the product||Fixed anchor connection|
|Approved/Certified||Complies with CSA Z259.15-17 and ANSI Z359.1-2007 standards|
|Country of origin||China|
|Reusable||Reusable with careful inspection and proper installation|
|Features||Equipped with a metal mooring with a D shape that reduces the possibility of stalling|
|Characteristic adding safety||Designed to withstand static forces of 5000 lbs (22 KN)|
|Operating temperature||-40°F à 130°F / -40°C à 54˚C|
|Washable||Hand wash with warm water and soap|
|Length (in/cm)||5 in / 12.7 cm|
|Width (in/cm)||3 in / 7.6 cm|
|Height (in/cm)||1 in / 2.54 cm|
|Weight (lb/kg)||1.5 lb / 0.7 Kg|
|Return conditions||No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page|
|Caution||Mounting bolts not included|
