Confined Space Kit Tripod, 3-Way 60 ft (18 m) SRL & Winch 65 ft

Peakworks Complete Confined Space Kit — 3-Way SRL 60 ft & Man/Material Winch 65 ft (CSK3-60)

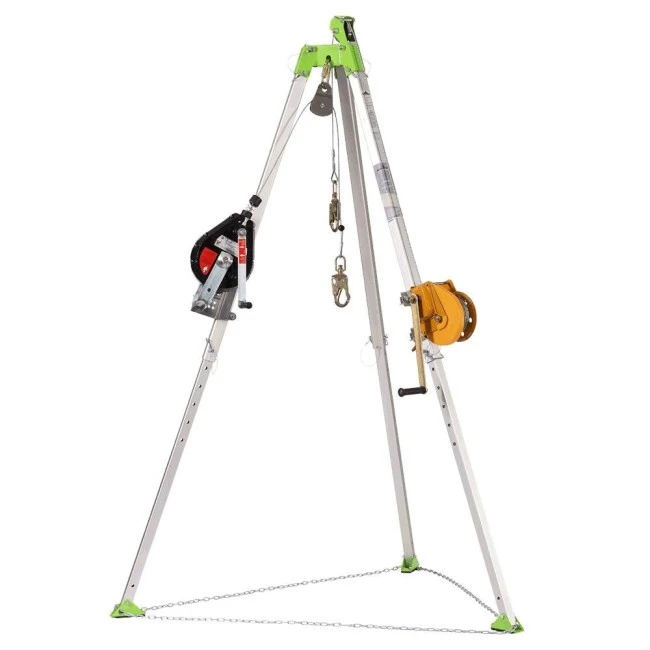

The Peakworks CSK3-60 is the most complete configuration in the confined space kit lineup, combining in a single assembly the 7 ft (2 m) aluminum tripod, the Type 3 SRL V845534060 (SRL-73303-60) with a 60 ft (18 m) galvanized steel cable, and the V84537065 (MW-65G) man/material winch with a 65 ft (19.8 m) galvanized steel cable. This 3-in-1 configuration simultaneously covers worker fall protection, assisted recovery (4:1 mechanical advantage), and material handling in the confined space — all without mixing components from different manufacturers or validating cross-compatibility. The SRL mounting bracket is factory-installed before shipping.

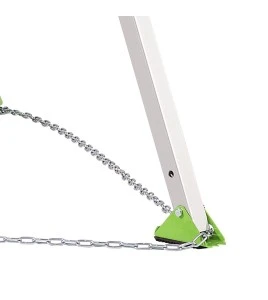

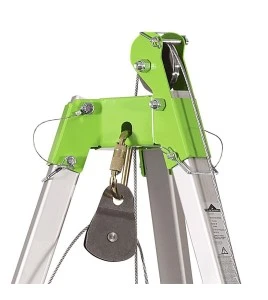

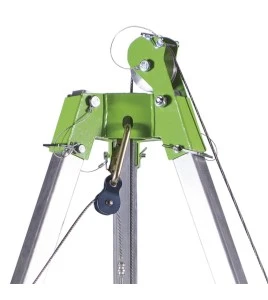

The Peakworks series aluminum tripod serves as the central anchor point for the entire system. Its adjustable and lockable legs adapt to every installation surface found on industrial job sites: raised manhole frames, irregular concrete floors, lightly sloped roadways, or dock floors. Non-slip rubber safety feet prevent any lateral movement under load. The steel head features a safety chain and two independent anchor points, allowing simultaneous connection of the SRL and the winch without mechanical interference between the two devices.

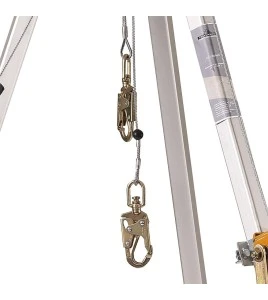

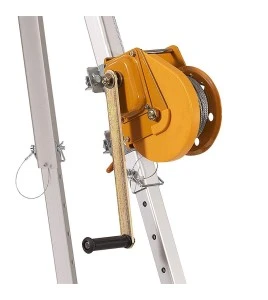

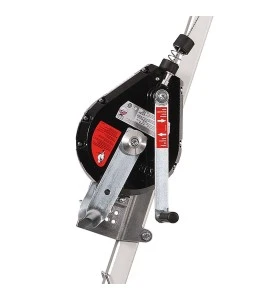

The Type 3 SRL (CSA Z259.2.2) delivers both instant fall arrest and an assisted recovery function with a 4:1 mechanical advantage. The average retrieval speed of 25 ft (7.6 m) per minute ensures rapid extraction in an emergency. The MW-65G winch provides controlled lowering and raising of materials up to 151 kg (310 lb) over a depth of 65 ft (19.8 m). It mounts via a back plate with four bolts, with carabiner and split pulley included. Both devices operate in parallel: the SRL protects the person, the winch manages the materials.

High-strength aluminum for the tripod structure and stainless steel for friction-bearing components combine structural lightness with corrosion resistance. The CSK3-60 is rated for operating temperatures from −35°C to +35°C, covering all working seasons across northern Canadian provinces and cold temperate regions.

Advantages of the CSK3-60 — Maximum Protection in Confined Spaces

All-in-One Kit: No Safety Compromises

By choosing the CSK3-60, you eliminate the risk of combining incompatible components. The tripod, Type 3 SRL, and winch are jointly tested and certified by Peakworks. You benefit from simplified OHS documentation and a single source for warranty and after-sales service.

Simultaneous Dual Protection — Fall Arrest + Material Handling

The 3-way configuration allows simultaneous connection of the SRL for worker protection and the winch for material management. This parallel operation is essential in complex inspection and maintenance operations where the worker must lower heavy equipment while remaining protected against falls.

Industries and Work Sites Where This Product Is Required

• Municipalities — routine inspection and maintenance of deep manholes requiring equipment lowering
• Oil and gas — emergency retrieval and material handling inside tanks and separators
• Chemical and petrochemical — maintenance work in reactors and buried mixing tanks
• Water treatment — pump replacement and complex interventions in wet wells
• Civil engineering — deep wells and caissons requiring simultaneous protection and material handling
• Mining — underground operations combining worker protection and tool lowering
• Food processing — silo or tank cleaning with heavy equipment and protected personnel
• Utilities (electrical, telecommunications) — maintenance in complex underground vaults

Installation, Use, and Inspection of the CSK3-60 Kit

Before each deployment, inspect the tripod (legs, locking, feet), safety chain, both head anchor points, the SRL (galvanized cable, retraction mechanism, shock indicator, mounting bracket), and the winch (wire rope, brake, swivel hook, back plate bolts). Position the tripod over the opening and lock all legs. Connect the SRL to the first anchor point and the winch to the second. Verify independent operation of both devices before beginning the operation. Ensure a qualified attendant is stationed outside at all times. Per CSA Z1006, documented annual inspection by a qualified competent person is mandatory. Final sale — non-returnable product.

FAQ — Peakworks Complete Confined Space Kit CSK3-60

What is the difference between the CSK3-60 and the CSK1-60?

The CSK1-60 (FPLRK1) includes the tripod and the 60 ft Type 3 SRL only — ideal when the sole priority is fall arrest and emergency worker retrieval. The CSK3-60 (FPLRK3) adds the MW-65G man/material winch, enabling material lowering and raising in addition to personnel protection. It is the recommended configuration when the operation involves both personnel and heavy equipment simultaneously.

Can the SRL and winch be connected to the tripod at the same time?

Yes. The Peakworks tripod steel head is designed with two independent anchor points, allowing simultaneous connection of the SRL and the winch without mechanical interference between the two devices. This 3-way configuration is the core design feature of the CSK3-60.

What exact standards does the CSK3-60 meet?

The CSK3-60 kit meets and exceeds OSHA, CE, ANSI A10.14, CSA Z359.1, and CSA Z259.2.2 Type 3 standards. CSA Z259.2.2 Type 3 is the most specific Canadian standard for confined space rescue SRLs; it requires the assisted retrieval capability (4:1 mechanical advantage) that this kit provides.

Complementary equipment suggestions for your confined space system

To optimize your confined space protection, see the 3-way tripod and SRL 60 ft confined space kit (FPLRK1), the confined space kit with man/material winch 65 ft (FPLRK2), the davit 3-way 60 ft system for offset access with winch (FPLRK4), the standalone Peakworks tripod 7 ft (2 m) with chain and pulley (FPLRKT) and the Peakworks confined space Y-yoke lanyard (FPLRKL).

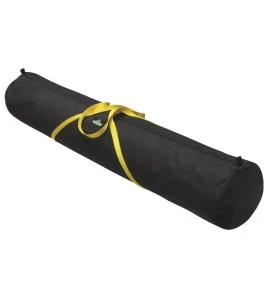

Under "Accessories" at the bottom of the page, complete your setup with the DBI-SALA 3M tripod base mount support (FPLR8005048), the DBI-SALA 3M Advanced carry bag for 7 ft tripod (FPLR9503094) and the larger DBI-SALA 3M carry bag size for 9 ft tripod (FPLR9503095).
