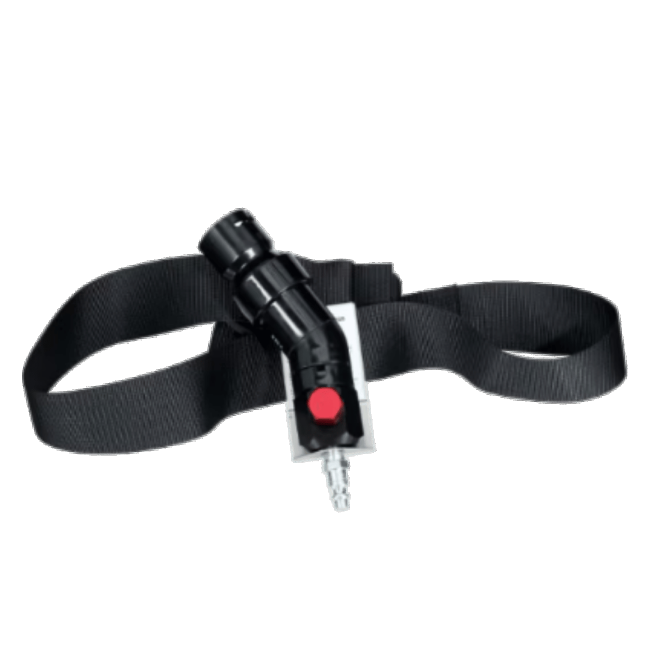

Versaflo air control valve assembly (V300) for R256-02-01 100ft/m3 filter panel. Sold individually.

3M Versaflo V300 Air Regulation Assembly for R256-02-01 Filtration Panels

Manufacturer's code: 7100331615

The 3M brand V-300 high-pressure air regulating valve assembly allows the worker to adjust the airflow to the most comfortable level, improving comfort and productivity. It is a regulator only, and does not heat or cool the air delivered to the worker.  The valve is lightweight and easy to wear, minimizing fatigue during long periods of use.

Airflow swings can cause fogging, overheating, or breathing fatigue. The V300 lets the operator adjust pressure in seconds, stabilizing the air stream and improving vigilance in confined or contaminated zones. The integrated belt relieves hose pull and keeps the control knob within reach.

Important point:

• Allows airflow to be set at the most comfortable level
• High pressure
• Includes valve and belt

NIOSH-approved for type C and CE supplied-air systems, the V300 mounts on the 3M R256-02-01 filtration panel or any compliant high-pressure network. It connects to Versaflo headtops, 6000/FF-400 full facepieces, and Series S hoods. To align your other components, visit the Powered and Supplied-Air Respiratory Protection category.

Special features:

Very useful in stripping, mechanical assembly, painting, metal repair and cleaning.

To use the 3M™ Versaflo™ V-300/37019 Air Valve Regulator Set, follow these simple steps:

1. Installation : Fasten the abdominal belt around your waist and make sure it fits snugly. Connect the valve to your air supply system (e.g. compressed air hose or ventilation system).
2. Adjusting airflow : Turn the valve adjustment knob to increase or reduce air flow. Find the level that best suits your comfort and work requirements.
3. Check: Make sure that air is circulating correctly through the valve. Also check that the lap belt is securely fastened and does not slip during use.

Restriction:

Replace worn or damaged parts.

Required supply pressure by hose length:

• 25 to 100 ft (7.6 to 30.5 m): 30 to 35 psig (2.1 to 2.5 kg/cm²)
• 125 to 200 ft (38.1 to 61.0 m): 33 to 50 psig (2.3 to 3.5 kg/cm²)
• 225 to 300 ft (68.6 to 91.4 m): 38 to 63 psig (2.7 to 4.4 kg/cm²)

Maintenance and service life:

Clean the valve and lap belt regularly in accordance with the manufacturer's instructions.

Don't forget to consult the user manual specific to your model for detailed instructions.

FAQ about the Versaflo V300 air regulator

Why choose a V300 instead of a standard valve?

The V300 keeps airflow steady even when supply pressure fluctuates, preventing the spikes or drops workers feel inside the facepiece.

Can this model heat or cool the air?

No. It only adjusts airflow; heating or cooling requires the dedicated 3M thermal accessories.

Is the belt really necessary?

Yes. It stabilizes the regulator, limits hose pull, and lets workers fine-tune the airflow without removing their gloves, which improves overall safety.

Need additional safety equipment?

3M 256-02-01 compressed-air filtration and control panel (R256/02/01), replacement filter 523-01-29 (R523/01/29), calibration kit for compressed-air panel (R529/04/49), air-supply adapter 100 cfm (R529/04/50), Versaflo TR-600 single-station smart charger (RVTR641), Versaflo TR-600 four-station smart charger (RVTR644), high-capacity Versaflo TR-600 battery (RVTR632), reinforced Versaflo TR-600 belt (RVTR626), and Series S hood for Versaflo systems (RS133L).
