PD19200B

Faucet eyewash station for laboratories, certified ANSI Z358.1-2009.

$110.00

Return conditions : No returnable

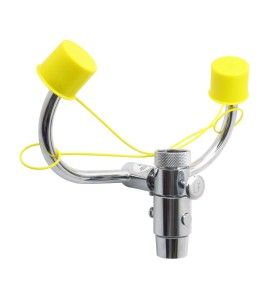

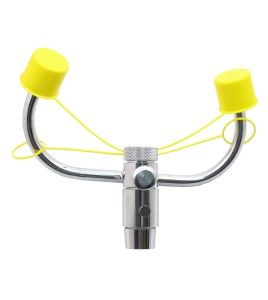

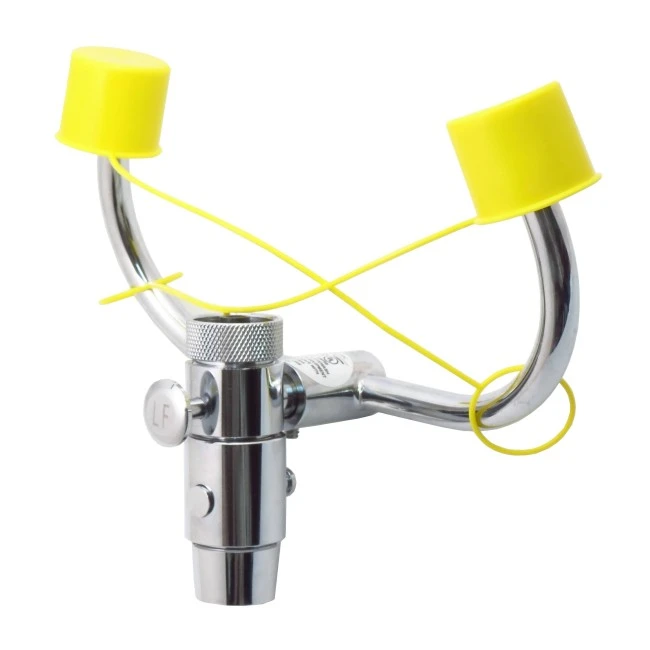

Bradley faucet eyewash station for laboratories (S19-200B).

Certified ANSI Z358.1-2009. Minimum flow exceeds 0.4 GPM at 30 PSI. Does not include an automated temperature control device.

Economical, practical kit for laboratories and medical facilities. Easy to use in case of emergency.

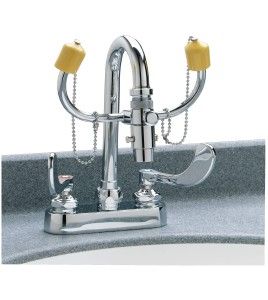

Can be installed on most standard faucets, turning them into eyewash stations as soon as needed. The eyewash can be activated in one step by pulling on the central pin. The mechanism automatically returns to the faucet position when closed.
This eyewash station ensures a safe, steady flow of water, even if the water supply pressure varies between 30 and 90 PSI.

The pipes are made of chrome-plated brass with a mirror finish, with two yellow highly visible plastic caps for the sprayheads.

The kit includes:

  • 2 yellow dust caps
  • 1 yoke assembly with two sprayheads
  • 1 Allen wrench
  • 1 set screw
  • 1 diverter assembly with male 55/64” x 27 thread
  • 1 threaded adapter kit:
      - 1 adapter from 15/16” x 27 thread (male) to 55/64” x 27 thread (male)
      - 1 adapter from 13/16” x 27 thread (male) to 55/64” x 27 thread (male)
  • 1 shutoff
  • 1 gasket kit
  • 1 sign to indicate the location of the emergency eyewash
  • 1 inspection tag ( english only )
  • 3 instruction booklets (English, French, Spanish). Also available as PDF document, see Download tab.

Warning: This device does not include a thermostatic valve, therefore there is no automated water temperature control.
Eye injuries may be aggravated if hot water is used when rinsing.

The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).

Type of product Safety equipment
Main category First aid and emergency showers
Sub category Emergency showers
Sub sub category Eyewash & face wash stations
Name of the product Faucet eyewash station for laboratories
Product code PD19200B
ANSI Requirements Compliance ANSI Z358.1-2009
Manufacturer Bradley
Includes Kit contains all necessary adapters and parts for easy installation on most faucets
Features This device does not include a thermostatic valve, therefore there is no automated water temperature control
Type of emergency Eye wash
Installation specifications Can be installed on most standard faucets, turning them into eyewash stations as soon as needed
Activation type The eyewash can be activated in one step by pulling on the central pin
Operating flow rate Minimum flow exceeds 0.4 GPM (1.5 L/min) at 30 PSI
Material1 The pipes are made of chrome-plated brass with a mirror finish
Material2 Two highly visible yellow plastic covers
Height (in/cm) 4.5 in / 11.4 cm
Length (in/cm) 10 in / 25.4 cm
Width (in/cm) 2 in / 5.08 cm
Weight (lb/kg) 1.1 lbs / 0.49 Kg
Sold by Unit
Return conditions No returnable
