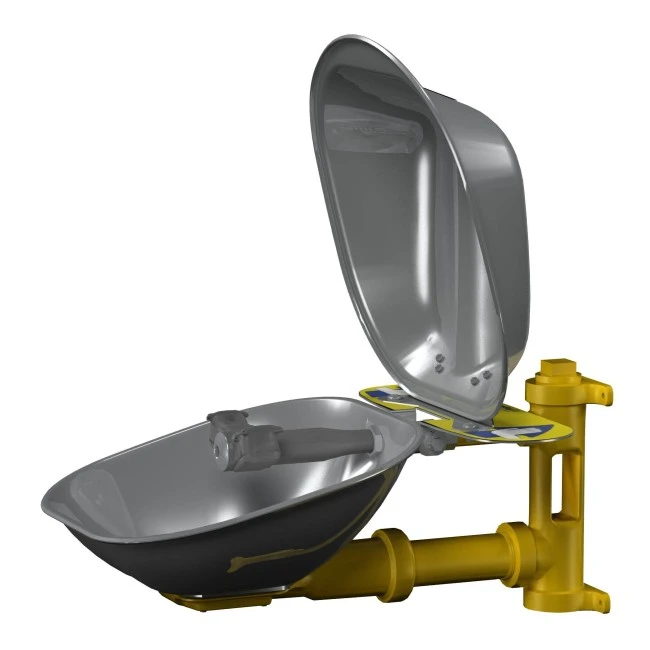

Bradley wall-mounted Halo eye wash station (S19224DC) with stainless steel bowl and hinged dust cover.
Certified ANSI Z358.1-2009. Minimum flow exceeds 0.4 GPM (1.5 L/min). Does not include a device for controlling water temperature.
Ideal for laboratories, medical facilities, industries, workshops, and any other places where workers risk being exposed to dusts, particulates or dangerous materials.
This eye wash station is wall-mounted and keeps the floor area cleared. Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. The hinged dust cover tilts open at the same time as the handle moves. This eye wash station is also barrier-free, for use by people in wheelchairs.
The eye wash station has separate pipes for water intake and drain, and ensures a safe, steady flow of water, even if the water supply pressure varies between 30 and 90 PSI. The bowl is made of heavy-duty stainless steel. The sprayheads are equipped with strainers to filter water particulates, and with an antimicrobial protection. Pipes are made of galvanized steel protected by yellow Bradtec covering.
The kit included:
The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).
|Type of product||Safety equipment|
|Main category||First aid and emergency showers|
|Sub category||Emergency showers|
|Sub sub category||Eyewash & face wash stations|
|Name of the product||Eye wash|
|ANSI Requirements||Compliance ANSI Z358.1-2009|
|Features||This device does not include a thermostatic valve, therefore there is no automated water temperature control|
|Additional Features||The heads are equipped with filters to retain water particles and antimicrobial protection|
|Includes||Parts necessary for the installation of the eyewash station and the connection to a water supply (some parts are not supplied, see instructions)|
|Type of emergency||Eye wash|
|Installation specifications||This eyewash can be installed on a wall, without cluttering the floor|
|Activation type||Push on the large handle, leaving a user’s hands free once turned on. The hinged dust cover tilts open at the same time as the handle moves. This eye wash station is also barrier-free, for use by people in wheelchairs.|
|Operating flow rate||Minimum flow exceeds 0.4 GPM (1.5 L/min) at 30 PSI|
|Material1||The bowl is made of strong and resistant stainless steel. The piping is made of galvanized steel protected by the yellow Bradtect coating|
|Length (in/cm)||24 in / 60.9 cm|
|Width (in/cm)||24 in / 60.9 cm|
|Height (in/cm)||24 in / 61 cm|
|Weight (lb/kg)||10 lb / 4.5 Kg|
|Return conditions||No returnable|
