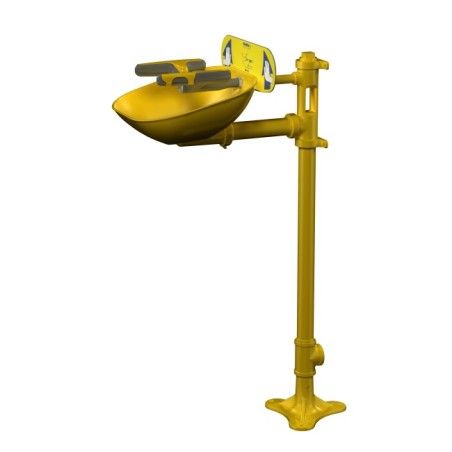

Bradley pedestal Halo eye wash / face with plastic bowl, certified ANSI Z358.1-2009.

Ensure the safety and well-being of your staff in case of an emergency with the Bradley Halo eye/face wash station pedestal.

Bradley pedestal Halo eye/face wash station (S19214FW), with a yellow plastic bowl.

Certified ANSI Z358.1-2009. Minimum flow exceeds 3.0 gpm (11.4 L/min). It does not include a device for controlling water temperature.

Ideal for laboratories, medical facilities, industries, workshops, garages, airports, food processing plants, paper mills, and any other places where workers risk being exposed to dust, particulates or dangerous materials.

This eye wash station is mounted on the floor and does not need to be placed close to walls. Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. Once activated, the wash station will stay on until manually turned off. The spray heads have a unique elongated design, with multiple water jets, that cover more area than traditional face wash spray heads and facilitate face rinsing. This eye/face wash station is also barrier-free, for use by people in wheelchairs.

The wash station has separate pipes for water intake and drain, and ensures a safe, steady flow of water, even if the water supply pressure varies between 30 and 90 PSI. The bowl is made of yellow impact-resistant plastic. The spray heads are equipped with strainers to filter water particulates, and with antimicrobial protection. Yellow and gray plastic covers protect the spray heads from dust. Pipes are made of galvanized steel protected by a yellow Bradtec covering.

The kit includes:

• Parts necessary for the installation of the wash station and the connection to a water supply (some parts are not supplied, see instructions).
• 1 universal safety sign to indicate the location of the emergency wash station
• 1 inspection tag
• 1 trilingual instruction booklet (English, French, Spanish). PDF version is also available, see below.

The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).

 Designed for maximum efficiency, this eyewash station features a robust and durable plastic bowl, meeting the stringent ANSI Z358.1-2009 standards. Its ergonomic design and ease of use make it an essential item for any industrial and commercial environment where safety is paramount. Let this high-quality eyewash station provide the protection your employees need in an emergency.

Make safety a priority.

Workplace safety and emergency eye and face rinsing

When an employee is exposed to contaminants affecting the eyes or face, rapid response is essential. This pedestal eye and face wash provides immediate access to emergency rinsing without relying on a wall-mounted installation. Its freestanding configuration is especially useful in large workshops, laboratories, and open work areas. Its multi-stream spray design covers a wider surface area than many traditional face wash models, making facial rinsing easier while also providing effective eye flushing.

Compliance standards and professional use

The PD19214FW model is ANSI Z358.1-2009 approved and provides a minimum flow rate greater than 3.0 GPM (11.4 L/min) at 30 PSI. It can be used in laboratories, medical environments, workshops, garages, airports, processing plants, paper mills, and other workspaces requiring compliant eye and face rinsing equipment. However, this model does not automatically control water temperature. The manufacturer therefore recommends adding a thermostatic valve to help maintain a proper flushing temperature during the minimum recommended 15-minute rinse period.

Technical specifications and added value

• Product code: PD19214FW
• Brand: Bradley
• Manufacturer model: S19214FW
• Type: pedestal eye and face wash
• Compliance: ANSI Z358.1-2009
• Minimum flow rate: greater than 3.0 GPM (11.4 L/min) at 30 PSI
• Compatible supply pressure: 30 to 90 PSI
• Activation: large handle allowing one-motion activation
• Operation: remains on until manually shut off
• Accessibility: usable by people in wheelchairs
• Spray heads: multi-stream design for wider facial coverage
• Spray head construction: filters to retain water particles and antimicrobial protection
• Bowl: yellow impact-resistant plastic
• Dust protection: yellow and grey plastic covers
• Piping: galvanized steel with yellow Bradtect coating
• Important feature: no automatic temperature control
• Key benefit: pedestal configuration for emergency eye and face rinsing in larger work areas

Professional use and operational efficiency

• Secure the unit firmly to the floor according to the manufacturer’s instructions.
• Connect the assembly to a compatible water supply.
• In an emergency, activate the unit by pushing the large handle.
• Position the eyes and face in the spray to begin rinsing immediately.
• Continue flushing according to applicable safety procedures and manually shut the unit off once the emergency response is complete.

Storage, maintenance, and service life

• Regularly inspect the spray heads, covers, bowl, and piping.
• Clean the nozzles and components to prevent residue buildup.
• Make sure the unit remains unobstructed and ready for use at all times.
• Periodically check the flow rate and overall condition of the system.
• Replace worn or damaged parts to maintain reliable operation.

FAQ about the PD19214FW eye and face wash

Is this unit suitable for rinsing the face as well as the eyes?

Yes. Its multi-stream spray design provides wider coverage, making it easier to rinse the face while also effectively flushing the eyes.

Is this model suitable for large workshops and laboratories?

Yes. Its pedestal design makes it especially useful in larger work areas where installation should not be limited by wall proximity.

Does the unit stay on after activation?

Yes. According to the available information, it remains on until it is manually turned off.

Do you need additional safety equipment?

Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).

Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).

Texts colored green correspond to hyperlinks leading to specific safety equipment or general information.
