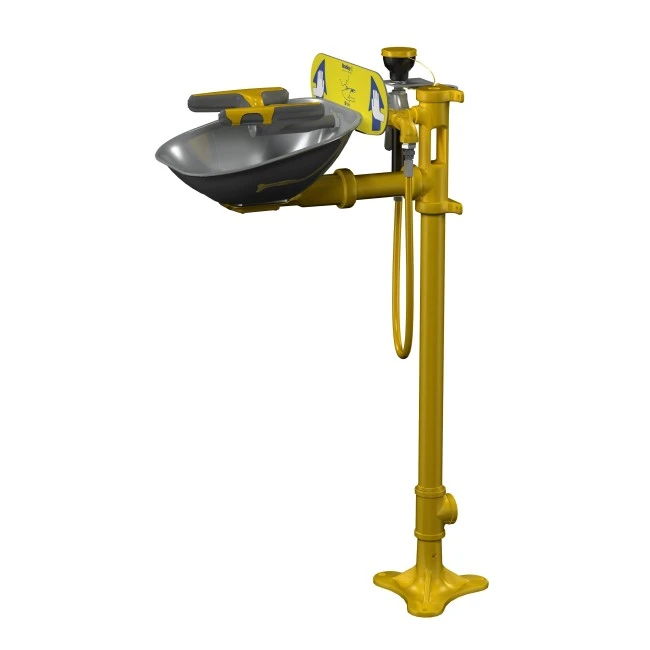

Bradley pedestal Halo eye wash with stainless steel bowl and handheld spray hose, certified ANSI Z358.1-2009.
search
  • Bradley pedestal Halo eye wash with stainless steel bowl and handheld spray hose, certified ANSI Z358.1-2009.
Bradley

Bradley pedestal Halo eye wash with stainless steel bowl and handheld spray hose, certified ANSI Z358.1-2009.

PD19214P
$1,146.45


Quantity

Compare
Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

Bradley pedestal Halo eye/face wash station (S19214P), with a stainless steel bowl and handheld spray hose.

Certified ANSI Z358.1-2009. Minimum flow exceeds 3.0 gpm (11.4 L/min). It does not include a device for controlling water temperature. The handheld spray hose is considered a supplement for the eye/face wash station and does not replace a full-body emergency shower.

Ideal for laboratories, medical facilities, industries, workshops, garages, airports, food processing plants, paper mills, and any other places where workers risk being exposed to dust, particulates or dangerous materials.

This eye wash station is mounted on the floor and does not need to be placed close to walls. Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. Once activated, the wash station will stay on until manually turned off. The spray heads have a unique elongated design, with multiple water jets, that cover more area than traditional face wash spray heads and facilitate face rinsing. The handheld 2.4 m (8 ft) spray hose allows to rinse the face and the body. This eye/face wash station is also barrier-free, for use by people in wheelchairs.

The wash station has separate pipes for water intake and drain, and ensures a safe, steady flow of water, even if the water supply pressure varies between 30 and 90 PSI. The bowl is made of stainless steel. The spray heads are equipped with strainers to filter water particulates, and with antimicrobial protection. Yellow and gray plastic caps protect the spray heads from dust. Pipes are made of galvanized steel protected by a yellow Bradtec covering.

The kit includes:

  • Parts necessary for the installation of the wash station and  the connection to a water supply (some parts are not supplied, see instructions).
  • 1 universal safety sign to indicate the location of the emergency wash station
  • 1 inspection tag
  • 1 trilingual instruction booklet (English, French, Spanish). PDF version is also available, see below.

The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).

Bradley's Halo Eye and Face Wash Station

Safeguard your eyes and face with Bradley's Halo Eye and Face Wash Station, an essential piece of equipment for all high-risk work environments. Featuring a durable stainless steel bowl and a manual wash hose, this device meets ANSI Z358.1-2009 standards for optimal safety. Perfect for laboratories, factories, or any other industrial setting, this eye and face wash station is easy to install and use, ensuring effective protection in case of incidents involving hazardous substances.

Features :

  • Corrosion-resistant stainless steel bowl
  • Convenient manual wash hose for easy use
  • Complies with ANSI Z358.1-2009 standards
  • Compact and sturdy design for quick and long-lasting installation

Don't compromise on your employees' safety; equip your facility with Bradley's Halo Eye and Face Wash Station today!

Application:
To use Bradley's Halo Eye and Face Wash Station, locate the device in your facility. In case of contact with hazardous substances, promptly move to the station and activate the water flow by pulling the lever. Position the stainless steel bowl towards your eyes and face, and use the manual wash hose to thoroughly rinse the affected areas. Ensure continuous rinsing for at least 15 minutes to remove all traces of chemicals. This equipment complies with ANSI Z358.1-2009 standards, ensuring effective protection in case of accidents.

Maintenance and service life:
To maintain the Halo pedestal eyewash by Bradley, it is important to regularly check its proper functioning by conducting periodic tests. Clean the stainless-steel bowl and components to prevent the buildup of dirt or deposits that could obstruct the water flow. Also, ensure that the fittings are secure and there are no leaks. If any malfunctions or damaged parts are found, replace them immediately to ensure optimal use in case of an emergency.

Suggestions:
Do you need additional safety equipment? Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).

Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).

Texts colored green correspond to hyperlinks leading to specific safety equipment or general information.

PD19214P

Data sheet

Product group
Safety equipment
Main category
First aid and emergency showers
Sub category
Emergency showers
Sub sub category
Eyewash & face wash stations
Name of the product
Bradley pedestal Halo eye wash
Product code
PD19214P
Sort by keywords
Pedestal eyewash station
ANSI Requirements
Compliance ANSI Z358.1-2009
Manufacturer
Bradley
Features
This device does not include a thermostatic valve, therefore there is no automated water temperature control
Additional Features
The heads are equipped with filters to retain water particles and antimicrobial protection
Comfort features
The unique design of the heads, with multiple water jets, covers a wider area than traditional face shower models, making it easier to wash the face
Includes
Parts necessary for the installation of the eyewash station and the connection to a water supply (some parts are not supplied, see instructions)
Includes 2
The 2.4 meter (8 foot) personal wash hose allows you to rinse your face and body
Type of emergency
Eye/Face Wash
Installation specifications
This eyewash station attaches to the floor, so it doesn't need to be placed near the walls
Activation type
Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. This eye wash station is also barrier-free, for use by people in wheelchairs.
Operating flow rate
Allows a minimum flow of 3 GPM (11.4 L/min) at 30 PSI
Material1
The bowl is made of strong and resistant stainless steel. The piping is made of galvanized steel protected by the yellow Bradtect coating
Material2
Yellow and grey plastic lids
Length (in/cm)
36 in / 91.44 cm
Width (in/cm)
18 in / 45.72 cm
Height (in/cm)
18 in / 45.72 cm
Weight (lb/kg)
15 lb / 6.80 Kg
Sold by
Unit
Return conditions
No returnable
