Bradley
Bradley Halo PD19224DCFW Stainless Steel Sylprotec
PD19224DCFW
$1,244.10

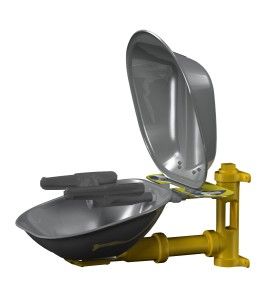

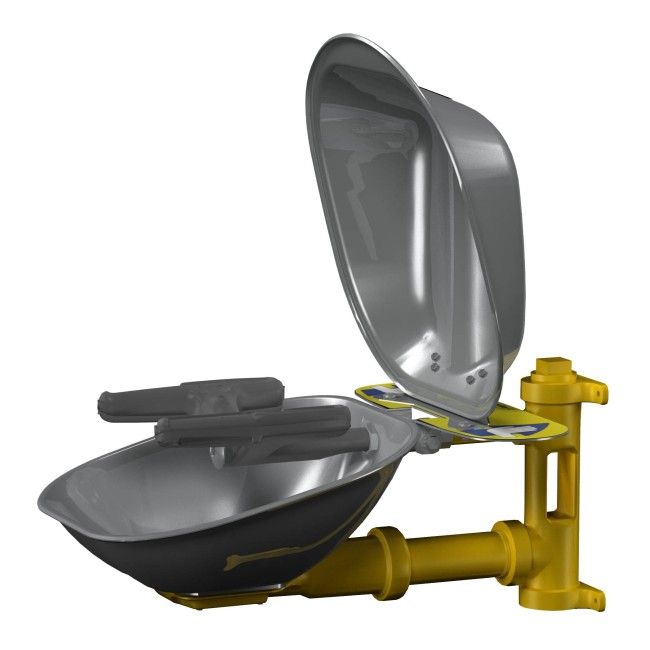

This eye/face wash station is wall-mounted and keeps the floor area cleared. Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. The spray heads have a unique elongated design, with multiple water jets, that cover more area than traditional face wash spray heads and facilitate face rinsing. The hinged dust cover tilts open at the same time as the handle moves. This eye/face wash station is also barrier-free, for use by people in wheelchairs.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Bradley Halo™ Eye and Face Wash Station Stainless Steel Bowl & Cover (PD19224DCFW)
The PD19224DCFW eye and face wash station from Bradley’s Halo™ line is a premium safety solution built for demanding industrial environments. Entirely constructed with stainless steel components, this wall-mounted unit offers superior corrosion resistance and maximum durability for top-tier eye and face protection.
Why Choose the Halo™ PD19224DCFW Station?
This model is the preferred choice for its ruggedness and compliance with the highest safety standards:
-
304 Stainless Steel Construction: Both the bowl and the hinged cover are made of high-quality stainless steel, making it ideal for laboratories, chemical plants, or environments where hygiene and resistance to corrosive agents are a priority.
-
Advanced Halo™ Wash System: Provides the most comprehensive water coverage in the industry. The flow is designed to rinse both eyes and face simultaneously with a gentle yet effective stream.
-
Integrated Hinged Dust Cover: The stainless steel cover protects the entire bowl and spray heads from dust, debris, and contaminants. It opens automatically the moment the unit is activated.
-
Ergonomic Activation: The stainless steel push handle allows for instant, one-motion start-up. Once activated, the flow remains "on," allowing the user to keep their hands free to hold their eyelids open.
-
Self-Draining Design: Engineered to prevent standing water in the spray heads, significantly reducing the risk of bacterial growth in the plumbing.
Technical Specifications
| Feature | Details |
| Sylprotec Reference | PD19224DCFW |
| Bowl Material | 304 Stainless Steel |
| Cover Material | 304 Stainless Steel |
| Mounting Type | Wall-mounted (Heavy-duty bracket included) |
| Standards | Certified ANSI/ISEA Z358.1 |
| Water Inlet | 1/2 inch NPT |
Key Benefits and Features
-
Industrial Durability: Built to withstand harsh chemical vapors and physical impacts better than plastic alternatives.
-
Hands-Free Operation: Once triggered, the wash continues to flow, ensuring a full 15-minute rinse as required by safety regulations.
-
Hygienic Protection: The full-coverage cover ensures that the spray heads remain clean and ready for immediate use in case of an emergency.
FAQ Frequently Asked Questions
1. Why choose stainless steel over plastic?
Stainless steel is much more resistant to chemical fumes, physical damage, and temperature fluctuations. It is also easier to maintain in sterile environments like pharmaceutical or food-grade facilities.
2. Does the cover slow down the emergency response?
No. The cover is mechanically linked to the activation handle. When the handle is pushed, the cover flips back instantly with no extra effort required from the user.
3. Is maintenance required for this unit?
Yes. To remain compliant with ANSI standards, the unit should be activated weekly to ensure proper flow and to flush the lines. The stainless steel finish can be easily wiped down with standard non-abrasive cleaners.
Do you need additional safety equipment?
Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).
Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).
PD19224DCFW
Data sheet
- Product group
- Safety equipment
- Main category
- First aid and emergency showers
- Sub category
- Emergency showers
- Sub sub category
- Eyewash & face wash stations
- Name of the product
- Halo wall mounted eye and face shower
- Product code
- PD19224DCFW
- Sort by keywords
- Steel dust shower
- ANSI Requirements
- Compliance ANSI Z358.1-2009
- Manufacturer
- Bradley
- Features
- This device does not include a thermostatic valve, therefore there is no automated water temperature control
- Additional Features
- The heads are equipped with filters to retain water particles and antimicrobial protection
- Comfort features
- The unique design of the heads, with multiple water jets, covers a wider area than traditional face shower models, making it easier to wash the face
- Includes
- Parts necessary for the installation of the eyewash station and the connection to a water supply (some parts are not supplied, see instructions)
- Type of emergency
- Eye/Face Wash
- Installation specifications
- This eyewash can be installed on a wall, without cluttering the floor
- Activation type
- Push on the large handle, leaving a user’s hands free once turned on. The hinged dust cover tilts open at the same time as the handle moves. This eye wash station is also barrier-free, for use by people in wheelchairs.
- Operating flow rate
- Allows a minimum flow of 3 GPM (11.4 L/min) at 30 PSI
- Material1
- The bowl is made of strong and resistant stainless steel. The piping is made of galvanized steel protected by the yellow Bradtect coating
- Length (in/cm)
- 24 in / 60.9 cm
- Width (in/cm)
- 24 in / 60.9 cm
- Height (in/cm)
- 24 in / 60.96 cm
- Weight (lb/kg)
- 10 lb / 4.5 Kg
- Sold by
- Unit
- Return conditions
- No returnable
