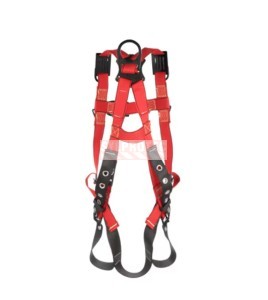

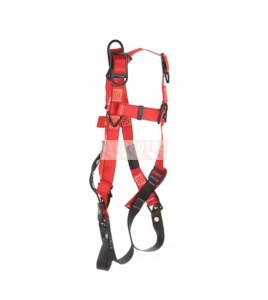

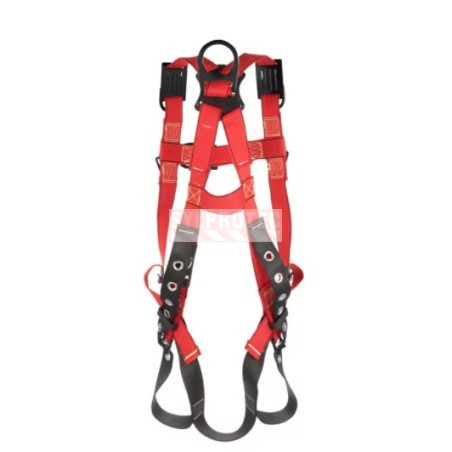

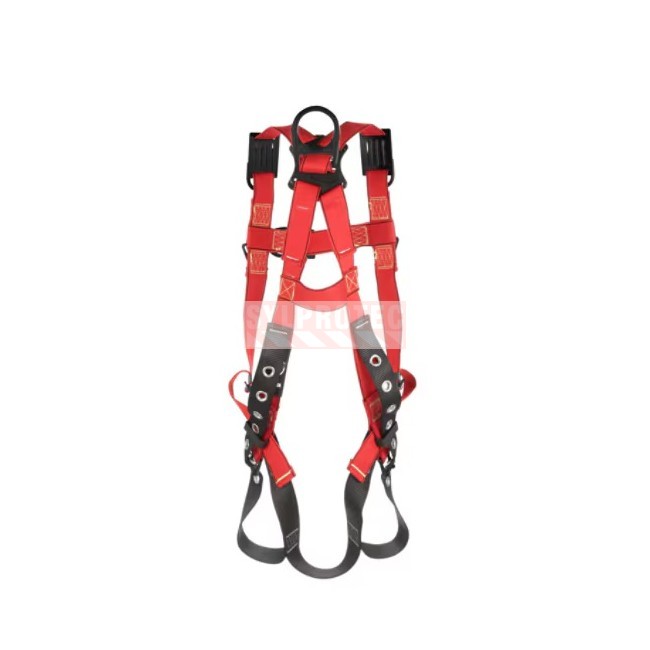

Protecta P200 PRO Vest-Style Welding Harness Class ADE 3M
FPH1191392CA
$239.45
Fall Protection Harness 1191392C
The 3M Protecta P200 medium-large safety harness is a versatile fall protection solution for hot work and salvage operations. Its Kevlar® and polyester fabric construction with a modacrylic coating are heat and flame resistant. In addition, it incorporates a fixed D-ring and lanyard attachment points for automatic lanyards to optimize efficiency on the job site.
Complies with CSA Z259.10, Class A. Features leg straps with buckle fasteners and interlocking buckles at the chest.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Protecta P200 PRO Vest-Style Welding Harness for Hot Work, Class ADE
Sylprotec code: FPH1191392CA
3M / Protecta reference: 1191392C : 3M stock number: 7012816899
Manufacturer: Protecta® (3M) : Country of origin: USA
Compliant with CSA Z259.10
The Protecta P200 PRO welding harness is built for hot work, welding, grinding, climbing and rescue/retrieval in demanding industrial environments. Its heat- and flame-resistant construction makes it a go-to choice for workers exposed to slag and spark projections, while delivering certified fall protection and all-day wearing comfort.
Technical Description of the Vest-Style 4 D-Ring Welding Harness
This Protecta P200 PRO harness is Class ADE, vest style, and features 4 D-rings:
- A : dorsal D-ring: for fall arrest
- D : front (sternal) D-ring: for ascent and front connection
- E : shoulder rescue D-rings (pair): for retrieval and rescue
The D-rings and connectors are made of strong alloy steel with a 5,000 lb tensile strength. The leg connections use tongue (barbed) buckles for a secure adjustment that does not slip, even with thick work clothing. The chest straps are joined by pass-thru interlocking buckles. The harness includes a sub-pelvic strap that improves comfort and distributes the load during suspension, an impact (fall) indicator for quick visual inspection, and web and lanyard storage keepers to keep lanyards out of the way. The straps come in distinct colours that make donning faster and easier. Colour: red and black.
Load Capacity and Certified Safety Standards
Maximum worker capacity: 420 lb (including clothing, tools and equipment). Compliant with CSA Z259.10 for fall protection in Canada. Some models also meet OSHA and ANSI requirements.
Heat- and Flame-Resistant Materials
The webbing is made of modacrylic over Kevlar® and polyester, providing outstanding heat and flame resistance : far beyond ordinary polyester. The webbing withstands slag projections up to 700 °F (371 °C). The alloy-steel hardware is left unpainted to ease visual inspection. Comfort padding reduces fatigue during extended wear.
Recommended Applications and Work Environments
This harness is ideal for hot work: welding, grinding and oxy-cutting, as well as climbing and rescue/retrieval in industrial and metalworking settings. Its thermal resistance sets it apart from universal polyester harnesses. Available size: medium/large (M/L).
Harness Inspection and Service Life
Inspect before each use: cuts, fraying, thermal damage, broken stitching, deformation or seizing of buckles and attachment points. The impact indicator helps quickly confirm the equipment's integrity. A qualified person must inspect the harness at regular intervals (90 days, 180 days or yearly depending on conditions). Recommended service life: 5 years under regular use : a harness exposed to welding must be inspected more often than a standard harness. Any harness that has been subjected to a fall or impact must be removed from service immediately. Sylprotec offers an annual inspection service by a qualified technician.
Cleaning and Maintenance to Extend Service Life
Clean with lukewarm water (max 37 °C) and a mild soap. Never use bleach, solvents or abrasive products that would damage the fibres. Air dry away from any direct heat source and prolonged sunlight. Store in a clean, dry place to prevent premature wear of the textiles and metal components.
Frequently Asked Questions About the Protecta P200 Welding Harness
Why is this harness rated Class ADE rather than simply Class A?
The ADE class covers three ring functions spread over 4 D-rings: A (dorsal D-ring for fall arrest), D (front D-ring for ascent) and E (pair of shoulder D-rings for rescue and retrieval). It is not a single-ring harness: it is a 4 D-ring, vest-style configuration built for demanding work and rescue.
Is this harness truly suited for welding and grinding work?
Yes. Its modacrylic over Kevlar® and polyester webbing withstands slag projections up to 700 °F (371 °C), making it far more durable than a universal polyester harness in hot-work environments.
What is the maximum worker weight for this harness?
The maximum capacity is 420 lb, including clothing, tools and equipment.
Complementary Suggestions for Your Fall Protection System
To optimize your fall protection, see the mandatory safety harness sign (ECO-130), a hot-work lanyard (FPL1340129C), the galvanized steel anchorage sling (FPAE) and the 6-ft leading-edge SRL (FPLR76105-6LEAR).
Under "Accessories" at the bottom of the page, complete your PPE with the auto-locking D-shaped carabiner (FPAM88), the 3-way confined-space system (FPLRK3) and the warning line with pennants (EFLAC).
FPH1191392CA
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Fall protection safety harness
- Name of the product
- Safety harness
- Series of products
- Protecta P200 series
- Product code
- FPH1191392CA
- Product use
- For welding work
- Approved/Certified
- Complies with the requirements of CSA Z259.10, Class A
- Manufacturer
- 3M (TM)
- Country of origin
- Mexico
- Choice of format
- Size medium to Large (M-L)
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The chest straps are connected by Pass-Thru buckles and the thigh straps are connected by grommeted leg straps (eyelets)
- Additional Features
- Designed for hot work, welding and grinding
- Comfort features
- Equipped with a sub-pelvic strap providing greater comfort during suspension
- Characteristics of metal parts
- Non-painted metal parts
- Post-suspension relief strap
- Does not include trauma straps
- Includes
- Includes 4 alloy steel D-rings: 1 dorsal for fall arrest, 1 front/sternal for ascent and 2 shoulder rings for rescue
- Type of retaining straps
- Auto-resetting lanyard keepers
- Classification
- Class ADE: dorsal (A, fall arrest) + front (D, ascent) + shoulders (E, rescue)
- Function of attachment points
- Dorsal D-ring: fall arrest. Sternal D-ring: climbing. Shoulder D-rings: rescue and confined-space access
- Type of harness
- Vest-style harness
- Fireproof material
- Kevlar® is flame retardant and will not melt or leak when exposed to an open flame
- Material1
- Kevlar® and polyester fabric construction with modacrylic coating
- Material2
- Steel
- Washable
- Wash with mild soap and lukewarm water at 98.6°F / 37°C. Never use bleach or abrasive chemicals. Air dry only
- Length (in/cm)
- 11 in / 27.94 cm
- Width (in/cm)
- 11 in / 27.94 cm
- Height (in/cm)
- 2 po / 5.08 cm
- Weight (lb/kg)
- 2.2 lb / 1 kg
- Sold by
- Unit
- Color
- Red/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight supported is 420 lb / 190.5 kg, including clothing, tools, etc
