ExoFit X200 Class AE Vest Style Quick Connect Rescue Harness DBI-SALA 3M
FPH1402147CAE
$628.35
3M DBI-SALA ExoFit X200 Class AE vest-style Quick Connect harness for fall arrest and confined space rescue. Patented double-locking quick-connect buckles, stand-up dorsal D-ring, shoulder D-rings and sub-pelvic strap. CSA Z259.10-18 compliant.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

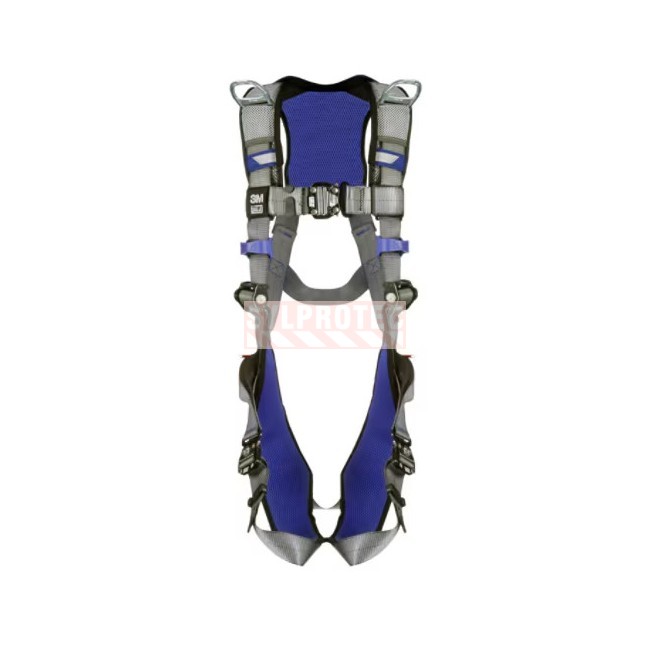

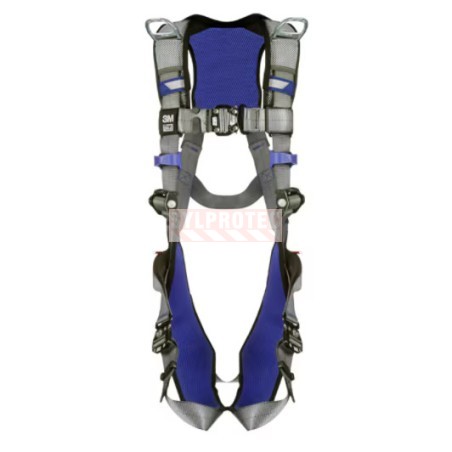

DBI-SALA X200 harness class AE Retrieval
The ExoFit X200 Class AE (fall arrest and confined space rescue) harness by 3M DBI-SALA is designed for professionals demanding reliability, comfort and safety during work at height. Ideal for: confined space entry, industrial rescue, tanks and silos. Made in the USA, compliant with CSA Z259.10-18. This harness is vest style, with vertical shoulder straps for easy donning and optimal comfort.
| Size | Sylprotec Code | DBI-SALA Model | 3M Purchase Code |
|---|---|---|---|
| Small | FPH1402145CAE | 1402145C | 7012817897 |
| Medium | FPH1402146CAE | 1402146C | 7012817899 |
| Large | FPH1402147CAE | 1402147C | 7012817901 |
| X-Large | FPH1402148CAE | 1402148C | 7012817903 |
| 2X-Large | FPH1402149CAE | 1402149C | 7012817905 |
Technical description : features and components
This ExoFit X200 safety harness features a dorsal D-ring and shoulder D-rings with automatic vertical positioning (stand-up) and anti-slip plate. The patented 3M Quick Connect double-locking buckles keep the adjustment secure throughout the shift, eliminating frequent readjustments. The torso buckle is swivel and lockable. The sub-pelvic strap prevents orthostatic suspension syndrome in the event of a fall.
The 6,000 lb polyester webbing offers superior UV and chemical resistance. Zinc-plated alloy steel hardware is unpainted for easy visual inspection. Color-coded webbing simplifies donning. Available in: Small, Medium, Large, X-Large, 2X-Large.
Load capacity and certified safety standards
Maximum load: 310 lb / 140.6 kg including clothing, tools and equipment. Compliant with CSA Z259.10-18 for the Canadian market. Made to order by 3M. Allow approximately 1 month lead time.
Materials : strength, durability and light weight
6,000 lb (27 kN) polyester webbing: superior resistance to acids and UV. Unpainted light aluminum-alloy D-rings and slides, and quick-connect leg buckles of hybrid aluminum-alloy and zinc-plated-steel construction (light weight and strength): facilitates visual inspection with advanced material engineering specific to 3M DBI-SALA harnesses. Multi-color webbing: quick identification of anchor points and adjustments. Plastic tips on webbing ends: prevent fraying over time.
Application and recommended uses
Suitable for: confined space entry, industrial rescue, tanks and silos. Meets the requirements of Canadian Labour Code and CNESST (Quebec) regulations for work at height. Sizes available: Small, Medium, Large, X-Large, 2X-Large.
Inspection and service life : verification guide
Inspect before each use: check for cuts, fraying, broken stitching and deformed hardware. Inspection by a qualified person is required at least annually. Recommended service life: 5 years with regular use. Any harness subjected to a fall must be removed from service and destroyed immediately. Sylprotec offers annual inspection by a qualified technician.
Care and cleaning to extend service life
Clean with mild soap and lukewarm water (max 37 C / 98.6 F). Never use bleach, solvents or abrasive products. Air dry away from direct sunlight. Store hanging in a clean, dry location away from chemicals and heat sources.
FAQ - Frequently Asked Questions
What does Class AE mean and what are the shoulder D-rings for?
Class AE combines two functions: fall Arrest (dorsal D-ring) and confined space Entry / retrieval (shoulder D-rings). The shoulder D-rings connect to a retrieval device to raise or lower the worker in a vertical position during confined space entry or rescue. They are never used for fall arrest.
Is this harness suitable for rescue and tank work?
Yes, that is its purpose. This model is designed for confined space entry, industrial rescue and work in tanks and vessels, where fast vertical retrieval may be required. Use the shoulder D-rings only with a compliant winch or retrieval device and a rescue plan that meets applicable regulations.
Why is there about a 1 month lead time for this harness?
This model is made to order by 3M and is not kept in regular stock. Allow approximately 1 month from the order date. For an urgent need, contact Sylprotec: we can check availability and suggest an equivalent in-stock harness when possible.
Complementary Suggestions
To complete your fall protection system, add a leading-edge SRL retractable (FPLR73302-40LE) or an energy-absorbing lanyard (FPL6402) as your fall arrest connection. Protect the head with a Peak T2 helmet with integrated chin strap (TA222), the eyes with safety glasses (YA11514) and hearing with earplugs (OA1250). For the job, add suitable gloves (GS13SXGPU) and a flame-resistant garment (V1766).
Under “Accessories” at the bottom of the page. For safe storage and transport of your equipment at height, a Peakworks bag (FPBAG) keeps your gear clean and inspection-ready.
FPH1402147CAE
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Fall protection safety harness
- Name of the product
- Safety harness
- Series of products
- ExoFit X200
- Product code
- FPH1402147CA
- Approved/Certified
- Compliant with CSA Z259.10-18
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Choice of format
- Size small (S) to double extra large (2XL) available
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Patented 3M double-locking quick-connect buckles. Shoulder D-rings for confined space rescue.
- Characteristic adding safety
- Polyester webbing with a 6,000 lb (26.7 kN) strength rating.
- Comfort features
- Equipped with a sub-pelvic strap providing greater comfort during suspension.
- Characteristics of metal parts
- Unpainted metal parts for easy visual inspection; patented 3M self-locking quick-connect leg buckles made of aluminum alloy and zinc-plated steel (hybrid construction), combining light weight and strength
- Feature that facilitates use
- The straps have distinct colors for easy donning
- Includes
- With 1 zinc-plated steel dorsal D-ring (stand-up) and shoulder D-rings (pair)
- Includes 3
- The ends of the straps have plastic tips to prevent fraying and allow the user to adjust the harness easily even when wearing work gloves
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Classification
- Class AE — dorsal D-ring (A, fall arrest) + shoulder D-rings (E, rescue and confined space access)
- Type of harness
- Vest-style harness
- Material1
- Polyester
- Material2
- Aluminum
- Material3
- Aluminum alloy / zinc-plated steel
- Weight (lb/kg)
- 4.46 lb / 2.02 kg
- Availability
- Please note: Available only on special order
- Sold by
- Unit
- Color
- Gray/Blue
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight of the worker wearing this harness is 310 lb / 140.6 kg, including clothing, tools, etc.
