Taraton anchor system for fire hoses
IBTARA
$218.70

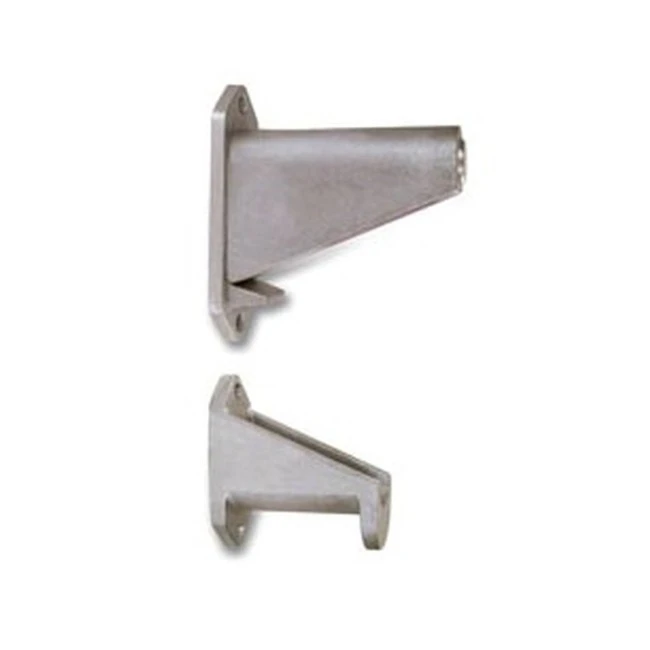

Taraton anchor system for vertical mounting of a 1.5 to 2.5 in fire hose on a column or beam. Spring-loaded upper hook, protects the hose from forklifts.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Taraton Anchor System for Fire Hose (Vertical Mount)
The Taraton anchor system is designed for the vertical mounting of a 1.5 to 2.5 in diameter fire hose on a column, a beam or any other vertical support. Rather than winding the hose on a reel or a horizontal support, the Taraton hangs the hose in vertical loops, which protects the hose better and for a longer time. Its spring-loaded upper hook makes it easy to access the hose and deploy it quickly in an emergency.
This mounting method offers a concrete advantage in industrial settings : by keeping the hose high and along a vertical structure, it protects the equipment from forklifts and ground traffic. It is a robust, durable solution for buildings where wall space is limited or exposed.
Benefits of the Taraton Vertical Anchor System
Beyond simple storage, the Taraton extends the life of the hose and makes the response easier.
Extended Protection of the Fire Hose
Vertical mounting avoids permanent kinks and crushing of the hose, protecting it better and longer than a horizontal support or reel.
Fast Access Thanks to the Spring-Loaded Hook
The spring-loaded upper hook releases the hose easily, allowing fast deployment in an emergency.
Buildings and Sectors Where This System Is Used
The Taraton system is particularly suited to :
- Factories, warehouses and industrial sites with columns and beams.
- Areas with heavy forklift traffic.
- Commercial and institutional buildings with cluttered floors.
- Facilities where wall space is limited.
Installation Distance by Hose Length
The vertical distance required between the hooks depends on the hose length and the desired number of loops. The following table shows the recommended configurations :
| Hose length | Number of loops | Vertical distance between hooks |
| 50 ft | 2 loops | 12 ft |
| 50 ft | 3 loops | 8 ft |
| 50 ft | 4 loops | 6 ft |
| 75 ft | 3 loops | 12 ft |
| 75 ft | 4 loops | 9 ft |
| 100 ft | 4 loops | 12 ft |
FAQ About the Taraton Anchor System
Which hoses does the Taraton suit ?
Fire hoses of 1.5 to 2.5 in diameter, mounted vertically on a column, beam or wall.
Why choose a vertical mount ?
Vertical mounting protects the hose better and longer than a horizontal support or reel, and keeps it safe from forklifts.
How do I determine the distance between hooks ?
Based on the hose length and the desired number of loops ; see the distance table above.
Suggested Complementary Equipment for Fire Hose Stations
To complete your fire hose station, see also a compact 18 in reel (IBD18), a standard 24 in model (IBD24), a horizontal reel (IBD100), a pin rack (IBD75P), an A-B-C fog nozzle (IBPLE), a hose stop (IBDE), a combination wrench (ICC250H) or a recessed cabinet (BC100). Under "Accessories" at the bottom of the page.
IBTARA
Data sheet
- Product group
- Safety equipment
- Main category
- Fire protection
- Sub category
- Fire hoses and accessories
- Product code
- IBTARA
- Length (in/cm)
- 8 in / 20.32 cm
- Width (in/cm)
- 3 in / 7.6 cm
- Height (in/cm)
- 3 in / 7.6 cm
- Weight (lb/kg)
- 5 lb / 2.26 Kg
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
