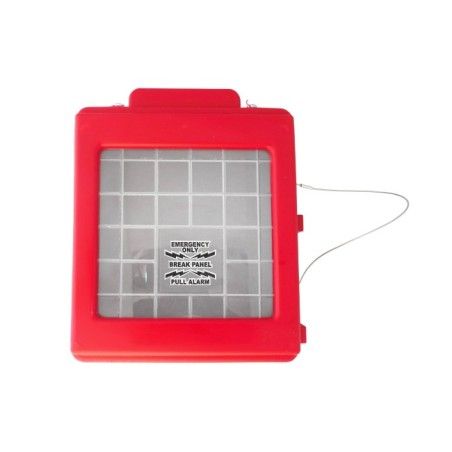

CATO™ red HDPE manual pull station cover with acrylic window, for flush-mounted pull stations.

CATO™ Protective Cover for Flush-Mounted Manual Stations – Safety & Durability

CATO™ cover for flush-mounted manual pull station, made of red injection-molded HDPE. The cover kit includes a plastic frame, a breakable window with a scored acrylic panel to access to the pull station, as well as screws and wall anchors. This cover is designed for indoor and outdoor use.

This cover protects manual pull stations from impacts, and helps prevent false fire alarms without restricting access in case of emergency. The cover's window must be broken to access the pull station. A galvanized steel breaker bar is included to safely shatter the window. The breaker bar is attached to the cover with a steel cable to ensure it’s there when needed.

The use of a pull station cover requires two steps to reach and trigger the fire alarm. As a result, a single-action exposed pull station becomes a double-action pull station.

All labeling on the cover is in English only.

Sylprotec offers a wide array of signs for fire safety. In Quebec, the law requires that any signage be either in French only, or in both official languages. To make this economical cover compliant with language laws, simply add a French language sign such as item (EI702).

External dimensions:

Length 7.625" x Height 8.375" x Depth 3.75"
(Length 19.35 cm x Height 21.25 cm x Depth 9.5 cm)

Inner dimensions:

Length 6.625" x Height 7" x Depth 3.25"
(Length 16.8 cm x Height 17.8 cm x Depth 8.25 cm)

Wall thickness:

0.125" (3.17 mm)

This cover fits most flush-mounted manual pull station models.

Why Install the CATO™ Cover?

• Reduce False Alarms: By introducing a second step to activate the alarm, it transforms your manual station into a double-action system, discouraging malicious pulls and preventing accidental impacts.

• Ultra-Rugged Construction: The frame is made of high-density polyethylene (HDPE) in high-visibility red, injection-molded for maximum impact resistance.

• Secure Access: The transparent window is made of scored acrylic for easy breaking during an emergency.

• Safety Break Tool: Includes a galvanized steel breaker bar attached by a safety cable to ensure it is always available when needed.

• Industrial Resistance: The HDPE material is highly resistant to alcohols, acids, and oils, ensuring longevity in harsh environments.

Installation & Compatibility

This model is specifically designed for manual stations with flush-mounted wiring. The kit is ready to install and includes:

1. Injection-molded red polyethylene frame.

2. Clear breakable acrylic window.

3. Mounting screws and anchors.

4. Steel breaker bar with security cable.

OHS Expert Advice

"While the instructions on the window are in English only, you can easily meet local compliance requirements by adding a French-language safety sign next to the unit. It is a highly economical way to secure your high-traffic zones."

Maintenance and lifetime:

Some basic practices should be adopted to maintain manual pull station covers. It is recommended to wash the cover with lukewarm water and a gentle soap. The manufacturer strongly advises not to use steel pads since they will scratch the surface and might affect the legibility of the label. It also is not recommended to use strong cleaning products to clean this cover. HDPE is highly resistant to alcohols, acids and oil-based products, but not to oxidizers.
