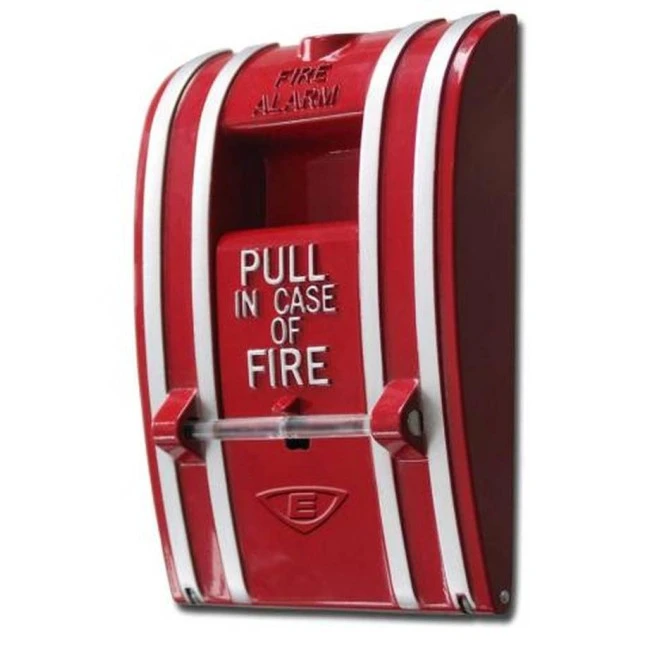

Manual fire alarm pull station, classic wall-mounted model with single-stage activation.

The standard manual trigger for emergency evacuation.

This manual pull station is the most common physical control element in fire alarm systems. As a "single-stage" model, one action (pulling the lever) is all it takes to instantly trigger the general alarm signal throughout the building. It is a rugged, reliable device designed to be immediately recognizable to occupants during an emergency.

Size:
width 79 mm x height 116 mm x depth 37 mm from the wall.
(width 3 1/8 po x height 4 9/16 po x depth 1 15/32 po from the wall.)

Requires 30V AC or 60V DC, 3 Amp power supply.

Please note that fire alarms can only be installed by a certified electrician. Sylprotec does not offer fire alarm installations.

Key Benefits: Simplicity and Durability

• Immediate Activation: Designed for rapid action without confusion. Ideal for environments where an immediate evacuation is required upon the discovery of a fire.

• Rugged Construction: Usually made of die-cast metal or high-impact polycarbonate, built to last for decades in commercial or industrial settings.

• Maximum Visibility: Finished in vibrant red with contrasting white lettering for quick identification, even in low-light or smoky conditions.

• Secure Reset: Once activated, the handle remains in the "down" position until reset with a special key (typically a hex key or a CAT-30 type key), preventing unauthorized resets or tampering.

• Versatile Compatibility: Equipped with gold-plated or high-quality contacts (Normally Open) compatible with the majority of fire alarm control panels (FACP).

Technical Specifications

• Type: Single Action (Single Stage).

• Material: Die-cast metal or heavy-duty plastic (depending on the specific variant).

• Mounting: Designed for a standard single-gang electrical box.

• Operating Voltage: Compatible with 12V to 120V AC/DC systems.

• Certifications: ULC Listed (Underwriters Laboratories of Canada), meeting Building Code requirements.

Installation Guide: Standards and Placement

1. Mounting Height: Must be installed according to local building codes (generally between 1.1 m and 1.4 m from the finished floor level).

2. Strategic Location: Must be placed at every floor exit and along exit routes so that a person does not have to travel more than 30 meters to reach one.

3. Clearance: Access must never be obstructed by furniture, boxes, or decorative elements.

FAQ: Frequently Asked Questions

What is the difference between single-stage and two-stage stations?

In a single-stage station, pulling the lever triggers the general alarm everywhere immediately. In a two-stage station, pulling the lever sends a silent signal to a monitoring station or triggers a "pre-alarm," and a key is required to initiate the general building-wide alarm.

Do I need to break glass to use it?

While some older models used a glass rod or plate, most modern models are "pull-lever" type. An optional internal glass rod is often used simply as a visual deterrent against vandalism; if it's broken, it indicates the station has been tampered with.

Occupational Health and Safety (OHS) Expert Advice

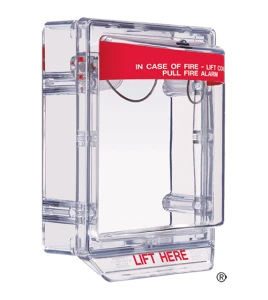

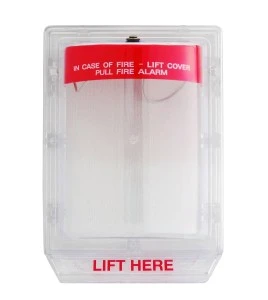

• Vandalism Protection: If the station is located in an area prone to false alarms (such as schools or public arenas), it is highly recommended to install a "Stopper" cover (a clear polycarbonate shield with a local alarm) over the pull station.

• Annual Testing: The mechanical and electrical integrity of every manual station must be verified during the mandatory annual inspection of your fire alarm system to ensure it will function when needed.
