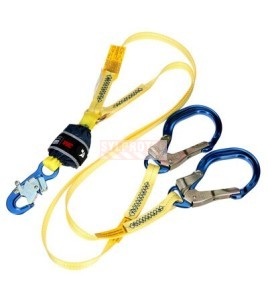

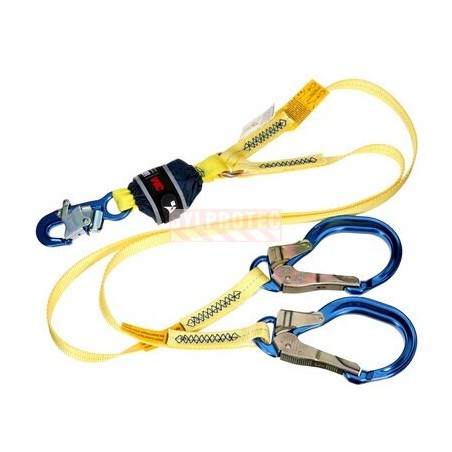

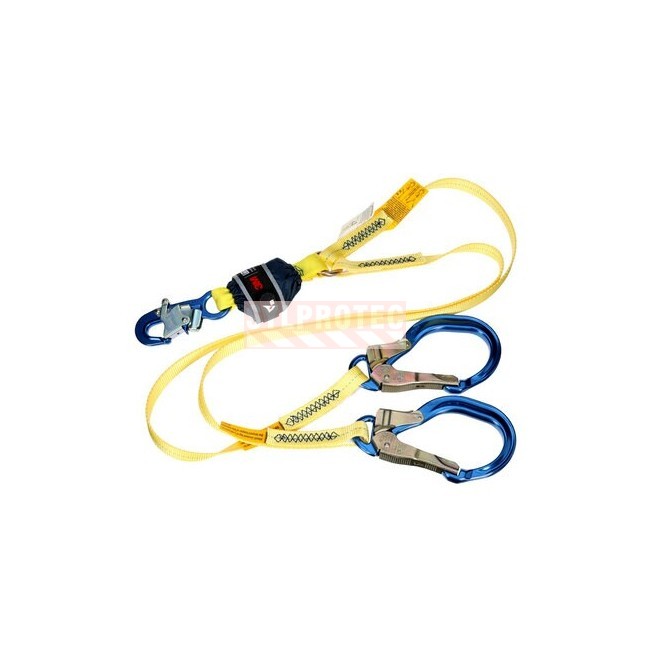

DBI-SALA 3M Twin-Leg Y Web Shock-Absorbing Lanyard, Aluminum Large Hook
FPL1246579C
Twin-leg Y lanyard in polyester web with built-in shock absorber, available in 4 ft (1.2 m) or 6 ft (1.8 m). Two aluminum large rebar hooks at the ends, central anodized aluminum snap hook. Capacity of 132 to 310 lb (59.9 to 140.6 kg). Certified to CSA Z259.11. 3M IRF identification system.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Fall protection: the twin-leg Y shock absorbing lanyard for moving between anchor points
| Length | Sylprotec code | 3M model | 3M purchase code |
|---|---|---|---|
| 4 ft (1.2 m) | FPL1246579C | 1246579C | 7100329197 |
| 6 ft (1.8 m) | FPL1246575C | 1246575C | 7100329193 |

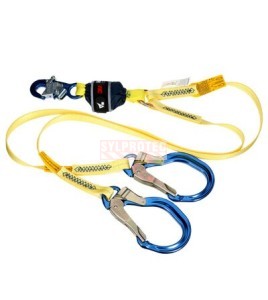

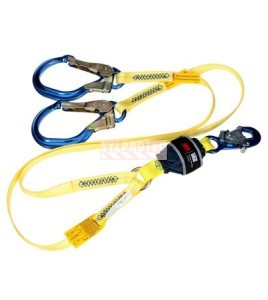

The DBI-SALA 3M twin-leg Y shock absorbing lanyard, available in 4 ft (1.2 m) or 6 ft (1.8 m), is built for workers who must move from one anchor point to another while staying tied off at all times. Select the length from the drop-down menu on the page. Its yellow polyester web houses an energy absorber inside a black pack that deploys progressively during a fall to reduce the arresting forces transmitted to the worker.

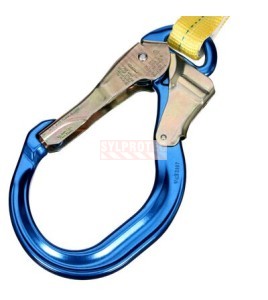

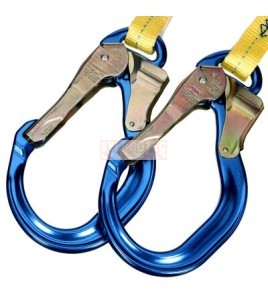

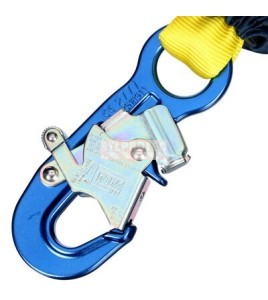

This twin-arm configuration provides a 100% continuous connection, since the second arm is attached before the first is released. It connects by means of an anodized aluminum snap hook at the harness attachment point and two aluminum large rebar hooks at the ends of the arms, ideal for tying off to large structures or rebar. The 3M IRF identification system makes equipment tracking and inspection easier throughout its service life.
Total worker weight capacity, including clothing, tools and equipment, is 132 to 310 lb (59.9 to 140.6 kg). This product is certified to CSA Z259.11.
For fixed single-anchor work positions, we also offer the single-leg model. This single-arm configuration is enough when the worker does not need to move between multiple anchor points.
Understanding the fall clearance window
Before using this energy-absorbing lanyard, calculate the fall clearance, that is, the free space required below the anchorage point to arrest a fall before the worker strikes the ground or an obstacle. This clearance window adds up from several elements: the length of the lanyard, the deployment of the energy absorber, the height of the worker, the dorsal D-ring slide and a safety margin. A miscalculation is one of the most common causes of serious injuries at height, even with compliant equipment.
Example for the 4 ft model: the lanyard (4 ft) plus the absorber deployment (4 ft) plus the worker height (6 ft) plus a safety margin (1.5 ft) give a total clearance of about 15.5 ft (4.7 m) below an overhead anchorage.
Example for the 6 ft model: the lanyard (6 ft) plus the absorber deployment (4 ft) plus the worker height (6 ft) plus a safety margin (1.5 ft) give a total clearance of about 17.5 ft (5.3 m). In low-clearance situations, choose a self-retracting lifeline instead.
FAQ: Frequently asked questions about the twin-leg Y lanyard
Does this lanyard meet Canadian standards?
Yes, this product is certified to CSA Z259.11, ensuring compliance for construction sites and industrial environments in Canada.
What is the capacity of this lanyard?
This lanyard is designed for a worker whose total weight, including tools, is between 132 and 310 lb (59.9 to 140.6 kg).
When should I choose a twin-leg Y lanyard over a single-leg lanyard?
The twin-leg Y lanyard suits frequent transitions between several anchor points, where the worker must stay tied off at all times. For a fixed single-anchor workstation, a single-leg lanyard is enough.
What fall clearance is required depending on the length?
For the 4 ft model: about 15.5 ft (4.7 m). For the 6 ft model: about 17.5 ft (5.3 m), below an overhead anchorage. In low-clearance situations, choose a self-retracting lifeline instead.
What happens if my anchor is at foot level?
This is the most dangerous scenario, fall factor 2: the free fall can reach twice the lanyard length. This 3M IRF energy absorbing lanyard is designed to dissipate the energy of a severe fall and reduce arresting forces, making it suitable when the anchor is at foot level.
Complementary suggestions for the lanyard:
Beyond fall arrest, equip the worker from head to toe: protect their hands with cut-resistant gloves (GZ13PEHPFN), their eyes with safety eyewear (YAU2500), and their hearing in noisy areas with earplugs (O1100) or earmuffs (OPH10B); on a traffic worksite, add a high-visibility vest (V6692).
To complete your fall protection system, combine your lanyard with reliable anchors: a connector (FPA219011X), a anchor (FPA2190070), or a rugged fixed connector (FPA2104568); attach it to an ExoFit harness (FPH140319XCA) or the model (FPH111319XCA), and post the mandatory sign (ECO130). Every component of the harness-lanyard-anchor assembly can save lives at height.
FPL1246579C
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Y-shaped double lanyard with energy absorber
- Product code
- FPL124657XXX
- Product use
- Work at height with movement between anchor points: construction, industry, oil and gas, mining, utilities, wind energy and transportation
- Approved/Certified
- Compliant with CSA Z259.11 standards
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Format
- Depending on selection: 4 ft / 1.2 m or 6 ft / 1.8 m
- Types of lanyards
- Y-shaped double lanyard
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The 3M IRF system energy absorber deploys through controlled tearing to reduce the fall arrest force
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Characteristics of metal parts
- Non-painted metal parts
- Includes
- With a controlled-tearing energy absorber, 3M IRF system
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Worker’s weight
- 132 to 310 lb / 59.9 to 140.6 kg, including clothing, tools and equipment
- Material1
- Polyester
- Material2
- Aluminum
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Length (in/cm)
- 17 in / 43.18 cm
- Width (in/cm)
- 13 in / 33.02 cm
- Height (in/cm)
- 8 in / 20.32 cm
- Weight (lb/kg)
- Variable according to selection
- Sold by
- Unit
- Color
- Yellow/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 132 lb to 310 lb / 59.9 kg to 140.6 kg, including clothing, tools and equipment
Specific References
- mpn
- 00648250249321
