3M Cynch-Lok Outer Replacement Strap 8 ft 1200111
FPL1200111
$691.50
3M DBI-SALA Cynch-Lok 1200111 outer replacement strap for transmission poles, 8 ft / 2.44 m length, brown nylon webbing, 310 lb / 141 kg capacity, wear indicator and connected safety ID.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

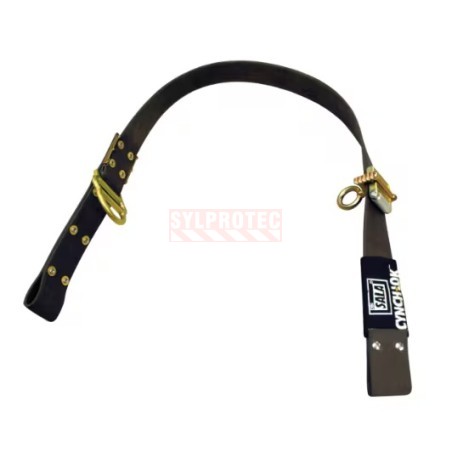

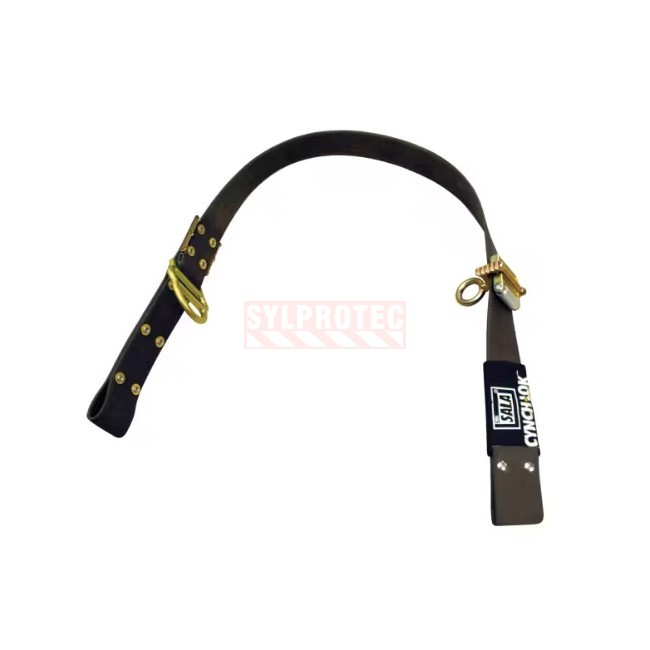

3M DBI-SALA Cynch-Lok 1200111 Outer Replacement Strap
3M manufacturer code: 7100239617, model 1200111
This 3M DBI-SALA outer replacement strap is used with the Cynch-Lok device for wooden transmission poles. It replaces the system's outer strap without including the inner lanyard, harness or rescue equipment. Model 1200111 measures 8 ft / 2.44 m, uses brown nylon webbing and includes a wear indicator, abrasion-resistant sleeve, one-hand adjustment and Saflok carabiners.
Applications for the Cynch-Lok outer strap
This part is intended for utility work on transmission poles. It is used with compatible Cynch-Lok components to adjust position around the pole and pass obstacles during climbing. Final selection must consider pole diameter, the harness, inner lanyard and rescue procedures.
Verified details of the 1200111 strap
- Product type: outer replacement strap for transmission poles
- Lanyard length: 8 ft / 2.44 m
- Load capacity: 310 lb / 141 kg
- Lanyard material: nylon webbing
- Colour: brown
- Number of legs: 1
- Lanyard type: adjustable
- Harness connection type: no direct connection
- Connected safety ID
- Listed standards: CSA Z259.14 Types A and AB; ASTM F887
- Country of origin: USA
- Gross weight: 3.125 lb / 1.42 kg
Compatible pole dimensions
The transmission configuration covers wooden poles from 5.5 to 30.5 in / 14 to 77.5 cm in diameter, with a circumference from 17.5 to 96 in / 44.45 to 244 cm. This outer strap can be paired with a compatible Cynch-Lok inner strap to form the required system.
Precautions for a Cynch-Lok strap
Inspect the strap, wear indicator, webbing, hardware, labels and compatible components before each use. Make sure the strap matches the pole and that the full system is suited to the work being performed. Any part showing abnormal wear or exposed to fall-arrest loading must be removed from service in line with applicable requirements.
FAQ: 3M DBI-SALA 1200111 strap
What is 1200111 used for?
It is an outer replacement strap for the Cynch-Lok device used on transmission poles.
What length is listed?
The listed length is 8 ft, or 2.44 m.
What load capacity is listed?
The listed capacity is 310 lb, or 141 kg.
Is the harness included?
No. This reference is the outer strap only; the harness and inner lanyard are sold separately.
What material is used for the strap?
The strap uses brown nylon webbing with abrasion-resistant elements.
Complementary suggestions for this Cynch-Lok strap:
A aerial lift technician connecting with this DBI-SALA 3M lanyard completes personal protection with a high-visibility garment (V6692), a helmet (TA80) held by its chinstrap (TA80CS), cut-resistant gloves (GS18WTFN), safety eyewear (YA12261) and corded earplugs (OA1101) that stay around the neck and cannot drop from height.
For the lanyard to work in a complete fall arrest system, plan a DBI-SALA 3M harness (FPH111303XCAL), a DBI-SALA 3M fixed anchor (FPA210367X), a second DBI-SALA 3M complementary anchor (FPA2199938), a 500 ft RollGliss R550 rescue (FPLR550) and descent device for emergency lowering, a DANGER barricade tape (ECT3RE9) to cordon off the ground area and the sign (ECO130) reminding that the harness is mandatory.
FPL1200111
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Cynch-Lok outer replacement strap for transmission poles
- Series of products
- Cynch-Lok
- Product code
- FPL1200111
- Product use
- Climbing wooden utility poles
- Approved/Certified
- CSA Z259.14 Types A and AB; ASTM F887
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Format
- 8 ft / 2.44 m
- Features
- Interchangeable outer strap for a compatible Cynch-Lok inner lanyard
- Additional Features
- Pole diameter from 5.5 to 30.5 in / 14 to 77.5 cm; circumference from 17.5 to 96 in / 44.45 to 244 cm
- Characteristic adding safety
- Red webbing wear indicator
- Characteristics of the strap or cable
- Neoprene-impregnated nylon webbing
- Characteristics of metal parts
- Metal hardware with stop hook and Saflok carabiner
- Carabiners characteristics
- Double-slotted D-ring, roller adjuster, stop hook and carabiner
- Stacking and nesting storage features
- Store in a cool, dry place away from direct sunlight and chemical vapours
- Environmental characteristics
- Does not provide electrical insulation against electrical contact
- Feature that facilitates use
- Roller adjuster for adapting the strap to the pole diameter
- Includes
- Outer strap with hardware, protected labels and connected safety ID, without inner lanyard or harness
- Worker’s weight
- 310 lb / 140 Kg maximum, with tools and equipment
- Material1
- Nylon
- Material2
- Neoprene
- Material3
- Metal
- Length (in/cm)
- 14.15 in / 35.94 cm
- Width (in/cm)
- 11.75 in / 29.8 cm
- Height (in/cm)
- 4.65 in / 11.81 cm
- Weight (lb/kg)
- 3.125 lb / 1.42 kg
- Sold by
- Unit
- Color
- Brown
- Caution
- Maximum supported weight is 310 lb / 141 kg, including clothing, tools and equipment
