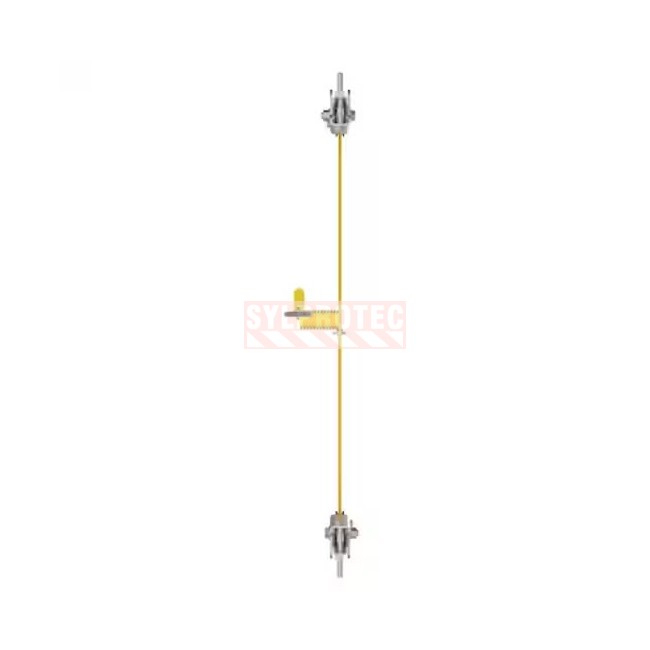

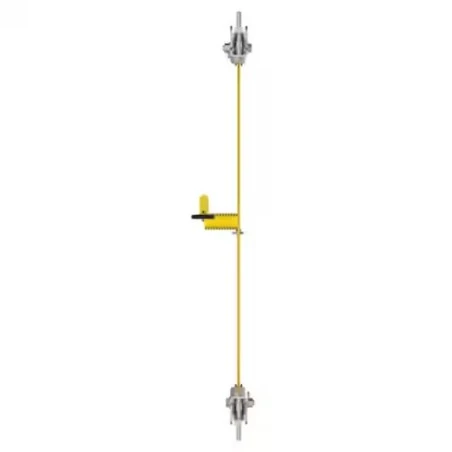

Lad-Saf DBI-SALA 3M ladder anchor stabilizer cable 6100566

DBI-SALA 3M ladder anchor stabilizer cable 6100566, 5-minute install, OSHA compliant

3M purchase code: 7100260187, model: 6100566.

The DBI-SALA 3M ladder anchor stabilizer cable 6100566 adds a fall arrest anchor point to an existing fixed ladder, to help meet OSHA requirements for working-at-height surfaces. It provides a simple, safe way to bring a ladder into compliance, with no front D-ring required on the worker. Fitted with a metal carabiner and hook, it attaches to the ladder using U-bolts.

Lightweight and quick to install, it goes up in 5 minutes or less and mounts flexibly: at the front or back of the ladder, aligned left, right or center, and positionable on either side of the rungs. It is used for permanent or temporary installations.

Benefits of the 6100566 anchor stabilizer cable

• Adds a fall arrest anchor point to an existing fixed ladder
• Helps bring the ladder into OSHA compliance for work at height
• Requires no front D-ring on the worker's harness
• Metal carabiner and hook, U-bolt attachment
• Installs in 5 minutes or less, flexible mounting (front/back, left/right/center)
• Permanent or temporary use

Specifications of the ladder anchor stabilizer cable

• Product type: ladder anchor stabilizer cable
• Color: yellow
• Carabiner and hook: metal
• Attachment: U-bolts to the ladder
• Installation time: 5 minutes or less
• Installation type: permanent or temporary
• No front D-ring required
• Compliant with OSHA 29 CFR 1910.27 (walking-working surfaces at height)

Role of the stabilizer cable in ladder protection

On a fixed ladder lacking a suitable anchor point, the 6100566 stabilizer cable creates an anchorage to connect a smart-lock self-retracting lifeline. The worker attaches their lifeline to this anchor and climbs protected, without needing to install a full vertical cable system or use a front D-ring.

Compatibility and mounting of the anchor stabilizer

The 6100566 stabilizer cable attaches to a fixed ladder using U-bolts and receives a DBI-SALA 3M smart-lock self-retracting lifeline (models 503824 at 50 ft or 3503800 at 30 ft), ordered separately. It works with the worker's fall protection harness. The exact configuration must be validated with a competent person and per the 3M manufacturer instructions.

Worksites and industries for the ladder stabilizer cable

Bringing fixed ladders into compliance: general industry, oil and gas, utilities and agriculture.

Inspection of the anchor stabilizer cable

Before each use, inspect the stabilizer cable, the carabiner, the hook and the U-bolt attachment: check for corrosion, cracks, deformation or loose fasteners. Remove any damaged component from service. A formal inspection by a competent person other than the user is required at least once a year, per 3M manufacturer instructions and applicable provincial regulations.

Maintenance of the fall arrest stabilizer cable

Keep the product clean and dry, away from harsh chemicals. Never modify it. Any repair or component replacement must be performed by 3M DBI-SALA or an authorized person, per the 3M user manual.

FAQ about the 6100566 ladder anchor stabilizer cable

What is this stabilizer cable for?

It adds a fall arrest anchor point to an existing fixed ladder, to connect a self-retracting lifeline and bring the ladder into OSHA compliance.

Is a front D-ring required?

No. Unlike a vertical cable system, this stabilizer does not require a front D-ring on the harness.

Which lifeline should be used with it?

A DBI-SALA 3M smart-lock self-retracting lifeline (503824 at 50 ft or 3503800 at 30 ft), ordered separately.

How long does installation take?

Five minutes or less, using U-bolts, with flexible mounting at the front or back of the ladder.

Which standard does it comply with?

OSHA 29 CFR 1910.27 for walking-working surfaces at height. Confirm the applicable compliance for your job site with a competent person.

Complementary fall protection equipment suggestions

The maintenance technician climbing a fixed ladder fitted with this stabilizer cable connects to a self-retracting lifeline before the climb, where the slightest misstep comes at a high price. A wrong move or unsuitable equipment is enough to turn a routine climb into a serious fall. On this type of job site, he wears his full personal protective equipment: a Class L sternal-D-ring safety harness (FPH140309XCALP) that keeps him facing the ladder, cut-resistant gloves (GS18WTFN), safety glasses (YA12E93102DX), a protective helmet (TA14LR) held by its chin strap (TA80CS), a high-visibility garment (V6968F) and hearing protection, earmuffs (OPH6A).

To complete your at-height ladder protection, also plan a suitable self-retracting lifeline to connect to the stabilizer, a RollGliss R550 rescue and descent device (FPLR550) for controlled descent, and mark off the area at the foot of the ladder with a DANGER barricade tape (ECT3RE9).
