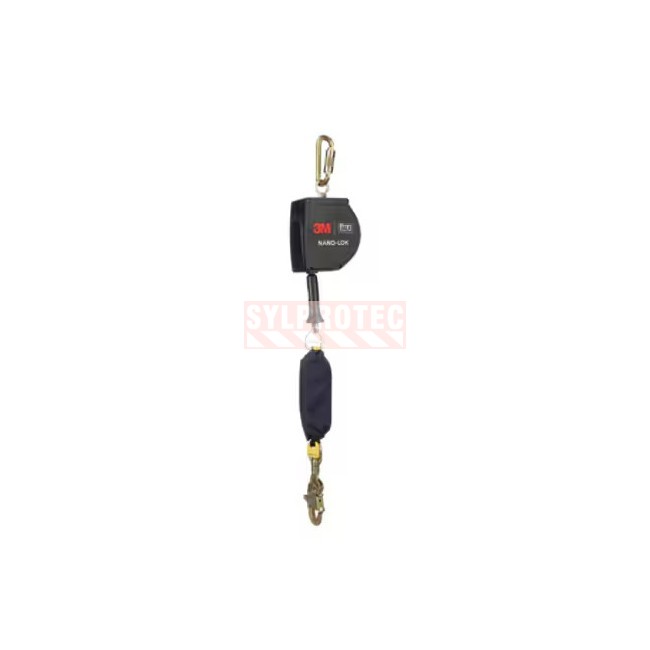

Nano-Lok™ DBI-SALA® 3M Extended Length self-retracting lifeline (SRL), 15 ft (4.5 m). Designed for work at height requiring greater reach: aerial work platforms, scaffolding, overhead structures. Galvanized steel cable. Color: blue. Capacity: 310 lb (140 kg).

3M purchase code: 7012819246, model: 3501696.
Complies with CSA Z259.2.2-17 (SRL class). Made to order by 3M. Allow approximately 1 month for delivery.

The Extended Length series is designed for situations where standard 8 ft is insufficient. A 15 ft (4.5 m) reach allows greater distance between the worker and the anchor point. The visual fall indicator signals if the SRL has been involved in a fall.

Speed-sensing locking arrests a fall within inches. High-capacity external energy absorber limits forces. Snap hook on anchor side and spring hook on harness side.

Housing: durable lightweight thermoplastic nylon. Total weight: approx. 5.82 lb (2.64 kg).

The cable is made of galvanized steel, a zinc-treated metal material resistant to corrosion. Galvanized steel offers superior durability in outdoor environments exposed to moisture and weather. For Extended Length applications, galvanized steel cable provides reliable long-term service.

About the anchor point and fall clearance distance

The anchor point must always be above the dorsal D-ring of the harness and positioned vertically relative to the user. The worker should remain below the anchor within a 30-degree angle.

With a 15 ft length, total fall clearance is greater. Always consult the manufacturer's manual to calculate minimum required clearance.

Extended Length Self-Retracting Lifeline Inspection

Check the visual fall indicator before each use. Perform a routine inspection looking for deterioration, wear, or damage. A qualified person must inspect periodically. Recommended service life: 5 years. Visit the Service tab for inspection services.

Any equipment subjected to a fall or impact must be taken out of service.

Maintenance and Cleaning of the Nano-Lok Extended Length Lifeline

Clean with mild soap and warm water (37°C). No bleach or abrasives. Air dry. Fully retract when not in use.

FAQ : Nano-Lok Self-Retracting Lifeline DBI-SALA FPLR3501696

Why choose 15 ft (4.5 m) instead of 8 ft?

The 15 ft Extended Length is recommended when the anchor is far from the worker: aerial lifts, overhead structures, beam work. Greater reach with compliant fall protection. Note: longer length means potentially greater free-fall distance.

Is the fall indicator mandatory to check?

Yes. If the visual fall indicator is triggered, take the equipment out of service immediately. Have it inspected by a qualified person before any reuse.

Is this product compliant with Canadian standards?

Yes, FPLR3501696 complies with CSA Z259.2.2-17 (SRL class), manufactured in the USA by DBI-SALA, a globally recognized 3M brand.

Complementary suggestions : compatible fall protection equipment FPLR3501696

For work at height requiring greater reach, pair with a harness ExoFit X300 Class AP (FPH1403166C) for positioning, or the harness ExoFit X300 Class APL (FPH1403185C) for full climbing. Add safety glasses SecureFit 400 (YASF401BG) and earplugs EARsoft (OA1250). Under "Accessories" at the bottom of this page.

The gloves Dyneema PU A4 (GS13SXGPU) protect your hands at height. The bag Peakworks (FPBAG) stores your equipment. For 20 ft reach, the range of Nano-Lok Extended Length SRLs is available at Sylprotec.
