Miller TurboLite retractable with a SofStop shock absorber, 1 scaffold carabiner and 1 steel twist lock carabiner. 1 in x 6 ft.
FPMFL/12/Z7/6FT
$352.65
Miller TurboLite ultra-light self-retracting lanyard with SofStop absorber and polyester webbing with Vectran core. 6 ft, 310-400 lb. End of line.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

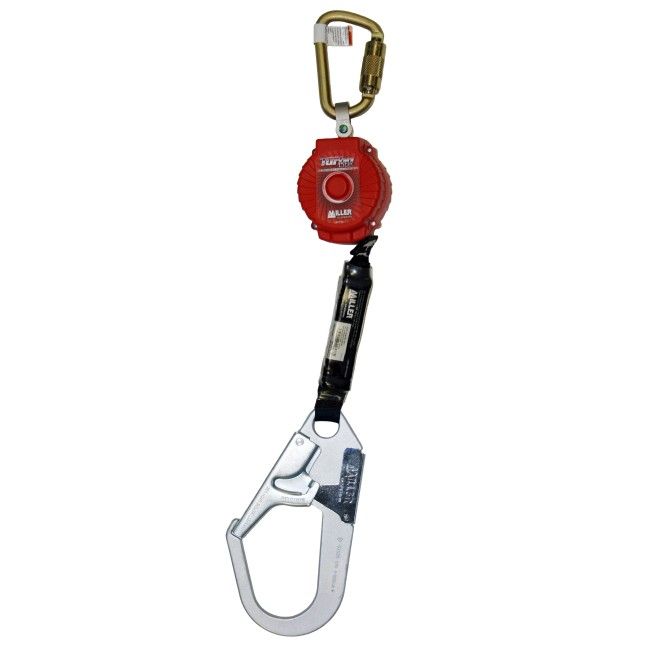

Miller TurboLite self-retracting lanyard with SofStop absorber for fall arrest
The Miller TurboLite self-retracting lanyard is an ultra-light personal fall limiter equipped with a SofStop energy absorber. Its webbing is polyester with a Vectran core, a material highly resistant to abrasion and harsh environmental conditions. With a length of 6 ft (1.83 m), it retracts automatically and reduces the arrest distance compared with a conventional lanyard.
Miller product code: MFL-12-Z7/6FT. This product complies with ANSI Z359.14 Class A & B, ANSI A10.32 and CSA Z259.2.2. Webbing dimensions: thickness 1/16 in (1.5 mm), width 1 in (25.4 mm), length 6 ft (1.83 m). The maximum free-fall distance is 2 ft (0.61 m).

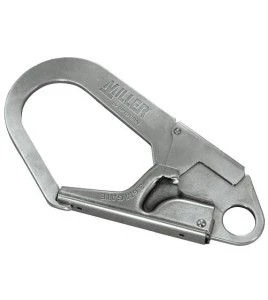

This self-retracting lanyard is fitted with two carabiners: a scaffold hook with a 2½ in (63.5 mm) opening and a semi-automatic carabiner (swivel gate) with a 1 in (25.4 mm) opening. Both are self-locking with double action. With a vertical anchorage, this limiter can support a worker weighing 310 to 400 lb (140 to 181 kg), including clothing, tools and equipment. When the anchorage is horizontal, the maximum weight varies with the distance between the dorsal D-ring and the anchorage height (see Miller technical bulletin).
Availability: end of line — limited quantity (3 units left at the time of writing).
Advantages of the Miller TurboLite self-retracting lanyard
This ultra-light fall limiter offers great freedom of movement and a reduced arrest distance, ideal for extended use.
Self-retracting lanyard features and safety
- Built-in SofStop energy absorber, automatic retraction
- Polyester webbing with Vectran core, highly abrasion-resistant
- Ultra-light, length 6 ft (1.83 m), max free fall 2 ft
- 2 carabiners: scaffold hook 2½ in + semi-automatic 1 in
- Capacity of 310 to 400 lb (140 to 181 kg) depending on anchorage
- Compliant with ANSI Z359.14 Cl. A & B, ANSI A10.32 and CSA Z259.2.2
Job sites and industries where this lanyard is required
- Construction and general work at heights
- Building maintenance and roofing work
- Scaffolding and framing work
- Industrial maintenance and building mechanics
- Extended use requiring a lightweight lanyard
About the anchorage point
The anchorage point should preferably be located above the harness dorsal D-ring. With a horizontal anchorage, the maximum worker weight varies with the distance between the dorsal D-ring and the anchorage height; consult the Miller technical bulletin. The user must assess the fall distance, the clearance below the worker and the anchorage strength (5000 lb).
Self-retracting lanyard inspection
The worker is responsible for performing a routine inspection before each use. The worker must check the retraction and locking of the webbing, the fall indicator, the carabiners, and note any sign of degradation, wear or breakage. Replace the equipment at the first sign of failure. This fall limiter should also be inspected periodically by a qualified person other than the worker, according to the manufacturer's conditions. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a fall protection inspection service; to learn more, see the Services tab.
Self-retracting lanyard maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. Keep the mechanism clean and dry. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Miller TurboLite self-retracting lanyard
What is the SofStop absorber?
SofStop is Miller's energy-absorbing system built into the TurboLite; it reduces the arrest force experienced by the worker during a fall while keeping a compact, lightweight format.
What is the capacity of this lanyard?
It supports a worker from 310 to 400 lb (140 to 181 kg) depending on the anchorage; horizontally, the limit depends on the geometry (see Miller technical bulletin).
Is this product still available?
This is an end-of-line item, in limited quantity. Contact Sylprotec to confirm availability before ordering.
Suggested complementary products
To complete your fall protection, also consider a self-locking carabiner (FPAM88), an anchorage sling (FPAE), a fixed anchorage point (FPA822), a concrete connector (FPAF075N), a Koala harness with quick buckles (FPH02474A), a Koala harness with grommets (FPH33102A), a Koala harness with pass-thru buckles (FPH33101A) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPMFL/12/Z7/6FT
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Self-retracting lanyard & lifeline
- Name of the product
- Self retracting lifeline (SLR)
- Series of products
- TurboLite
- Product code
- FPMFL/12/Z7/6FT
- Approved/Certified
- ANSI Z359.14 Classe A & B, ANSI A10.32 et CSA Z259.2.2
- Manufacturer
- Miller
- Country of origin
- Mexico
- Format
- 6 ft / 1.83 m
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Equipped with an energy absorber and the maximum free fall distance is 2 ft (0.61 m)
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Comfort features
- Increases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing
- Characteristics of the strap or cable
- Polyester webbing with Vectran core
- Characteristics of metal parts
- Non-painted metal parts
- Includes
- With a SofStop energy absorber
- Worker’s weight
- 310 to 400 Lb / 140 to 181 Kg depending on the anchoring point
- Classification
- Type 1
- Material1
- Plastic
- Material2
- Polyester
- Material3
- Steel
- Washable
- Use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the retractable, only wipe the webbing. Air dry without excessive heat in a clean environment
- Length (in/cm)
- 10 in / 25.4 cm
- Width (in/cm)
- 6 in / 15.24 cm
- Height (in/cm)
- 5 in / 12.7 cm
- Weight (lb/kg)
- 5 lb / 2.26 Kg
- Sold by
- Unit
- Color
- Red/Black/Gray
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 310 lb to 400 lb / 140 kg to 181 kg, including clothing, tools and equipment
