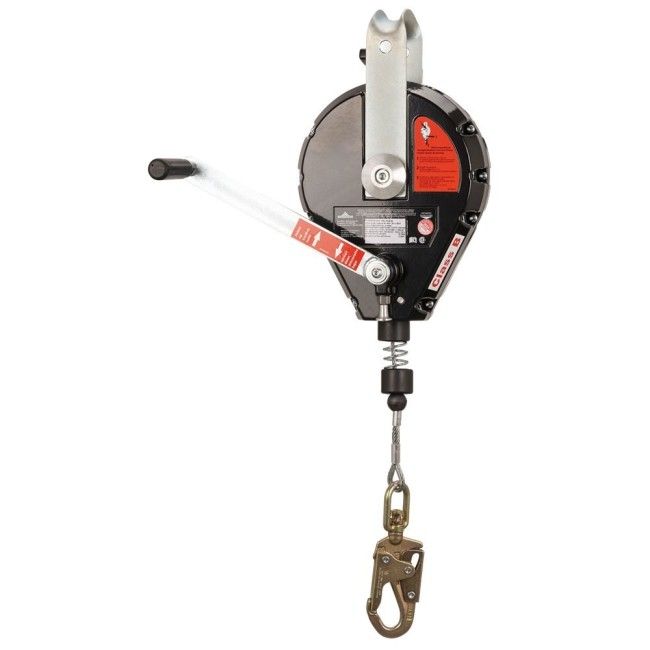

Peakworks Life line Model SRL-73303-60, 60 ft, with recovery Self-Retracting Lifelines, galvanized steel cable
FPLR73303-60
$3,208.65
Peakworks 60 ft (18.3 m) retrieval self-retracting lifeline with rescue crank, galvanized steel cable. Fall arrest + retrieval. Capacity 310 lb.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Peakworks 60 ft (18.3 m) retrieval self-retracting lifeline with rescue crank
The Peakworks retrieval self-retracting lifeline (SRL-R) is a personal fall limiter equipped with an internal energy absorber and a retrieval / rescue crank, with a length of 60 ft (18.3 m). In the event of a fall, it acts as a fall-arrest block; its crank then allows the worker to be raised or lowered to safety, particularly in confined spaces. The cable is 0.22 in (5.5 mm) galvanized steel.
Restricted use: this lifeline is designed to serve as a fall-arrest block and a post-fall recovery/retrieval device. It is not designed for work positioning, personnel transport, or the lifting or moving of goods or materials.
Peakworks product code: V845643060, model SRL-73303-60. This product complies with ANSI Z359.14-2014 and CSA Z259.2.2-2017. It is fitted with one swivel steel carabiner with a standard 7/8 in (22.22 mm) opening, self-locking with double action. With a vertical anchorage, this limiter can support a worker weighing 310 lb (136 kg), including clothing, tools and equipment. The maximum arrest distance is 32 in (0.80 m) with a vertical anchorage.
Advantages of the Peakworks retrieval lifeline
This SRL-R combines fall arrest and built-in rescue capability, ideal for confined-space and at-height interventions.
Lifeline features and safety

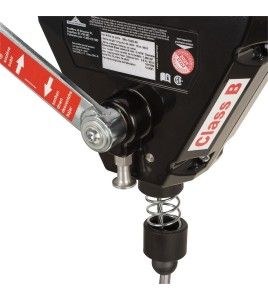

- Built-in retrieval / rescue crank function
- 0.22 in (5.5 mm) galvanized steel cable, length 60 ft (18.3 m)
- Internal energy absorber, 32 in arrest distance (vertical)
- Swivel steel carabiner 7/8 in, self-locking double action
- Capacity of 310 lb (136 kg), including tools and equipment
- Compliant with ANSI Z359.14-2014 and CSA Z259.2.2-2017
Job sites and industries where this lifeline is required
- Confined-space work (tanks, wells, silos, manholes)
- Rescue and vertical retrieval operations
- Work at heights requiring emergency hoisting
- Industrial maintenance and municipal services
- Mounting on a tripod or retrieval davit
About the anchorage point
This retrieval lifeline is typically mounted on a tripod or davit using a suitable bracket. The anchorage must be positioned according to the manufacturer's manual and withstand a force of 5000 lb. The user must assess the fall distance and clearance. Reminder: this equipment is not for positioning or material lifting.
Retrieval lifeline inspection
The worker is responsible for performing a routine inspection before each use. The worker must check the retraction and locking of the cable, the proper operation of the retrieval crank, the fall indicator, the carabiner, and note any sign of degradation, wear or breakage. Replace the equipment at the first sign of failure. This SRL-R should also be inspected periodically by a qualified person other than the worker, according to the manufacturer's conditions. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a fall protection inspection service; to learn more, see the Services tab.
Retrieval lifeline maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. Keep the mechanism and crank clean and dry. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Peakworks retrieval lifeline
What is the retrieval function for?
After a fall is arrested, the built-in crank lets you raise or lower the worker to safety — essential for confined-space rescue without extra equipment.
Can it be used to position or lift materials?
No. This lifeline is only for fall arrest and person retrieval. It must not be used for positioning, personnel transport or the lifting of goods.
What is the capacity of this lifeline?
It supports a worker with a total weight of 310 lb (136 kg), including clothing, tools and equipment, with a vertical anchorage.
Suggested complementary products
To complete your rescue system, also consider a class A,P,L,E confined-space harness (6 D-rings, FPH2000AELP), a class A,E descent harness (FPH2000AE), a confined-space yoke (FPLRKL), a tripod with pulley (FPLRKT), a mounting bracket (FPLRS), a self-locking carabiner (FPAM88), an anchorage sling (FPAE) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPLR73303-60
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Self-retracting lanyard & lifeline
- Name of the product
- Self-retracting lifeline with crank mechanism for rescue
- Product code
- FPLR73303-60
- Approved/Certified
- Complies with ANSI Z359.14-2014 and CSA Z259.2.2-2017
- Manufacturer
- Peakworks
- Country of origin
- Germany
- Format
- 60 pi / 18 m
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The maximum stopping distance is 32 in (0.80 m) with a vertical anchor point
- Additional Features
- This self retracting lifeline is not designed for horizontal applications. Therefore, it does not protect against sharp edges
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Comfort features
- Increases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing
- Characteristics of the strap or cable
- Cable is made of 0.22" (5.5 mm) galvanized steel
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Equipped with one ¾" (19mm) standard opening steel carabiner. Carabiner is self-locking and unlock with a double action
- Includes
- Equipped with a load indicator that shows when the unit has been subjected to severe force
- Worker’s weight
- 310 lb / 140 Kg maximum, with tools and equipment
- Classification
- Class SRL-R
- Operating temperature
- Operating temperature range -40° C to 50°C (-40°F to 122°F)
- Material1
- Aluminium
- Material2
- Galvanized steel
- Material3
- Steel
- Washable
- Use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the life line, only wipe the cable. Air dry without excessive heat in a clean environment
- Length (in/cm)
- 12 in / 30.48 cm
- Width (in/cm)
- 8 in / 20.3 cm
- Height (in/cm)
- 6 in / 15.2 cm
- Weight (lb/kg)
- Not disclosed by the manufacturer
- Sold by
- Unit
- Color
- Black/Gray
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight of the worker that can wear this harness is 310 lb / 140 kg, including clothing, tools, etc.
