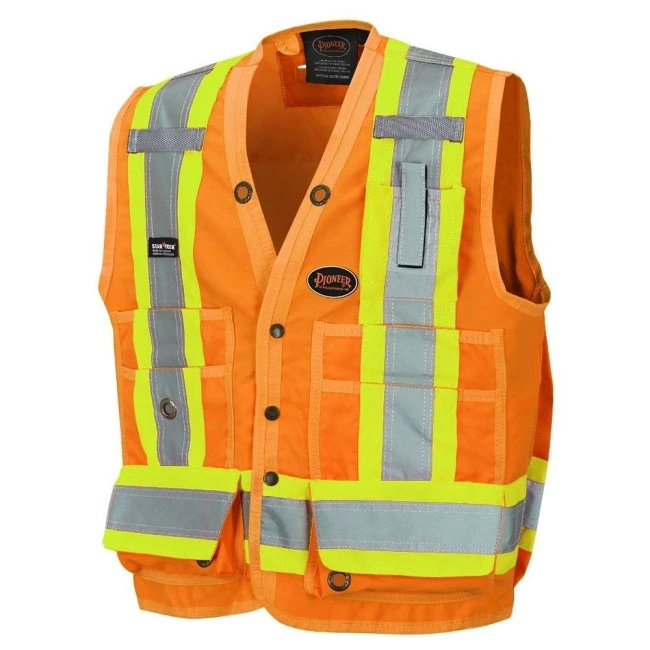

High-visibility 150D orange surveyor's safety vest, 150 Denier polyester knit twill, 4.7 oz/vg² (160 g/m²), 16 pockets with snap closure, sold individually. Complies with CSA Z96-22 class 2 level 2 and ANSI/ISEA 107-2020 class 2 type P and R.
Manufacturer's code: V1010150 model: 6692.
Available in sizes S to 6XL. Please choose your size from the drop-down menu above. Model also available in blue (V6692B), yellow (V6693), red (V6683) or black (V6692N) consult the products activated by the hyperlink in green or consult the traffic clothing tab.
For geometry and surveying professionals, safety is a top priority. Our surveyor's safety vest is specially designed to meet the rigorous demands of the field.
Equipped with reflective strips, it ensures your visibility in all light conditions. Made from robust materials, it stands up to the elements and the wear and tear of everyday work. Its snug fit and breathable fabric will keep you comfortable all day long, even during complex movements. Its compartments for carrying your essential measuring instruments and accessories will delight you too.
Design:

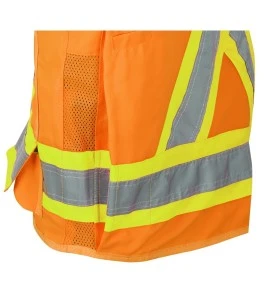

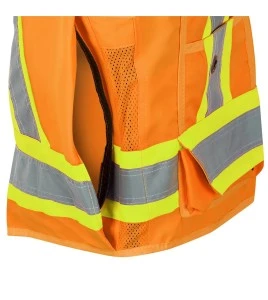

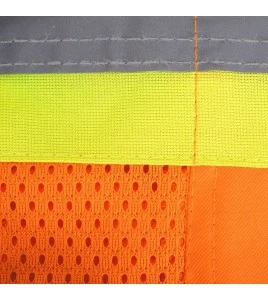

This surveyor's safety vest comes in orange, but you can also find it in red (V6683) or black (V6692N), depending on your preference. Made from breathable 150 denier cotton twill, this garment features mesh ventilation openings under the arms, guaranteeing the ultimate in comfort and coolness. The garment is also waterproof.

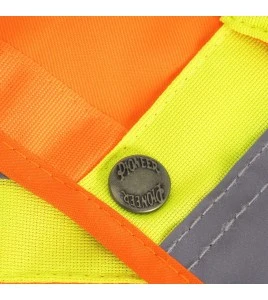

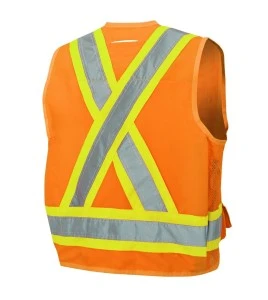

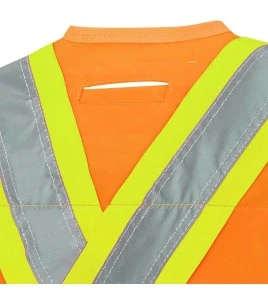

With 50 mm (2 in.) StarTech retroreflective tape and alternating fluorescent yellow stripes. 2 vertical stripes at the front, 2 crossed X stripes at the back and a horizontal stripe at the waist for maximum visibility, plus a heavy-duty brass snap front closure for a secure grip.

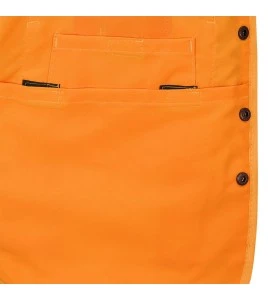

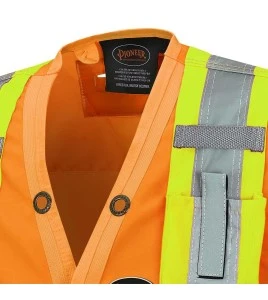

It features a chest-mounted radiotelephone holder, four front pockets, five pen slots, seven multi-purpose pockets and a long back ruler pocket. It also features a D-ring opening, ideal for attaching a variety of fall protection equipment. Finally, it complies with CSA Z96-22 class 2 level 2 and ANSI/ISEA 107-2020 class 2 type P and R standards.
About its classification:
Fluorescent orange is highly visible during the day and in conditions with lots of artificial light. In most situations, it also offers high contrast with the background. Fluorescent orange, however, is less visible at night and in conditions of low natural or artificial light, such as dawn or dusk.
Silver-gray retroreflective tapes are highly visible in natural or artificial low-light conditions, as they reflect light back towards the source of the light beam (flashlight, car headlights, etc.) They therefore offer the greatest safety at dawn, dusk and night. However, they do not increase visibility during the day.
CSA Z96-22 class 2 level 2: High-visibility safety clothing for workers who perform their duties in close proximity to road traffic and whose maximum speed is 80 km/h. This class is intended for workers in LOW or MODERATE RISK areas, who require greater visibility in poor weather or low light conditions to ensure that workers are seen in low-risk traffic environments.
Compliant with American standard ANSI/ISEA 107-2020 class 2, type P and R: essentially identical to the Canadian standard, it applies to workers who are exposed to moderate levels of risk, when the speed of surrounding vehicle traffic varies between 60 and 80 km/h, or for working conditions requiring greater visibility.
With regard to Type P and R.
Type P: Type P (Public Safety) applies to high-visibility garments specifically designed for first responders such as firefighters, police officers and other public safety personnel. These garments are designed to offer optimum visibility throughout the day and night, including in low-light conditions, to ensure the safety of workers responding to emergency situations.
Type R: Type R (Roadway) is designed for workers who are exposed to the hazards of road traffic. This includes construction workers, road maintenance workers and other professionals working in close proximity to road traffic. Type R garments are designed to offer high visibility in all light conditions, day and night.
Sylprotec tip:
To ensure safety in the field, the surveyor should be equipped with a Construction Helmet (TA14LR) to protect the head from falling objects and impacts. Securefit 400 Series safety glasses (YASF401) are also required to protect eyes from splashes, splinters and UV rays. Noise-cancelling earplugs (OA101) limit the impact of noise on hearing, especially in noisy environments. High-visibility work clothing, such as a surveyor's vest, is essential for good visibility and safety. Cut-resistant gloves (GZ13PEHPFN) are important to protect hands when handling equipment or materials. A fall arrest harness is also required for work at height to prevent falls.
It is crucial that the surveyor is trained in the correct use of this equipment and uses it systematically to guarantee his safety and that of his team.
Peculiarities of:
High-visibility safety clothing must be kept clean and in good condition. Contaminated or dirty retroreflective materials reduce visibility.
Application:
A surveyor's vest is designed to offer maximum visibility and protection in a variety of work environments, especially those requiring high visibility for safety reasons. Here are just some of the situations in which it's advisable to wear a surveyor's vest:
- When working on a construction site, especially near traffic or in areas with heavy equipment.
- When carrying out surveying work, where precision and safety are paramount.
Restriction:
Make sure it fits properly, is clean and in good condition. Replace it if it's torn, soiled or worn.
Maintenance and service life:
Machine wash in cold water, do not use bleach, do not iron. Tumble dry.(Information taken from the garment label, always refer to it).
Suggestions:
Need additional safety equipment? See items; CAN/CSAZ1220-17 compliant high-risk first-aid kit (TR03E); complementary first aid kit with soothing items (TR07); 10 lb. portable dry powder fire extinguisher (EXABC10); bilingual "In case of emergency, call 911" sign (EI403); OSHA "Safety First Aid Station" sign (EOS400); one-size-fits-all black Nomex® cap (V308).
See "Accessories" at the bottom of the page. If you're looking for work equipment, have a look at the following products: Endura winter glove in treated goatskin (G909) and fire retardant 950 ml bottle (EXFR).
Type of product | Safety equipment |
Main category | Personal protection |
Sub category | Safety clothing |
Sub sub category | Traffic safety clothing |
Name of the product | Surveyor's vest |
Series of products | Pioneer® |
Product code | V6692 |
Approved/Certified | Complies with CSA Z96-22 class 2 level 2 and ANSI/ISEA 107-2020 class 2 type P and R standards |
Approved/Certified for orange and yellow | Complies with CSA standard Z96-22 class 2 level 2 |
Manufacturer | Pioneer® |
Country of origin | China |
Fineness of the knitting | 150 deniers |
Flame Resistance | No Flame resistant |
Choice of format | Size small (S) to 6 extra-large (6XL) available |
Reusable | Reusable with prior hygienic measurement |
Gender | Male |
Features | With alternating silver retroreflective and fluorescent yellow stripes. 2 vertical stripes on the front, 2 crossed X stripes on the back and 1 horizontal stripe on the waist |

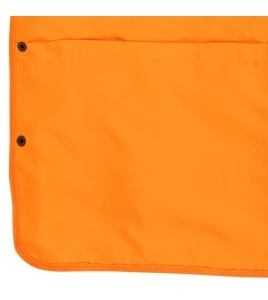

Additional Features | Equipped with 16 pockets, a radiotelephone holder on the chest, four front pockets, five pen slots, seven multi-purpose pockets and a long ruler pocket on the back |
Characteristic adding safety | StarTech® double-stitched reflective tape |
Comfort features | This garment features mesh ventilation openings under the arms, guaranteeing the ultimate in comfort and freshness. What's more, this garment is waterproof |
Features on zips, buttons and hook-and-loop fasteners | The vest is fastened with heavy-duty brass press studs, which ensure a firm grip and secure closure |
Precision on the color of the material and their visibilities | Silver-grey retroreflective strips are highly visible in low natural or artificial light conditions because they reflect light back to the source of the light beam (flashlight, car headlights, etc.) |
Compatibility with fall protection | The vest also features a D-ring slot for easy attachment of fall arrest equipment |
Includes | Closes with three brass snaps |
Includes 2 | The seams are double-stitched for durability |

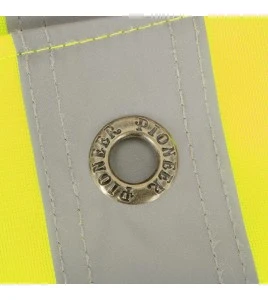

Includes 3 | The 4 grommets are useful for a signal tape dispenser or for attaching small tools |
Property of the material | Polyester fiber has the property to retain the coloration |
Material1 | 150 Denier woven polyester twill, 4.7 oz/yg² (160 g/m²) |
Material2 | The reflective strips are made of StarTech® |
Material3 | Brass |
Washable | Machine wash on delicate with cold or lukewarm water and a mild detergent. Do not use whiteners, bleach, or fabric softener. Air dry. Do not expose to sunlight. Do not machine dry. Do not iron. Do not dry-clean |
Dimensions of the product | The dimensions of the product depend on the size selected by the customer. |
Length (in/cm) | 14 in / 35.56 cm |
Width (in/cm) | 12 in / 30.48 cm |
Height (in/cm) | 2 in / 5.08 cm |
Weight (lb/kg) | 1.3 lb / 0.58 Kg |
Sold by | Unit |
Color | Orange/Grey/Yellow |
