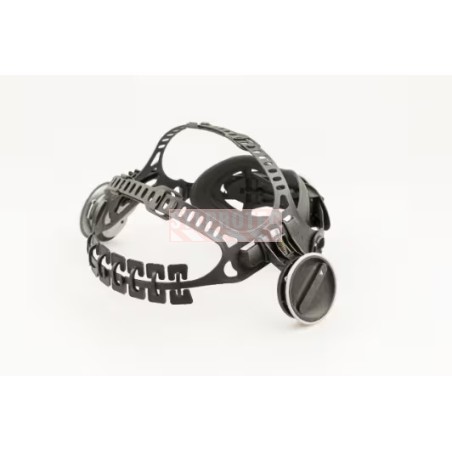

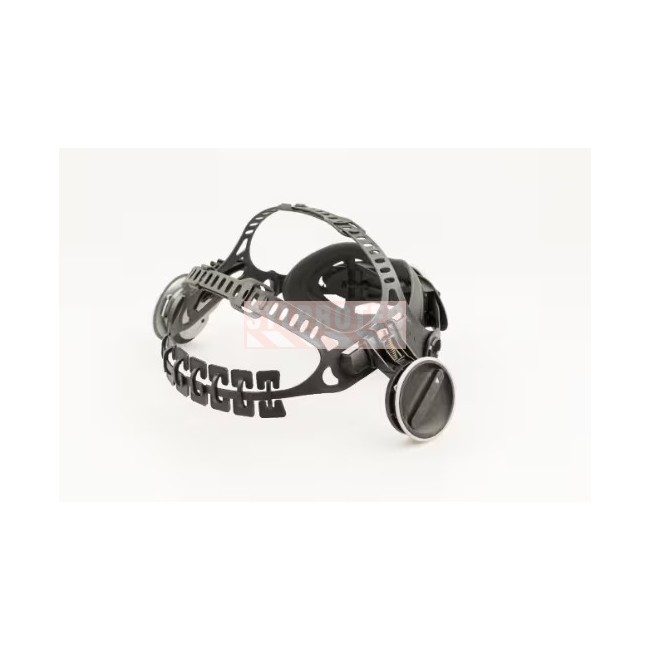

3M Speedglas G5-01 Ratchet Headband Assembly, 46-0400-54

3M Speedglas G5-01 Ratchet Headband Assembly, 46-0400-54

The 3M Speedglas G5-01 ratchet headband assembly 46-0400-54 is the official replacement for the G5-01 ratchet adjustment mechanism. This precision ratchet enables quick headband tension adjustment even while wearing gloves, ensuring optimal retention during welding. Made in Poland.

3M purchase code: 7100289275, model: 46-0400-54

Replacing this part restores the precise adjustment function of the G5-01 when the ratchet mechanism is worn or damaged.

Field Advantages and Compatibility

Speedglas G5-01 Compatibility

The 46-0400-54 ratchet headgear assembly is designed specifically for 3M Speedglas G5-01 welding helmets. This adjustment mechanism is the central piece of the suspension system that keeps the helmet properly positioned on the head. Sold as a single part, it allows replacing only the failing mechanism without changing the entire headgear, providing an economical maintenance solution for welding equipment in intensive production environments.

Role of the Ratchet Mechanism

The ratchet mechanism allows precise headgear size adjustments in defined increments, ensuring a firm and reproducible helmet position on the head. This stability is critical for welders because any helmet movement during welding potentially exposes the eyes to arc radiation. The ratchet must maintain its tension even after hours of vibration and heat in the field. Once the mechanism loses its locking capability, it must be replaced immediately for safety reasons.

Maintenance and Service Life

Inspect the ratchet mechanism weekly in intensive production environments. Verify that the ratchet teeth firmly engage at each position. A mechanism that slips or fails to maintain the selected adjustment is dangerous and must be replaced without delay. Clean moving parts with a dry cloth to remove metal residue and spatter that could jam the mechanism at the most inconvenient moment.

Usage Recommendations

The 46-0400-54 ratchet mechanism is sold as a standalone replacement part, providing a cost-effective option for maintaining G5-01 headgear without full assembly replacement. Keep one or two units in your maintenance kit for immediate replacement when needed. During scheduled maintenance, compare the ratchet engagement quality against a new unit to objectively assess wear. Facilities with a proactive PPE maintenance program typically reduce overall equipment costs while improving worker safety compliance.

FAQ — frequently asked questions about this product

Which helmet is this assembly compatible with?

The 46-0400-54 ratchet headband assembly is designed exclusively for the 3M Speedglas G5-01 welding helmet. It is not compatible with previous Speedglas series.

What is the difference between R46-0400-51 and R46-0400-54?

Reference R46-0400-51 is the complete headband assembly, while R46-0400-54 is specifically the ratchet mechanism alone. If only the ratchet is defective, R46-0400-54 is the more economical solution.

Is this product available in stock?

The G5-01 ratchet headband assembly is available per standard 3M stock levels with a standard delivery lead time of 7 business days.
