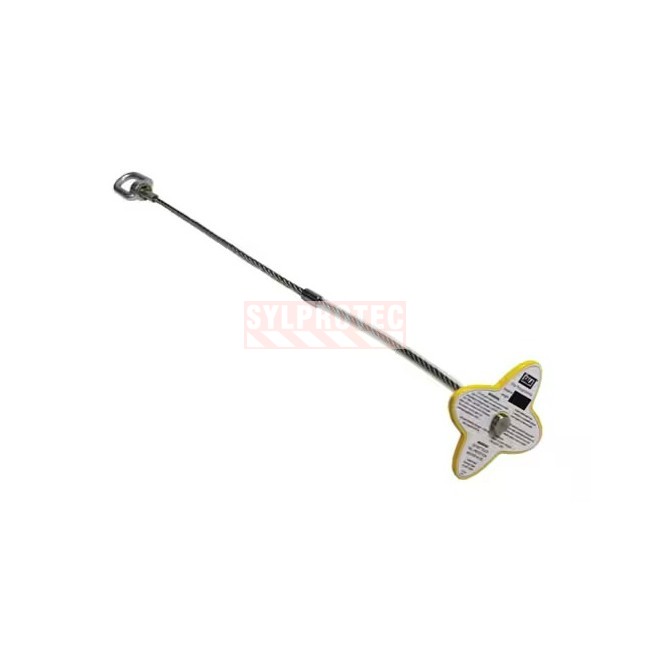

DBI-SALA 3M Drop Through Anchor Plate for concrete and steel, zinc-plated steel

DBI-SALA 3M Drop Through Anchor Plate for concrete and steel, zinc-plated steel

DBI-SALA 3M models: 2104819 (achat 3M 7012777086), 2104818 (achat 3M 7012777089), 2104817 (achat 3M 7012818349), 2104816 (achat 3M 7100246181).

The DBI-SALA 3M Drop Through Anchor Plate for concrete and steel, zinc-plated steel is a portable and reusable anchor point designed for concrete slabs, steel decking and steel grating (holes of 1.5 to 1.75 in in a substrate at least 4 in thick). Made of corrosion-resistant zinc-plated steel, it attaches with top plate resting on the substrate, drop-through cable with swivel d-ring and creates a secure connection point for a personal fall arrest system. Capacity: 310 lb (141 kg) ANSI / 420 lb (190 kg) OSHA.

Available in 4 lengths (2 ft (0.6 m), 6 ft (1.8 m), 8.5 ft (2.6 m) and 10 ft (3.0 m)). Select the desired length from the drop-down menu.

Benefits of the DBI-SALA anchor

• Purpose-built for concrete slabs, steel decking and steel grating (holes of 1.5 to 1.75 in in a substrate at least 4 in thick).
• Corrosion-resistant zinc-plated steel construction for added durability.
• Attaches with top plate resting on the substrate, drop-through cable with swivel d-ring.
• Compact, lightweight design, easy to handle at height.
• Compatible with various fall arrest systems (not suitable for horizontal lifelines).

Technical specifications of the anchor

• Brand: DBI-SALA.
• Material: zinc-plated steel, stainless steel cable.
• Attachment type: top plate resting on the substrate, drop-through cable with swivel d-ring.
• Installation type: portable and reusable.
• Capacity: 310 lb (141 kg) ANSI / 420 lb (190 kg) OSHA.
• Compliance: ANSI Z359.1, OSHA 1910.140 and 1926.502.
• Weight: 1,9 à 2,7 lb / 0,9 à 1,2 kg selon la longueur.

Applications of the anchor plate

Construction, general industry, mining and the oil and gas industry. Designed to create a portable and reusable anchor point on concrete slabs, steel decking and steel grating (holes of 1.5 to 1.75 in in a substrate at least 4 in thick) and serve as a connection point for a fall arrest or restraint system.

Installation of the fall protection anchor

The anchor attaches with top plate resting on the substrate, drop-through cable with swivel d-ring to the structure, in accordance with the manufacturer's written instructions. Choose a location able to support the required loads and have a competent person perform the installation. Once installed, connect the personal fall arrest system to the anchor attachment point.

Inspection of the anchor

Before each use, check the anchor for corrosion, deformation, cracks and loose fasteners. Immediately remove from service any anchor that is damaged or has arrested a fall, and have it evaluated by a competent person.

Maintenance of the steel anchor

Clean with warm water and a cloth, without abrasives or corrosive chemicals. Allow to air dry. Store in a dry place and protect metal surfaces from corrosion.

Anchorage strength requirements

An anchor alone does not stop a fall: it is part of a complete fall protection system (anchor, connector and harness). Its certified strength must be distinguished from the regulatory threshold, which varies by province and system type. As a guide, for a fall arrest system used with an energy absorber (the normal case in the field), Quebec regulations require an anchor point able to withstand a force of at least 18 kN, while other provinces refer to about 22 kN for an anchor not designed by an engineer. Always have the installation validated by a competent person or an engineer, according to the applicable provincial regulation, and refer to the CSA Z259.15 standard for anchorage connectors.

According to the 3M technical bulletin and the ANSI Z359.2 standard, the required strength depends on the type of system connected to the anchor point:

• Fall arrest: at least 5,000 lb (22.2 kN) for a non-certified anchorage, or twice the maximum arresting force for a certified anchorage designed by a qualified person.
• Travel restraint: at least 1,000 lb (4.5 kN) non-certified, or twice the foreseeable force for a certified anchorage.
• Work positioning: at least 3,000 lb (13.3 kN), or twice the potential impact load, whichever is greater.
• Rescue: at least 3,000 lb (13.3 kN) non-certified, or five times the applied load for a certified anchorage.

When more than one system is connected to the same anchorage, these values must be multiplied by the number of systems. An anchorage used for a fall arrest system must be independent of any anchorage used to support or suspend a platform (OSHA 1926.502 and 1910.140).

System component compatibility

A personal fall arrest system is ideally designed, tested and supplied as a complete system. In practice, lanyards, connectors, lifelines, energy absorbers and harnesses are often interchanged because some components wear out before others. Not all components are compatible: for example, a lanyard should not be connected between a harness and a self-retracting type deceleration device, which would result in additional free fall the system was not designed for. Any substitution or change must be evaluated by a competent person before the modified system is put in use, in accordance with OSHA 29 CFR 1926.502 and 1910.140.

FAQ about the DBI-SALA anchor plate

What surface is this anchor installed on?

On concrete slabs, steel decking and steel grating (holes of 1.5 to 1.75 in in a substrate at least 4 in thick).

Is this anchor permanent or reusable?

It is portable and reusable.

What load does this anchor support?

A capacity of 310 lb (141 kg) ANSI / 420 lb (190 kg) OSHA.

Can it be used on a horizontal lifeline?

No, this anchor is not suitable for horizontal lifelines.
