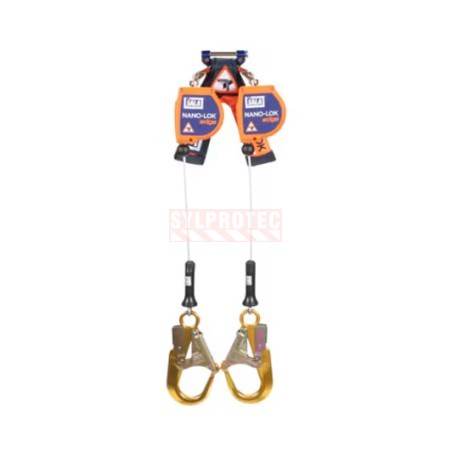

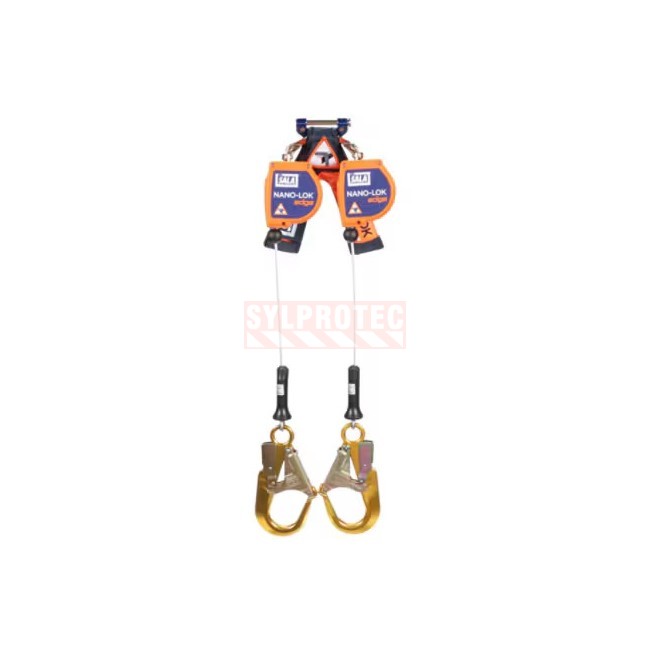

Nano-Lok™ DBI-SALA® 3M twin-leg self-retracting lifeline (SRL) for leading edge applications, 8 ft (2.4 m) per leg. Designed for work at height on unprotected leading edges (roofs, steel structures, beams). The galvanized cable withstands sharp cutting edges. The twin-leg design allows continuous progression without disconnecting from the anchor.

3M purchase code: 7012819207, model: 3500250.
This product complies with ANSI Z359.14 Class 2 for leading edge applications.

Unprotected leading edges represent a major hazard: webbing can be cut during a fall if the equipment is not designed for this use. The galvanized cable resists this type of stress. The twin-leg configuration ensures continuous protection during movement on unsecured surfaces.

The twin-leg design allows transitioning between anchor points without interrupting fall protection. Each leg features a quick connector for direct harness attachment. Speed-sensing locking arrests a fall within inches.

Lifeline specifications:

Material: Galvanized cable
Length per leg: 8 ft (2.4 m)
Color: Orange

This personal fall arrester supports a worker weighing up to 310 lb (141 kg), including clothing, tools and equipment.

During a fall, stopping distance varies by anchor arrangement. The high-capacity external energy absorber limits forces on the falling worker. Once deployed, the overload indicator appears. Refer to the manufacturer's manual for stopping distances specific to this model.

Housing is durable lightweight thermoplastic nylon with integrated quick connector. Total weight: 9.35 lb (4.24 kg). Integrates IRF (i-Safe) technology.

The cable of this self-retracting lifeline is made of galvanized steel, a zinc-treated metal material designed to resist corrosion. Unlike textile webbing (polyester, Kevlar), a steel cable cannot be severed by a sharp steel edge during a fall. This is the fundamental property that makes it essential for Leading Edge applications, where the lanyard may contact a roofing edge, beam, or structural metal angle. Galvanization also ensures extended longevity in outdoor environments exposed to moisture.

About the anchor point and fall clearance distance

The anchor point must always be above the dorsal D-ring of the harness and positioned vertically relative to the user. The worker should remain below the anchor within a 30-degree angle.

This model is designed for leading edge applications. The galvanized cable withstands unprotected sharp edges. The anchor must withstand 5,000 lb. Consult the manufacturer's manual for full details.

Leading Edge Cable Self-Retracting Lifeline Inspection

Perform a routine inspection before each use. Look for signs of deterioration, wear, or damage. Replace at the slightest sign of failure. A qualified person must inspect periodically (every 90 or 180 days, or annually). Recommended service life: 5 years. Visit the Service tab for Sylprotec inspection services.

Any equipment subjected to a fall or impact must be taken out of service.

Maintenance and Cleaning of the Twin-Leg Nano-Lok Lifeline

Clean with mild soap and warm water (37°C). No bleach or abrasives. Air dry. Fully retract when not in use.

FAQ : Nano-Lok Twin-Leg Self-Retracting Lifeline DBI-SALA FPLR3500250

Why use a twin-leg SRL for leading edge applications?

The twin-leg design ensures continuous attachment when moving across a roof or structure. When transitioning between anchor points, one leg always stays attached for uninterrupted fall protection.

Is galvanized cable necessary for cutting edges?

Yes, polyester webbing can be severed by a sharp steel edge during a fall. Galvanized cable resists this. This model is rated ANSI Z359.14 Class 2 specifically for leading edge use.

Can this model be used in standard environments without leading edges?

Yes, the Nano-Lok Leading Edge works in standard applications too. Its higher weight (9.35 lb) is the main trade-off. In environments without sharp edges, a lighter model may be preferable.
