DAYAK LV120G door anchor bar, for 2 people

DAYAK LV120G door anchor bar, for 2 people

Delta Plus manufacturer code: LV120G.

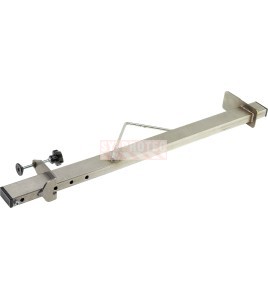

The Delta Plus DAYAK LV120G anchor bar creates a temporary anchor point in a door or window frame, without drilling. Made of galvanized steel, it clamps between the jambs with a movable screw lug, on an opening of 63 to 123 cm (24 13/16 to 48 7/16 in). It is laid on the floor in front of a door or on the sill of a window, on the side opposite the work area, and its anchor triangle receives the connector of the fall arrest or restraint system. It is rated for 2 users at the same time under CEN/TS 16415:2013.

Benefits of the Delta Plus door anchor bar

• Temporary anchor point installed without drilling or permanent fastening.
• Adjusts to openings from 63 to 123 cm (24 13/16 to 48 7/16 in).
• Galvanized steel, usable from -40 °C to +50 °C.
• Up to 2 simultaneous users under CEN/TS 16415:2013.
• Transportable from one site to the next.

Technical specifications

• Brand: Delta Plus.
• Material: galvanized steel.
• Colour: grey (galvanized steel).
• End configuration: Fixed lug on one side, movable screw-clamp lug on the other; anchor triangle.
• Length: 53 1/8 in / 1.35 m (maximum length).
• Clamping range: 24 13/16 to 48 7/16 in / 63 to 123 cm.
• Capacity: 2 simultaneous users under CEN/TS 16415:2013; 1 user under EN 795.
• Compliance: EN 795:2012 type B; CEN/TS 16415:2013; PPE category III (EU Regulation 2016/425).
• Application surfaces: Door frame (laid on the floor) or window frame (laid on the sill), on the side opposite the work area.
• Type of use: Temporary, transportable anchor.
• Product weight: 13.21 lb / 5.99 kg.
• Shipping weight: 13.89 lb / 6.3 kg.

Applications of the door anchor bar

Work near an opening at height: window replacement, window cleaning, renovation, building maintenance, or any task where no permanent anchor exists near a door or window. Used for restraint or fall arrest with an energy absorber limiting the arrest force to 6 kN, in one direction only.

Installation of the door anchor bar

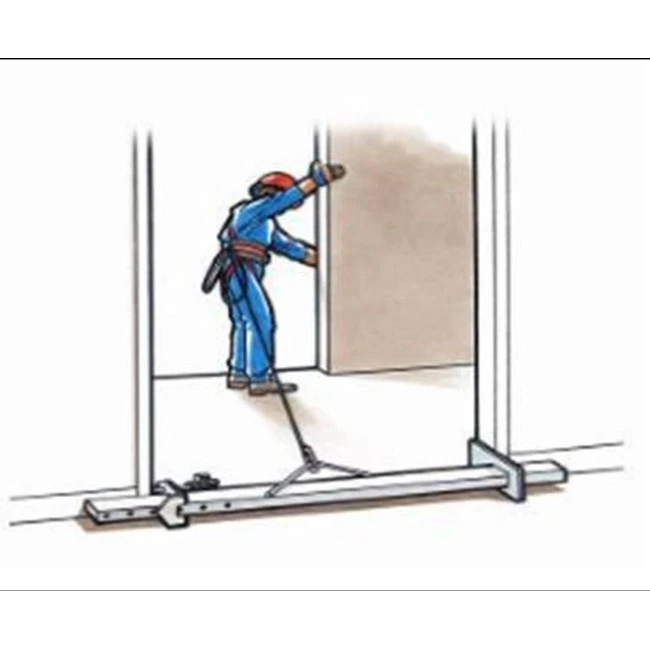

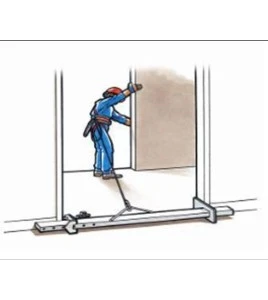

Place the bar on the side opposite the work area, laid on the floor in front of a door or on the sill of a window. Press the fixed lug against one jamb, then tighten the movable screw lug against the other jamb. The supporting structure must withstand at least 13 kN; maximum deflection is 15 mm. Never connect the bar directly to the harness: always use a fall arrest or restraint system. Have the structure checked by a competent person and follow the manufacturer's instructions.

Inspection of the door anchor bar

Before each use, check the bar, lugs, clamping screw and anchor triangle for deformation, cracks, corrosion or damaged threads. A periodic examination by a competent person is required at least every 12 months. Remove from service any bar that is damaged or has arrested a fall. Indicative service life: 20 years maximum from the date of manufacture.

Maintenance of the door anchor bar

Clean with clear water, wipe and let air dry. Store in a clean, dry place away from corrosive products.

FAQ about the Delta Plus door anchor bar

Do I need to drill the frame to install it?

No, the bar clamps between the jambs with a movable screw lug, without drilling.

What opening width does it cover?

From 63 to 123 cm (24 13/16 to 48 7/16 in).

How many people can connect to it?

2 users at the same time under CEN/TS 16415:2013, 1 user under EN 795.

Can the harness be connected directly?

No, always through a fall arrest or restraint system.

Under what conditions should it be used?

The bar is used in one direction only, for restraint or fall arrest with an energy absorber limiting the arrest force to 6 kN.

Complementary suggestions for fall protection equipment

Working at height means living with an open drop underfoot with every move. A single lapse on a roof, a lift or a steel frame can turn into a fall of several metres. On this type of job site, the worker wears full personal protective equipment: a safety harness (FPH140101XCALP) connected to the anchor point, protective gloves (GS21TXUFNLTC) suited to the task, safety glasses (YASF401), a protective helmet (TA82) against impacts, fitted with its retention strap (TA80CS) to stay in place at height and a high-visibility work garment suited to work at height (VV6991).

To build the complete fall protection system, connect this anchor to an ExoFit harness (FPH140103XCALP), linked by an energy-absorbing lanyard (FPL5400) or a self-retracting lifeline (FPLR3101547); depending on the surface, complete it with another anchor (FPA822) or, for another opening, a removable for door or window frames (FPA831). Also plan a rescue Rollgliss R550 device for height with a hand wheel and integrated hoist (FPLR550, 100 ft of rope), and mark off the work zone with a DANGER barricade tape (ECT3YE7), supplemented by a sign "Safety harness mandatory" (ECO130).
