Removable adjustable anchor for door or window frame, 310 lb max
FPA831
$1,222.15
DBI-SALA removable adjustable anchor, 21½ to 51½ in, for a door or window frame. Tool-free, 310 lb capacity, i-Safe label.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

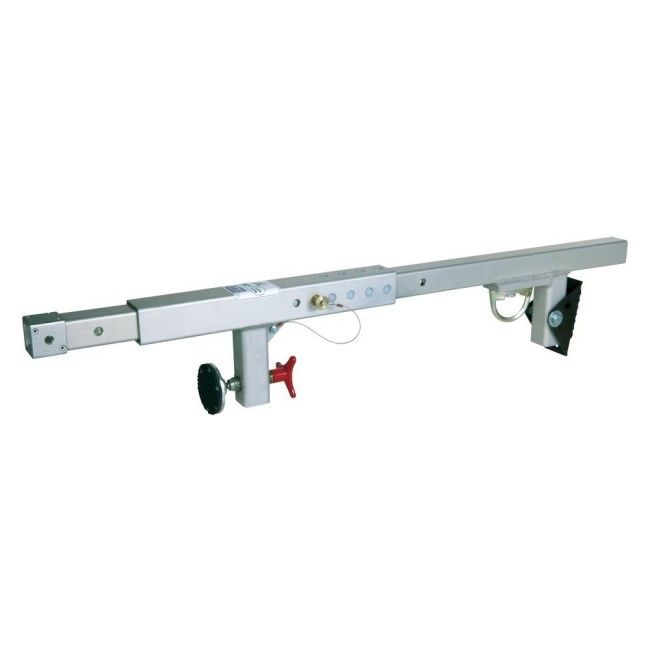

Removable adjustable anchor for door or window frame
The DBI-SALA removable adjustable anchor installs into a door or window frame and provides a quick fall protection anchorage point, with no damage to the structure. Lightweight, portable and tool-free, it adjusts to an opening of 21½ in to 51½ in (54.6 cm to 130.8 cm) and removes easily once the work is done. It is the ideal solution for occasional indoor interventions.
This anchor is designed to withstand static forces of 5000 lb (22 kN) and meets the requirements of the ANSI Z359.18 Type A and OSHA 1910.140 standards. The maximum worker weight is 310 lb (140 kg), including clothing, tools and equipment. DBI-SALA manufacturer codes: 2100080 (3M: 70007439592). Sold individually.
Advantages of the removable frame anchor
Convenient and reusable, this frame anchor provides a safe, quick-to-fit fall protection attachment point, with no drilling or damage, ideal for indoor work near an opening.
Features and safety of the frame anchor
- Installs into a door or window frame, tool-free
- Adjustable from 21½ in to 51½ in (54.6 cm to 130.8 cm)
- Withstands static forces of 5000 lb (22 kN)
- Compliant with ANSI Z359.18 Type A and OSHA 1910.140
- Worker capacity: 310 lb (140 kg), equipment included
- Aluminum and zinc-plated steel anchor; galvanized carbon steel D-ring
- Dimensions: length 56.36 in, width 7.12 in; weight 14 lb (6.3 kg)
- Temperature range: -40 °F to 140 °F (-40 °C to 60 °C)
- i-Safe label for inspection tracking
Job sites and industries where this anchor is required
- Indoor work near a door or window
- Building renovation and maintenance
- Occasional interventions with no structural drilling
- Any work at height requiring a temporary frame anchor
About the anchorage point and its installation
This anchor installs in the opening of a door or window frame: adjust it to the opening width, then lock it firmly. Caution: it must be installed at the bottom of the door or window opening. As with any fall protection anchorage point, assess the fall distance, the free clearance below the worker, the rescue measures and the anchor strength (5000 lb). No tool is required for fastening.
Removable anchor inspection
The worker is responsible for a routine inspection before each use: look for any sign of degradation, wear, malfunction or breakage. Replace the removable anchor at the first sign of failure. This anchor should also be inspected periodically by a qualified person other than the user; the more demanding the conditions, the more frequent the inspection. Any equipment subjected to a fall or impact must be removed from service. Sylprotec offers a fall protection equipment inspection service; see the Services tab.
FAQ about the removable frame anchor
Here are the most frequent questions about the adjustment, capacity and fitting of this removable anchor for a door or window.
What opening width does this anchor cover?
It adjusts to an opening of 21½ in to 51½ in (54.6 cm to 130.8 cm), tool-free.
What load does it support?
It withstands static forces of 5000 lb (22 kN) and suits a worker with a maximum weight of 310 lb (140 kg).
Where should it be installed in the frame?
At the bottom of the door or window opening, firmly locked according to the manufacturer's instructions.
Suggested anchorage and fall protection products
To build a complete fall protection system, this frame anchor combines with the rest of the protection chain. Depending on the support and the type of work, you will choose a frame, temporary, reusable or permanent anchor, then the associated equipment.
Also consider a class A harness (FPH1000A), a panic-lock grab (FPACC), a vertical lifeline rope (FPAC), the complete roofer kit (FPK50), a stainless permanent anchorage connector (FPA826), a temporary concrete anchor (FPAF075N), a reusable roof anchor (FPA827) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPA831
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Anchorage & connectors
- Name of the product
- Removable anchoring device
- Product code
- FPA831
- Approved/Certified
- Meets the requirements of: ANSI Z359.18 TYPE A and OSHA 1910.140
- Manufacturer
- 3M (TM)
- Country of origin
- United State of America
- Reusable
- Reusable with careful inspection and proper installation
- Recommended use temperature
- Operating temperature -40°F to 140°F /-40°C to 60°C
- Features
- For door and window widths from 21 ½" to 51 ½ / 54.6 cm to 130.8 cm
- Characteristic adding safety
- Minimum breaking strength: 3,600 lb
- Comfort features
- Lightweight and portable and easy to install by one person
- Includes
- With D-ring
- Worker’s weight
- 310 lb / 140 Kg maximum, with tools and equipment
- Material1
- Galvanized steel
- Material2
- Aluminum
- Washable
- Hand wash with warm water and soap
- Length (in/cm)
- 22 in / 55.88 cm
- Width (in/cm)
- 8.5 in / 21.6 cm
- Height (in/cm)
- 3.25 in / 8.25 cm
- Weight (lb/kg)
- 7.6 lb / 3.5 Kg
- Sold by
- Unit
- Color
- Gray/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight supported is 310 lb / 141 kg, which includes the weight of tools and any other equipment carried by the worker
