Emergency “Exit” light in English, 120V without battery, meets CSA. Steel casing, simple or double face.

English "Exit" Emergency Sign 120 V Without Battery, Steel Casing

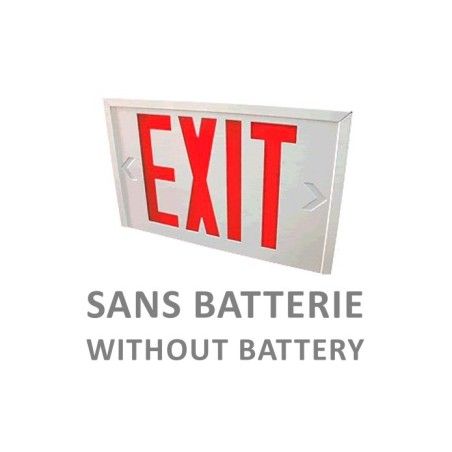

This AimLite English "Exit" emergency exit sign marks an emergency exit with red text in a sturdy white steel casing. Compliant with the CSA standard, it is the economy model without an internal battery, intended for customers outside Quebec. The sign is lit by very low-consumption, long-life LED bulbs.

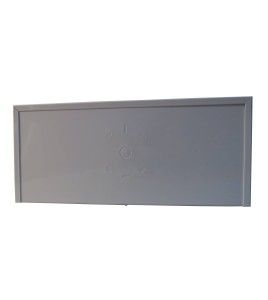

It includes two sliding faceplates with the "Exit" cut-out, allowing single-face (wall) or double-face (ceiling) installation. Each plate is held by a screw and fitted with pre-cut directional arrows, to be punched out as needed to indicate the evacuation direction.

Power Supply of the Battery-Free Model

The sign requires a 120 V 60 Hz supply. Without an internal battery, it must be connected to a 6 V, 12 V or 24 V DC back-up supply to stay lit during a power failure.

Important: English Sign for Outside Quebec

In Quebec, exit signs must be in French (« Sortie ») ; "Exit" signs are not accepted. This item is intended for customers outside Quebec. For French signs, see the LUM (without battery) and LUMB (with battery) items.

Dimensions and Installation of the Exit Sign

Dimensions : 12 in W × 7.75 in H × 2.5 in D (30.5 × 20 × 6.5 cm). The sign mounts on the wall (single-face) or ceiling (double-face) thanks to its sliding faceplates.

Buildings and Sectors Where This Sign Is Required

Exit signs are required in most buildings that host the public or workers :

• Commercial buildings, offices and institutions.
• Factories, warehouses and industrial sites.
• Schools, hospitals and care facilities.
• Residential buildings, hotels and municipal facilities.

FAQ About the Battery-Free Exit Sign

Is this sign accepted in Quebec ?

No, in Quebec signs must be in French (« Sortie »). This "Exit" version is intended for customers outside Quebec.

How does it stay lit during a power failure ?

Without an internal battery, it must be connected to a 6 V, 12 V or 24 V DC back-up supply.

Can it be ceiling-mounted ?

Yes, double-face thanks to the two sliding faceplates ; single-face for wall installation.

Suggested Complementary Emergency Lighting Equipment

To complete your emergency lighting installation, see also a battery version (LUMBA), a French model (LUM), a bilingual model (LUMB), a pictogram sign (LUMRMB), a combo unit (LU36CLED), a tritium sign (LUMT), a back-up cell (LB65), a LED kit (LALED). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
