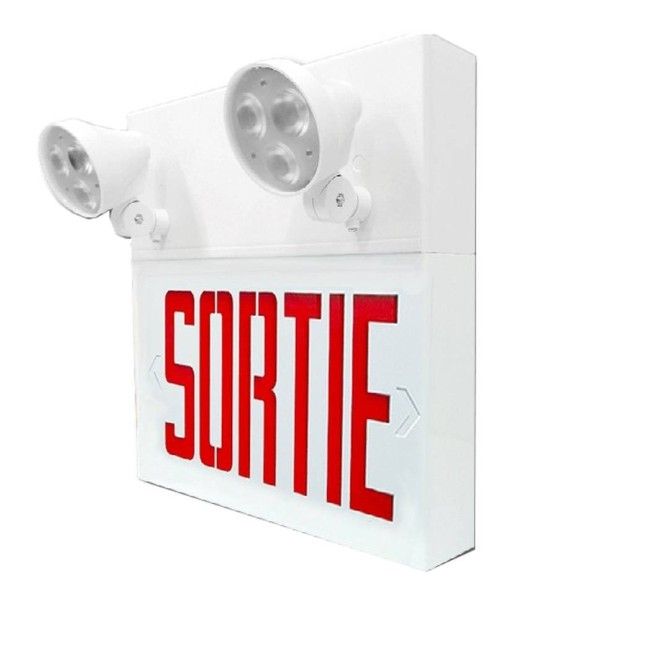

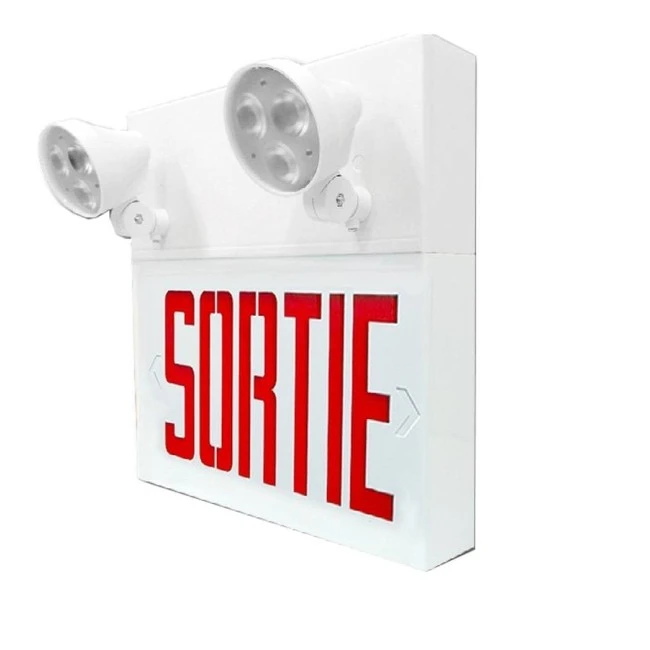

Combo emergency exit light with 2 LED spotlights, battery included.
LU36CLED
$389.40
Combo "Sortie" emergency lighting unit with 2 PAR18 LED spotlights (2 W each), slim steel casing, 6 V battery included (LB65). CSA 22.2 #141 and C860 compliant.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Combo "Sortie" Emergency Light Unit With 2 LED Spotlights
This combo emergency lighting unit brings together a "Sortie" sign and 2 LED spotlights, battery included, in a slim casing that fits most installations. Made by AimLite (model CSST-2L) and compliant with CSA 22.2 No. 141 and C860, it keeps the "Sortie" sign permanently lit ; during a failure, the two spotlights switch on automatically to light the evacuation path while the sign stays illuminated.
The two adjustable PAR18 LED spotlights draw only 2 W each and emit ultra-bright white light, while the backlit "Sortie" sign uses 2 W. LEDs are far less energy-hungry than traditional incandescent bulbs.
Power Supply and Back-Up Autonomy
The unit requires a permanent 120 V or 347 V AC supply (voltage chosen at installation). It contains a connected 6 V 5 Ah battery (LB65) ; during a failure, the 6 V 36 W unit powers the lighting for 30 minutes as required by law (up to 4 hours with power loss). The unit can also power other remote signs or spotlights. The circuit board is protected against voltage drops and short circuits.
Casing, Installation and Testing of the Unit
The casing is 20-gauge steel coated with white powder paint, with universal distribution holes and keyhole slots. The unit installs three ways : flat wall, perpendicular wall or ceiling (positioning plate included). The "Sortie" faceplate has pre-cut directional arrows to punch out as needed. The spotlights are made of impact-resistant thermoplastic. A side switch tests the unit, and LED indicators show AC power and battery charging.
Buildings and Sectors Where This Sign Is Required
Exit signs are required in most buildings that host the public or workers :
- Commercial buildings, offices and institutions.
- Factories, warehouses and industrial sites.
- Schools, hospitals and care facilities.
- Residential buildings, hotels and municipal facilities.
FAQ About the Combo "Sortie" LED Unit
What happens during a power failure ?
The two LED spotlights switch on automatically to light the evacuation path and the "Sortie" sign stays lit for at least 30 minutes.
How many ways can it be installed ?
Three ways : flat wall, perpendicular wall or ceiling.
Which battery does it use ?
A 6 V 5 Ah battery (LB65), included and connected.
Suggested Complementary Emergency Lighting Equipment
To complete your emergency lighting installation, see also a batteryless (LUM), a battery (LUMB), a combo (LU36C), an English (LUMA), a pictogram (LUMRMB), a green (LUMRC), a cell (LB65), a kit (LALED). Under "Accessories" at the bottom of the page.
LU36CLED
Data sheet
- Product group
- Safety equipment
- Main category
- Fire protection
- Sub category
- Emergency lighting and accessories
- Product code
- LU36CLED
- Approved/Certified
- Compliant with CSA standard 22.2 #141 and C860
- Manufacturer
- AimLite
- Includes
- Battery included
- Power supply requirements
- 120 V or 347 V AC
- Dimensions of the product
- The dimensions of the product depend on the size selected by the customer.
- Length (in/cm)
- 18.5 in / 47 cm
- Width (in/cm)
- 2.5 in / 6.5 cm
- Height (in/cm)
- 13 in / 33 cm
- Weight (lb/kg)
- 13.6 lb / 6.2 Kg
- Color
- White/Red
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
