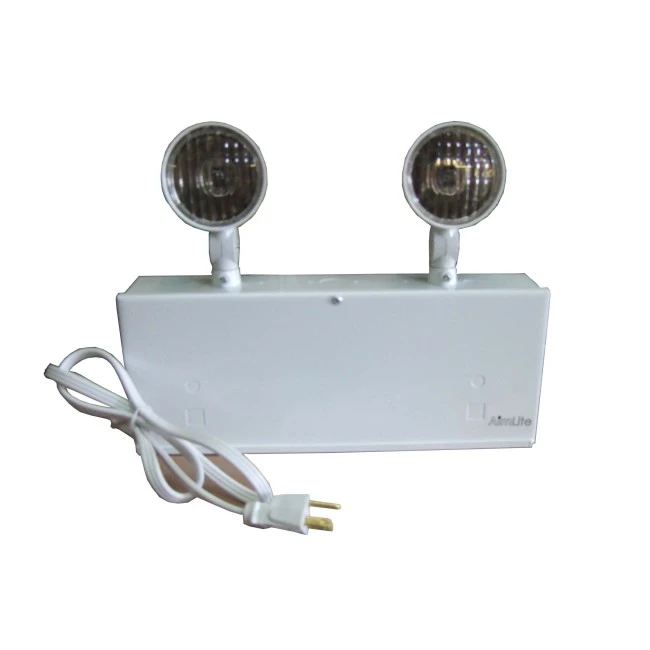

Emergency light unit 6 V 36 W with 2 spotlights

6 V 36 W Emergency Lighting Unit With 2 spotlights of 9 W DC

This 6 V 36 W emergency lighting unit is equipped with 2 spotlights of 9 W DC that switch on automatically during a power failure to light the evacuation path. Compliant with ACNOR (CSA) requirements, it has a sealed lead-dioxide battery and a dust-proof relay ; it requires no maintenance and offers a service life of about 5 years.

Powered by a 120 V AC source in normal operation, the unit switches to its battery during a failure. It includes one 6 V 5 Ah battery (LB65). The higher capacity of this model suits installations requiring greater autonomy or a larger number of remote lighting heads.

Benefits of the 36 W Emergency Lighting Unit

Beyond emergency lighting, this unit offers maintenance-free reliability and compliance.

Two Adjustable 9 W Spotlights

The two 9 W DC spotlights light the evacuation path as soon as a power failure occurs.

Maintenance-Free Sealed Battery

The sealed lead-dioxide battery and dust-proof relay ensure reliable operation for about 5 years, with no maintenance.

Buildings and Sectors Where This Unit Is Used

Emergency lighting units are required in most buildings that host the public or workers :

• Commercial buildings, offices and institutions.
• Factories, warehouses and industrial sites.
• Schools, hospitals and care facilities.
• Residential buildings, hotels and municipal facilities.

Real Wattage and Sylprotec Transparency

For the sake of transparency, Sylprotec informs its customers that there is a difference between the wattage advertised by the manufacturer and the real wattage. Manufacturers calculate the wattage over an operating time of only 30 minutes (the minimum required in Quebec for an emergency lighting unit), whereas the connected devices are measured in watt-hours. The real wattage of this unit is therefore about 30 watt-hours.

Power Supply and Battery of the 6 V Unit

The unit runs on a permanent 120 V AC supply and contains one 6 V 5 Ah battery (LB65). During a failure, the battery powers the two spotlights to provide the regulatory emergency lighting.

FAQ About the 6 V 36 W Emergency Lighting Unit

What happens during a power failure ?

The two spotlights switch on automatically, powered by the included battery, to light the evacuation path.

Does the unit require maintenance ?

No, the sealed battery and dust-proof relay require no maintenance, for a service life of about 5 years.

Which battery does this unit use ?

It includes one 6 V 5 Ah battery (LB65).

Suggested Complementary Emergency Lighting Equipment

To complete your emergency lighting installation, see also a compact model (LU362LED), a medium model (LU12722MT), a 160W model (LU121602MT), a 200W model (LU122002MT), a 360W model (LU123602MT), a combo unit (LU36CLED), a pictogram sign (LUMRMB), a spare battery (LB65). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
