Single head remote spotlight with LED lamp, 6V to 12V, 3W.

Single-Head Remote Spotlight With LED Lamp for Emergency Lighting

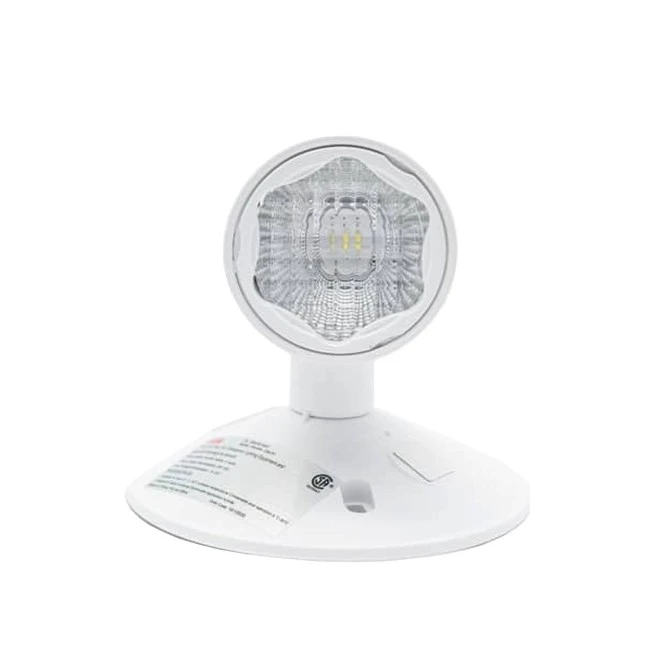

This single-head remote spotlight is fitted with a 3 W PAR18 LED lamp (2-pin base) that emits 310 lumens. Made by AimLite (model RMSM16-123WLJ) and compliant with CSA C22.2 #141, it lights an evacuation route when connected to an emergency lighting unit. The LED is energy-efficient and offers a long service life, reducing maintenance compared to an incandescent bulb.

The head can swivel and tilt, and its position locks by tightening the respective screws, to aim the beam precisely. The 5 in (12.7 cm) diameter cover plate installs on electrical junction boxes with two mounting holes. The plate and head are made of impact-resistant, UV-stabilized white thermoplastic.

Benefits of the Single-Head LED Spotlight

Beyond lighting, this spotlight combines energy savings with precise aiming.

Energy-Efficient, Durable LED Lamp

The 3 W PAR18 LED draws little power and lasts a long time while emitting 310 lumens, reducing maintenance and consumption.

Adjustable, Lockable Head

The head swivels and tilts, then locks with screws to aim the beam exactly where needed.

Buildings and Sectors Where This Spotlight Is Used

Emergency lighting spotlights equip buildings that must ensure lighting of evacuation routes :

• Commercial buildings, offices and institutions.
• Factories, warehouses and industrial sites.
• Schools, hospitals and care facilities.
• Residential buildings, hotels and municipal facilities.

Features of the Single-Head LED Spotlight

Single head with a 3 W PAR18 LED lamp (2-pin base), 310 lumens, running on 6 V or 12 V circuits (24 V on special order). 5 in (12.7 cm) diameter cover plate in impact-resistant, UV-stabilized white thermoplastic. CSA C22.2 #141 compliant. (Detailed dimensions in the "LUMT1LED info" PDF.)

FAQ About the Remote LED Spotlight

What is the brightness of the head ?

The 3 W PAR18 LED head emits 310 lumens.

Which circuits does it run on ?

On 6 V or 12 V circuits ; also available in 24 V on special order.

Is the head adjustable ?

Yes, it swivels and tilts, and its position locks by tightening the respective screws.

Suggested Complementary Emergency Lighting Equipment

To complete your emergency lighting system, see also a dual-LED spotlight (LUMT2LED), a single 9 W spotlight (LUMT1), a double 18 W spotlight (LUMT2), a 6V-LED unit (LU362LED), a combo unit (LU36CLED), a 200W unit (LU122002MT), a back-up cell (LB65) or a 12 V bulb (LA129). Under "Accessories" at the bottom of the page.
