LUMRMB

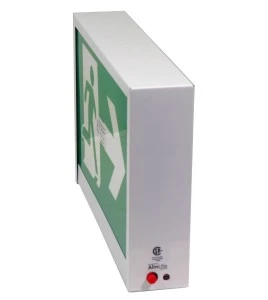

Green Running Man LED emergency exit sign, steel casing, with back-up battery

$189.00

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page.

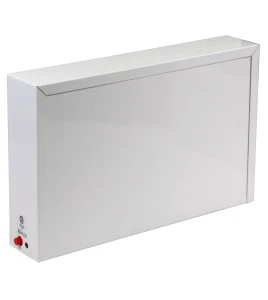

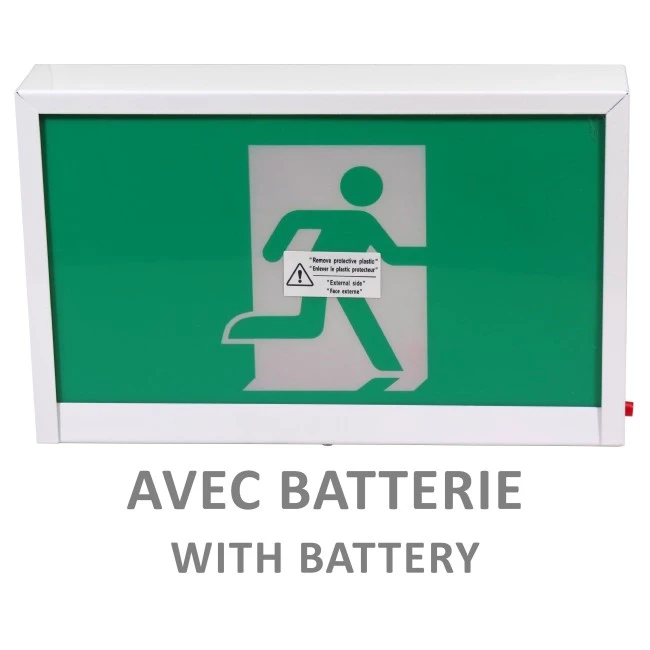

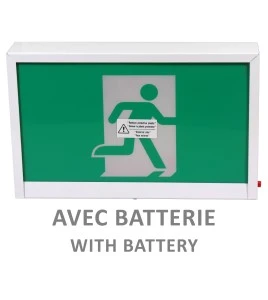

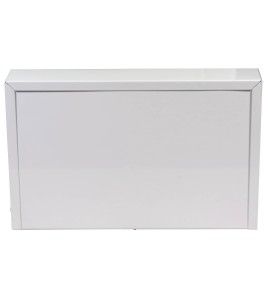

Green Running Man LED emergency exit sign with back-up battery. Durable steel casing with white powder coating.
Made by Aimlite. Manufacturer item number : RPNPUWHT-BAT.

Compliance :
Compliant with international standards ISO 7010:2011 Graphical symbols – Safety colours and safety signs – Registered safety signs and ISO 3864-1:2011 Graphical symbols – Safety colours and safety signs – Part 1: Design principles for safety signs and safety markings.

Certified compliant with Canadian standards CSA 22.2 No. 141-15 Emergency lighting equipment and CSA C860 Performance of internally lighted exit signs.

The green Running Man pictogram has been adopted by the National Building Code of Canada in 2010.The 2015 version, section 3.4.5.1 (2)(b)(c), requires conformity with ISO 3864-1 and ISO 7010. The green Running Man pictogram replaces traditional red EXIT signs.

Circuitry :
This sign requires a continuous 120 V or 347 V AC power supply.

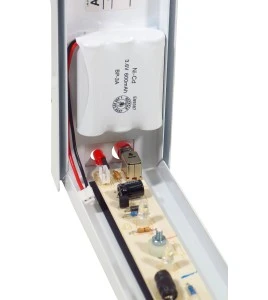

This model includes an internal sealed Ni-Cad back-up battery. In case of power outage, the sign will remain lit for 90 minutes.

The sign consumes 2.0 W.

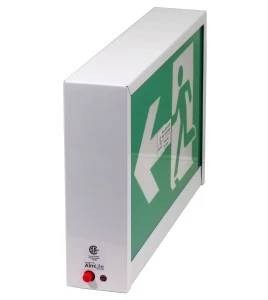

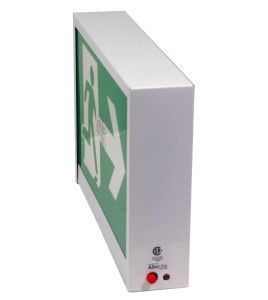

The sign features a test button and an indicator light on the side.

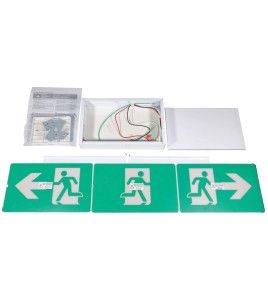

Contents :

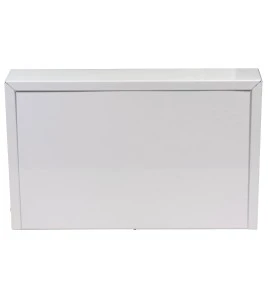

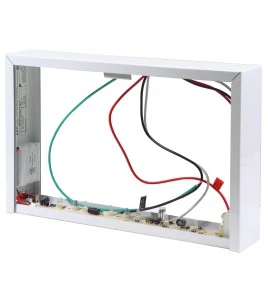

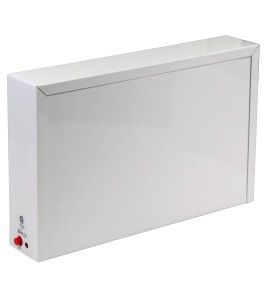

- One white powder-coated sign frame with LED strip and back-up battery;

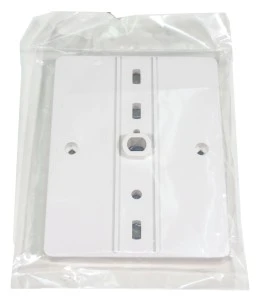

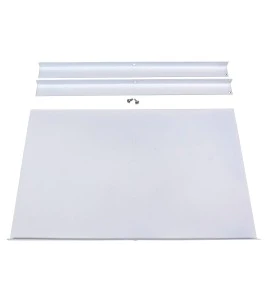

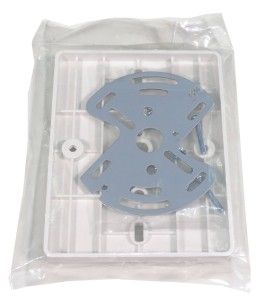

- One back plate with spider knockouts;

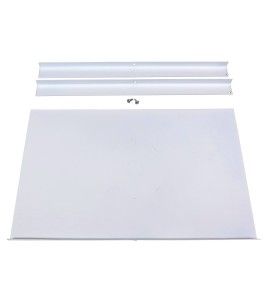

- Two faceplates with screws;

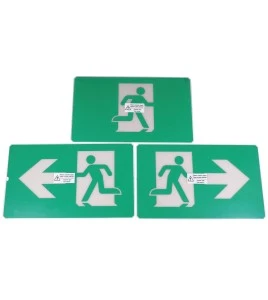

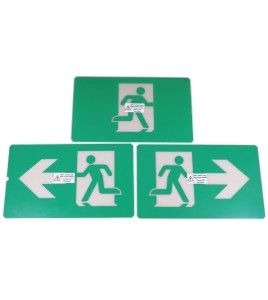

- One centered pictogram;
- One pictogram with right arrow;

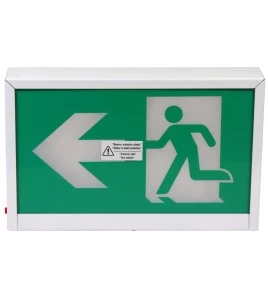

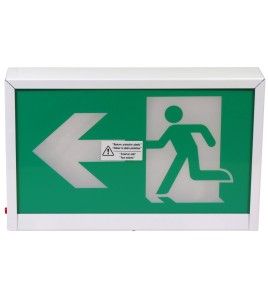

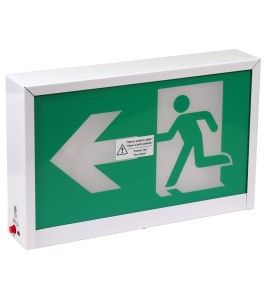

- One pictogram with left arrow;

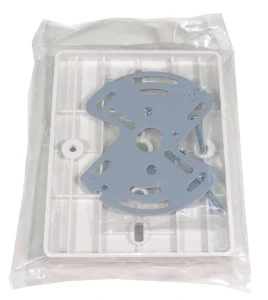

- One universal canopy.

Configuration :

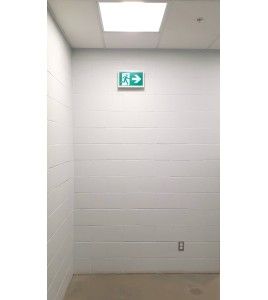

This sign may be single-faced for wall mounting, or double-faced for side mounting and ceiling mounting. The pictograms can be swapped by unscrewing the faceplates.

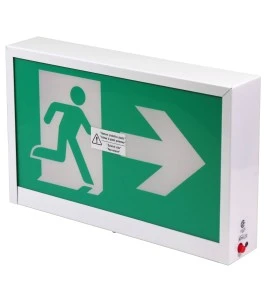

Use the centered pictogram when the sign is mounted directly above the emergency exit or in a hallway that leads directly to the exit. Use the pictograms with arrows to indicate the direction of escape when the sign is mounted in a corner or at an intersection.

Size of sign :
width 12 3/16" X height 7 11/16" X depth 2"
(width 31 cm X height 19.5 cm X depth 5 cm)

Size of lighted faceplate :
width 11 3/8" X height 6 5/16”
(width 29 cm X height 16 cm)

Use only indoors in a dry environment.
Do not use outdoors or in a humid environment.

Type of product Safety equipment
Main category Fire protection
Sub category Emergency lighting and accessories
Name of the product Green Running Man LED emergency exit sign
Product code LUMRMB
Approved/Certified Compliant ISO 7010:2011, ISO 3864-1:2011, CSA 22.2 No. 141-15, CSA C860
Manufacturer AimLite
Includes Battery included
Power supply requirements 120 V or 347 V AC
Material Enamelled steel
Height (in/cm) 8 in / 20.32 cm
Length (in/cm) 12 in / 30.48 cm
Width (in/cm) 2.25 in / 5.7 cm
Weight (lb/kg) 6 lbs / 2.7 Kg
Color Green/White
Dimensions of the product The dimensions of the product depend on the size selected by the customer.
Return conditions No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page.

LUMRM(B) data sheet (EN)

Technical data sheet for LUMRM and LUMRMB Running Man emergency exit signs, by AimLite (English only).

Download (181.1k)

Permitted voltage drop (EN)

Voltage drop tables per Canadian Electrical Code (English only).

Download (66.59k)
