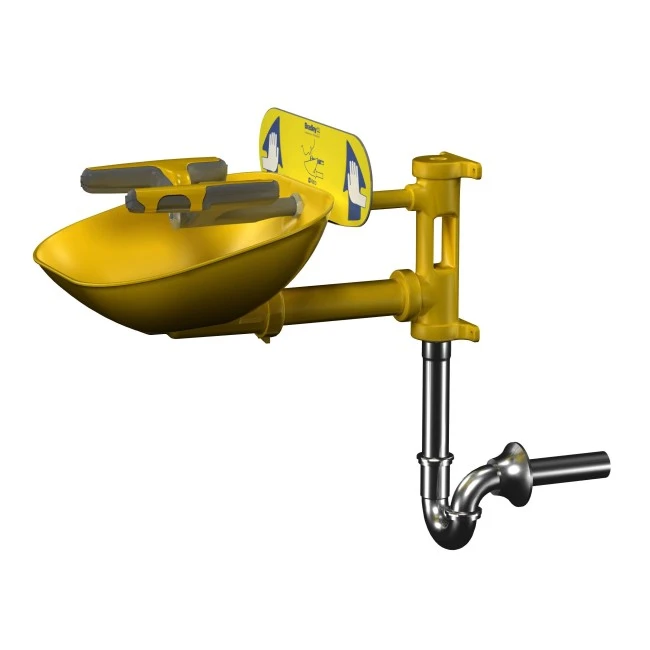

Bradley wall-mounted Halo eye/face wash with plastic bowl, tailpiece and P-trap, certified ANSI Z358.1-2009.
PD19224FWPT
$700.00
The Bradley Halo wall-mounted eye and face wash PD19224FWPT is designed to provide fast, effective, and safe emergency rinsing for the eyes and face in professional environments exposed to dust, particles, or hazardous substances. With its wall-mounted design, large activation handle, plastic bowl, drain pipe, and P-trap, it is a complete and reliable solution for laboratories, medical facilities, workshops, and industrial environments.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Bradley wall-mounted Halo eye/face wash station, with a yellow plastic bowl, tailpiece and P-trap.
Certified ANSI Z358.1-2009. Minimum flow exceeds 3.0 GPM (11.4 L/min). It does not include a device for controlling water temperature.
Ideal for laboratories, medical facilities, industries, workshops, and any other places where workers risk being exposed to dust, particulates or dangerous materials.
This eye/face wash station is wall-mounted and keeps the floor area cleared. Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. The spray heads have a unique elongated design, with multiple water jets, that cover more area than traditional face wash spray heads and facilitate face rinsing. This eye/face wash station is also barrier-free, for use by people in wheelchairs.
The wash station has separate pipes for water intake and drain, and ensures a safe, steady flow of water, even if the water supply pressure varies between 30 and 90 PSI. The bowl is made of yellow impact-resistant plastic. The spray heads are equipped with strainers to filter water particulates, and with antimicrobial protection. Yellow and gray plastic caps protect the spray heads from dust. Pipes are made of stainless steel.
The kit includes:
- Parts necessary for the installation of the eye/face wash station and the connection to a water supply (some parts are not supplied, see instructions)
- 1 universal safety sign to indicate the location of the emergency wash station
- 1 inspection tag
- 1 trilingual instruction booklet (English, French, Spanish). PDF version is also available, see below.
The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).
The Bradley Halo wall-mounted eye and face wash station, equipped with a plastic bowl, hose, and drain, is an essential asset for workplace safety. Compliant with ANSI Z358.1-2009 standards, it provides quick and effective intervention in the event of an accident, ensuring optimal protection for your team's eyes and face. Choose a reliable and durable solution to ensure everyone's peace of mind.
Make safety a priority.
Workplace safety and emergency eye and face rinsing
When an employee is exposed to contaminants affecting the eyes or face, rapid response is essential. This wall-mounted eye and face wash provides immediate access to emergency rinsing without taking up floor space. Its multi-stream spray design covers a wider surface area than many traditional face wash models, making facial rinsing easier while also providing effective eye flushing.
Compliance standards and professional use
The PD19224FWPT model is ANSI Z358.1-2009 approved and provides a minimum flow rate greater than 3.0 GPM (11.4 L/min) at 30 PSI. It can be used in laboratories, clinics, industrial settings, and other workspaces requiring compliant eye and face rinsing equipment. However, this model does not automatically control water temperature. The manufacturer therefore recommends adding a thermostatic valve to help maintain a proper flushing temperature during the minimum recommended 15-minute rinse period.
Technical specifications and added value
• Product code: PD19224FWPT
• Brand: Bradley
• Manufacturer model: S19224FWPT
• Type: wall-mounted eye and face wash
• Compliance: ANSI Z358.1-2009
• Minimum flow rate: greater than 3.0 GPM (11.4 L/min) at 30 PSI
• Compatible supply pressure: 30 to 90 PSI
• Activation: large handle allowing one-motion activation
• Accessibility: usable by people in wheelchairs
• Spray heads: multi-stream design for wider facial coverage
• Spray head construction: filters to retain water particles and antimicrobial protection
• Dust protection: yellow and grey plastic covers
• Bowl: yellow impact-resistant plastic
• Drain system: drain pipe and P-trap for wastewater
• Piping: stainless steel
• Important feature: no automatic temperature control
• Key benefit: complete eye and face rinsing solution with integrated drainage components
Professional use and operational efficiency
• Install the unit securely on a wall according to the manufacturer’s instructions.
• Connect the assembly to a compatible water supply and drain line.
• In an emergency, activate the unit by pushing the large handle.
• Position the eyes and face in the spray to begin rinsing immediately.
• Continue flushing according to applicable safety procedures and, whenever possible, confirm that the water temperature remains suitable.
Storage, maintenance, and service life
• Regularly inspect the spray heads, covers, bowl, drain components, and piping.
• Clean the nozzles and components to prevent residue buildup.
• Make sure the unit remains unobstructed and ready for use at all times.
• Periodically check the flow rate and overall condition of the system.
• Replace worn or damaged parts to maintain reliable operation.
FAQ about the PD19224FWPT eye and face wash
Is this unit suitable for rinsing the face as well as the eyes?
Yes. Its multi-stream spray design provides wider coverage, making it easier to rinse the face while also effectively flushing the eyes.
Does this model include drainage components?
Yes. It includes a drain pipe and a P-trap for wastewater, making it a more complete wall-mounted installation.
Is the water temperature automatically controlled?
No. This model does not include a thermostatic valve, so the manufacturer recommends adding one to improve flushing comfort and safety.
Do you need additional safety equipment?
Check out the following items: CDN Eye Wash Poster (ECU505-812), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505-235), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).
Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).
PD19224FWPT
Data sheet
- Product group
- Safety equipment
- Main category
- First aid and emergency showers
- Sub category
- Emergency showers
- Sub sub category
- Eyewash & face wash stations
- Name of the product
- Halo wall mounted eye and face shower
- Product code
- PD19224FWPT
- Sort by keywords
- Plastic wall-mounted face shower
- ANSI Requirements
- Compliance ANSI Z358.1-2009
- Manufacturer
- Bradley
- Features
- This device does not include a thermostatic valve, therefore there is no automated water temperature control
- Additional Features
- The heads are equipped with filters to retain water particles and antimicrobial protection
- Comfort features
- The unique design of the heads, with multiple water jets, covers a wider area than traditional face shower models, making it easier to wash the face
- Includes
- Parts necessary for the installation of the eyewash station and the connection to a water supply (some parts are not supplied, see instructions)
- Type of emergency
- Eye/Face Wash
- Installation specifications
- This eyewash can be installed on a wall, without cluttering the floor
- Activation type
- Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. This eye wash station is also barrier-free, for use by people in wheelchairs.
- Operating flow rate
- Allows a minimum flow of 3 GPM (11.4 L/min) at 30 PSI
- Material1
- The piping is made of stainless steel. The bowl is made of impact resistant yellow plastic.
- Material2
- Yellow plastic lids
- Length (in/cm)
- 24 in / 60.9 cm
- Width (in/cm)
- 24 in / 60.9 cm
- Height (in/cm)
- 24 in / 60.96 cm
- Weight (lb/kg)
- 10 lb / 4.5 Kg
- Sold by
- Unit
- Return conditions
- No returnable
