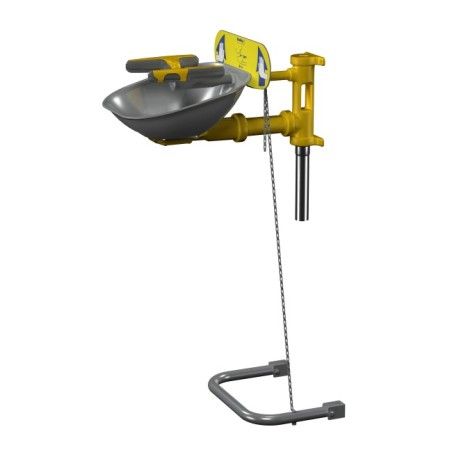

Bradley wall-mounted Halo eye/face wash with pedal, steel bowl, tailpiece and P-trap, certified ANSI Z358.1-2009.

The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards. A thermostatic valve keeps rinsing water at a lukewarm temperature. Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).

Workplace safety and emergency eye and face rinsing

When an employee is exposed to contaminants affecting the eyes or face, rapid response is essential. This wall-mounted eye and face wash provides immediate access to emergency rinsing without taking up floor space. It can be activated either by the large handle or by the foot pedal, allowing hands-free use when needed. Once activated, the unit remains on until it is manually turned off, making continuous rinsing easier during an emergency.

Compliance standards and professional use

The PD19224Y model is ANSI Z358.1-2009 approved and provides a minimum flow rate greater than 3.0 GPM (11.4 L/min) at 30 PSI. It can be used in laboratories, medical environments, workshops, garages, airports, processing plants, paper mills, and other workspaces requiring compliant eye and face rinsing equipment. However, this model does not automatically control water temperature. The manufacturer therefore recommends adding a thermostatic valve to help maintain a proper flushing temperature during the minimum recommended 15-minute rinse period.

Technical specifications and added value

• Product code: PD19224Y
• Brand: Bradley
• Manufacturer model: S19224Y
• Type: wall-mounted eye and face wash
• Compliance: ANSI Z358.1-2009
• Minimum flow rate: greater than 3.0 GPM (11.4 L/min) at 30 PSI
• Compatible supply pressure: 30 to 90 PSI
• Activation: by large handle or foot pedal
• Operation: remains on until manually shut off
• Accessibility: usable by people in wheelchairs
• Spray heads: multi-stream design for wider facial coverage
• Spray head construction: filters to retain water particles and antimicrobial protection
• Bowl: durable stainless steel
• Dust protection: yellow or grey plastic covers
• Drain system: drain connection and P-trap for wastewater
• Piping: galvanized steel with yellow Bradtect coating
• Important feature: no automatic temperature control
• Key benefit: dual activation mode for more flexible hands-free emergency rinsing

Professional use and operational efficiency

• Install the unit securely on a wall according to the manufacturer’s instructions.
• Connect the assembly to a compatible water supply and drain line.
• In an emergency, activate the unit using either the handle or the foot pedal.
• Position the eyes and face in the spray to begin rinsing immediately.
• Continue flushing according to applicable safety procedures and manually shut the unit off once the emergency response is complete.

Storage, maintenance, and service life

• Regularly inspect the spray heads, covers, bowl, foot pedal, P-trap, and piping.
• Clean the nozzles and components to prevent residue buildup.
• Make sure the pedal, handle, and fittings operate correctly.
• Periodically check the flow rate and overall condition of the system.
• Replace worn or damaged parts to maintain reliable operation.

FAQ about the PD19224Y eye and face wash

What is the advantage of foot-pedal activation?

It allows the unit to be activated quickly while keeping both hands free, which can be useful during an emergency.

Does the unit stay on after activation?

Yes. According to the available information, it remains on until it is manually turned off.

Is this model suitable for demanding industrial environments?

Yes. It is designed for laboratories, workshops, garages, airports, plants, and other professional environments where rapid eye and face rinsing is required.
