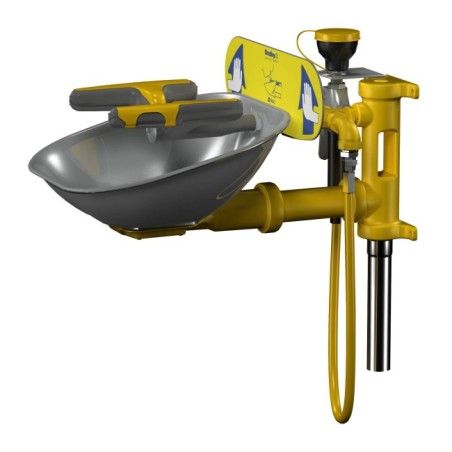

Bradley wall-mounted Halo eye/face wash with stainless steel bowl, P-trap and handheld spray hose, certified ANSI Z358.1-2009.

Bradley wall-mounted Halo eye/face wash station (S19224P).

With a stainless steel bowl, a handheld spray hose, a tailpiece and a P-trap.

Certified ANSI Z358.1-2009. Minimum flow exceeds 3.0 GPM (11.4 L/min). It does not include a device for controlling water temperature. The handheld spray hose is considered a supplement for the eye/face wash station and does not replace a full-body emergency shower.

Ideal for laboratories, medical facilities, industries, workshops, garages, airports, food processing plants, paper mills, and any other places where workers risk being exposed to dust, particulates or dangerous materials.

This eye/face wash station is wall-mounted and keeps the floor area cleared. Its single-step activation simply requires a push on the large handle, leaving a user’s hands free once turned on. The spray heads have a unique elongated design, with multiple water jets, that cover more area than traditional face wash spray heads and facilitate face rinsing. The handheld 2.4 m (8 ft) spray hose allows to rinse the face and the body. This eye/face wash station is also barrier-free, for use by people in wheelchairs.

The wash station has separate pipes for water intake and drain, and ensures a safe, steady flow of water, even if the water supply pressure varies between 30 and 90 PSI. The bowl is made of heavy-duty stainless steel. The spray heads are equipped with strainers to filter water particulates, and with antimicrobial protection. Yellow and gray plastic covers protect the spray heads from dust. Pipes are made of galvanized steel protected by a yellow Bradtec covering.

The kit includes:

• Parts necessary for the installation of the wash station and the connection to a water supply (some parts are not supplied, see instructions)
• 1 universal safety sign to indicate the location of the emergency wash station
• 1 inspection tag
• 1 trilingual instruction booklet (English, French, Spanish). PDF version is also available, see below.

The manufacturer recommends the installation of a thermostatic valve in order to comply with ANSI Z358.1-2009 standards.A thermostatic valve keeps rinsing water at a lukewarm temperature.  Rinsing water should not be too cold (for more comfort while rinsing for the minimum required rinsing time of 15 minutes) nor too hot (to avoid aggravating eye or face injuries and to avoid scalding).

Designed with a durable steel bowl and equipped with a manual washing system that meets the ANSI Z358.1-2009 standard, this station ensures efficient and prompt cleansing in case of an emergency. Provide your team with peace of mind through reliable and high-quality equipment.

 Make safety a priority.

Workplace safety and emergency eye and face rinsing

When an employee is exposed to contaminants affecting the eyes or face, rapid response is essential. This wall-mounted eye and face wash provides immediate access to emergency rinsing without taking up floor space. Its multi-stream spray design covers a wider surface area than many traditional face wash models, making facial rinsing easier, while the 2.4 m (8 ft) personal wash hose provides additional rinsing for the face and body.

Compliance standards and professional use

The PD19224P model is ANSI Z358.1-2009 approved and provides a minimum flow rate greater than 3.0 GPM (11.4 L/min) at 30 PSI. It can be used in laboratories, medical environments, workshops, garages, airports, processing plants, and other workspaces requiring compliant eye and face rinsing equipment. The hand-held personal wash hose is considered an accessory to the eye and face wash and does not replace an emergency body shower. This model does not automatically control water temperature. The manufacturer therefore recommends adding a thermostatic valve to help maintain a proper flushing temperature during the minimum recommended 15-minute rinse period.

Technical specifications and added value

• Product code: PD19224P
• Brand: Bradley
• Manufacturer model: S19224P
• Type: wall-mounted eye and face wash
• Compliance: ANSI Z358.1-2009
• Minimum flow rate: greater than 3.0 GPM (11.4 L/min) at 30 PSI
• Compatible supply pressure: 30 to 90 PSI
• Activation: large handle allowing one-motion activation
• Accessibility: usable by people in wheelchairs
• Spray heads: multi-stream design for wider facial coverage
• Spray head construction: filters to retain water particles and antimicrobial protection
• Bowl: durable stainless steel
• Dust protection: yellow and grey plastic covers
• Personal wash hose: 2.4 m (8 ft) for supplementary face and body rinsing
• Drain system: drain connection and P-trap for wastewater
• Piping: galvanized steel with yellow Bradtect coating
• Important feature: no automatic temperature control
• Key benefit: complete solution with eye, face, and supplementary manual rinsing capability

Professional use and operational efficiency

• Install the unit securely on a wall according to the manufacturer’s instructions.
• Connect the assembly to a compatible water supply and drain line.
• In an emergency, activate the unit by pushing the large handle.
• Position the eyes and face in the spray to begin rinsing immediately.
• Use the hand-held personal wash hose as needed for supplementary rinsing.
• Continue flushing according to applicable safety procedures and, whenever possible, confirm that the water temperature remains suitable.

Storage, maintenance, and service life

• Regularly inspect the spray heads, covers, bowl, wash hose, P-trap, and piping.
• Clean the nozzles and components to prevent residue buildup.
• Make sure the hand-held hose remains accessible and in good working condition.
• Periodically check the flow rate and overall condition of the system.

• Replace worn or damaged parts to maintain reliable operation.

FAQ about the PD19224P eye and face wash

Does the hand-held hose replace an emergency body shower?

No. According to the available information, the personal wash hose is an accessory to the eye and face wash and does not replace an emergency body shower.

Is this unit suitable for rinsing the face as well as the eyes?

Yes. Its multi-stream spray design provides wider coverage, making it easier to rinse the face while also effectively flushing the eyes.

What types of workplaces can benefit from this model?

It is suitable for laboratories, medical environments, workshops, garages, airports, processing plants, and other environments where rapid eye and face rinsing is required.

Do you need additional safety equipment?

Check out the following items: CDN Eye Wash Poster (ECU505), rigid plastic eye patches, 7.5 X 1.25 X 3.8 cm (PS511), sterile eye pads, 4.1 X 6.6 cm (PS514), Cederroth emergency eye wash solution (PD505), wall-mounted eye wash kit, 1 liter (PD520), wall mount for Cederroth eye wash solution (PD505S).

Under “Accessories” at the bottom of the page. If you're looking for work equipment, see the following products: Earplugs (OA101) and 3M N95 respirators (R8210).
