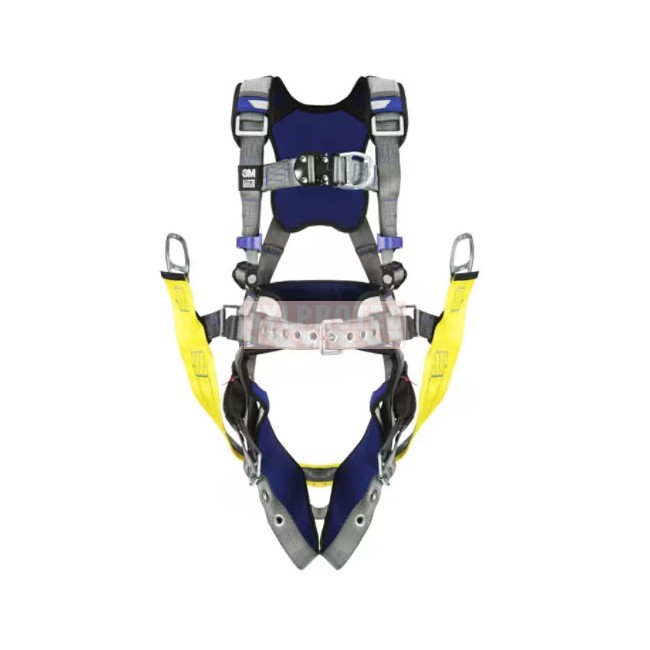

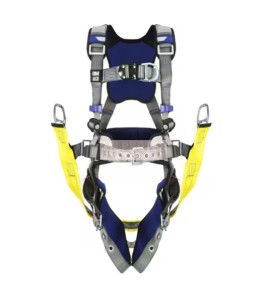

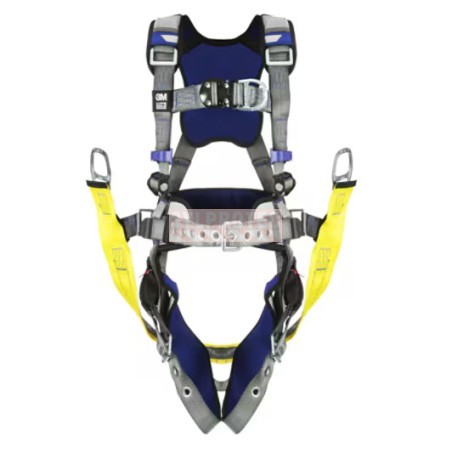

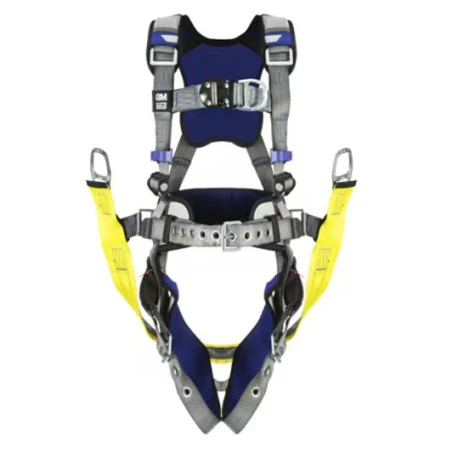

DBI-SALA X200 Vest Style harness class AELP Oil and Gas

Reference : FPH1402117CAELP

$767.20

Vest-style 3M DBI-SALA ExoFit X200 Class AELP (fall arrest + shoulder extraction + ladder climbing + seated positioning) harness for the oil and gas industry. Shoulder rescue D-rings, seat strap for suspension, patented double-locking buckles, stand-up dorsal ring, sub-pelvic strap. CSA Z259.10-18 compliant. Small, Medium, Large, X-Large.

Size: Large

Quantity

Compare

Estimate Shipping

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

More Info
Data Sheet

DBI-SALA X200 Vest Style harness class AELP Oil and Gas

The ExoFit X200 Class AELP (fall Arrest, shoulder Extraction, Ladder climbing and seated Positioning) harness by 3M DBI-SALA is designed for oil and gas professionals demanding reliability, comfort and safety during work at height and in suspension. This harness is vest style, with vertical shoulder straps for easy donning and optimal comfort. It features two shoulder D-rings for worker extraction and rescue, and a seat strap for comfortable seated positioning in suspension during prolonged work. Made in the USA, compliant with CSA Z259.10-18.

Size	Sylprotec Code	DBI-SALA Model	3M Purchase Code
Small	FPH1402115CAELP	1402115C	7012817855
Medium	FPH1402116CAELP	1402116C	7012817857
Large	FPH1402117CAELP	1402117C	7012817859
X-Large	FPH1402118CAELP	1402118C	7012817861

Technical description : features and components

This ExoFit X200 safety harness features a dorsal D-ring and a sternal D-ring with automatic vertical positioning (stand-up) and anti-slip plate, plus two shoulder D-rings for worker extraction and rescue. It also includes a seat strap allowing the worker to sit comfortably in suspension, separate from the fall arrest functions. The patented 3M double-locking quick-connect buckles keep the adjustment secure throughout the shift, eliminating frequent readjustments. The torso buckle is swivel and lockable. The sub-pelvic strap prevents orthostatic suspension syndrome in the event of a fall.

The 6,000 lb polyester webbing offers superior UV and chemical resistance. Zinc-plated alloy steel hardware is unpainted for easy visual inspection. Color-coded webbing simplifies donning. Available in: Small, Medium, Large, X-Large.

Load capacity and certified safety standards

Maximum load: 310 lb / 140.6 kg including clothing, tools and equipment. Compliant with CSA Z259.10-18 for the Canadian market. Made to order by 3M. Allow approximately 1 month lead time.

Materials : strength, durability and light weight

6,000 lb (27 kN) polyester webbing: superior resistance to acids and UV. Unpainted zinc-plated alloy steel hardware: facilitates visual defect inspection. Multi-color webbing: quick identification of anchor points and adjustments. Plastic tips on webbing ends: prevent fraying over time.

Application and recommended uses

Designed for the oil and gas industry: suspension work, climbing and prolonged seated positioning on structures, derricks and platforms. Also suitable for versatile work at height requiring shoulder D-ring rescue. Meets the requirements of Canadian Labour Code and CNESST (Quebec) regulations for work at height. Sizes available: Small, Medium, Large, X-Large.

Inspection and service life : verification guide

Inspect before each use: check for cuts, fraying, broken stitching and deformed hardware. Inspection by a qualified person is required at least annually. Recommended service life: 5 years with regular use. Any harness subjected to a fall must be removed from service and destroyed immediately. Sylprotec offers annual inspection by a qualified technician.

Care and cleaning to extend service life

Clean with mild soap and lukewarm water (max 37 C / 98.6 F). Never use bleach, solvents or abrasive products. Air dry away from direct sunlight. Store hanging in a clean, dry location away from chemicals and heat sources.

FAQ - Frequently Asked Questions

What does Class AELP mean?

Class AELP combines four functions: fall Arrest (dorsal D-ring), Extraction and rescue (shoulder D-rings), Ladder climbing / limited access (sternal D-ring) and seated Positioning (seat strap for comfortable suspension). This X200 Class AELP harness suits oil and gas workers who must climb, hold a seated suspension position and be extracted in an emergency.

What are the shoulder D-rings used for on this harness?

The two shoulder D-rings, located at the top of the shoulder straps, are used for worker extraction and rescue: they connect to a spreader bar to raise or lower the person in a vertical position during a recovery operation. The sternal D-ring is for guided ascent, the dorsal D-ring for fall arrest, and the seat strap for comfortable seated positioning in suspension.

Why is there about a 1 month lead time for this harness?

This model is made to order by 3M and is not kept in regular stock. Allow approximately 1 month from the order date. For an urgent need, contact Sylprotec: we can check availability and suggest an equivalent in-stock harness when possible.

Complementary Suggestions

To complete your fall protection system, add a leading-edge SRL retractable (FPLR80302-12LE) or an energy-absorbing lanyard (FPL1340180C) as your fall arrest connection. Protect the head with a Peak T2 helmet with integrated chin strap (TA222), the eyes with safety glasses (YASF401BG) and hearing with earplugs (OA101). For the job, add suitable gloves (GS13SXGPU) and a flame-resistant garment (V7705).

Under “Accessories” at the bottom of the page. For safe storage and transport of your equipment at height, a Peakworks bag (FPBAG) keeps your gear clean and inspection-ready.

Green-coloured text corresponds to hyperlinks leading to specific safety equipment or general information.

Reference FPH1402117CAELP

Data sheet

Product group: Safety equipment
Main category: Personal protection
Sub category: Fall protection
Sub sub category: Fall protection safety harness
Name of the product: Safety harness
Series of products: ExoFit X200
Product code: FPH1402117CAL
Approved/Certified: Compliant with CSA Z259.10-18
Manufacturer: 3M DBI-SALA
Country of origin: United State of America
Choice of format: Size small (S) to extra-large (XL) available
Reusable: Reusable with careful inspection and proper installation
Features: Patented 3M double-locking quick-connect buckles. Sternal D-ring for ladder climbing.
Characteristic adding safety: Polyester webbing with a 6,000 lb (26.7 kN) strength rating.
Comfort features: Equipped with a sub-pelvic strap providing greater comfort during suspension.
Characteristics of metal parts: Unpainted metal parts for easy visual inspection; quick-connect leg buckles made of zinc-plated steel
Feature that facilitates use: The straps have distinct colors for easy donning
Includes: With 1 zinc-plated steel dorsal D-ring (stand-up) and 1 sternal (front) D-ring
Includes 2: Equipped with seat straps for comfortable seated positioning in suspension during prolonged work at height, adding comfort
Includes 3: The ends of the straps have plastic tips to prevent fraying and allow the user to adjust the harness easily even when wearing work gloves
Property of the material: Polyester straps offer better resistance to acidic chemicals
Classification: Class AELP — dorsal (A, fall arrest) + shoulders (E, rescue) + sternal (L, climbing) + hips (P, positioning)
Type of harness: Vest-style harness
Material1: Polyester
Material2: Aluminum
Material3: Aluminum alloy / zinc-plated steel
Weight (lb/kg): 4.46 lb / 2.02 kg
Availability: Please note: Available only on special order
Sold by: Unit
Color: Gray/Blue
Return conditions: No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
Caution: The maximum weight of the worker wearing this harness is 310 lb / 140.6 kg, including clothing, tools, etc.
