- New
DBI-SALA 3M Web Shock-Absorbing Lanyard, Small Snap Hook
FPL1246568C
$198.45
DBI-SALA 3M web shock-absorbing lanyard with a small spring-loaded snap hook, available in 3 ft, 4 ft or 6 ft. Ideal for fixed workstations and single-point restraint applications.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Fall protection: the single-leg shock absorbing lanyard for fixed work positions
| Length | Sylprotec code | 3M model | 3M purchase code |
|---|---|---|---|
| 3 ft (0.9 m) | FPL1246568C | 1246568C | 7100328996 |
| 4 ft (1.2 m) | FPL1246569C | 1246569C | 7100328997 |
| 6 ft (1.8 m) | FPL1246567C | 1246567C | 7100328995 |

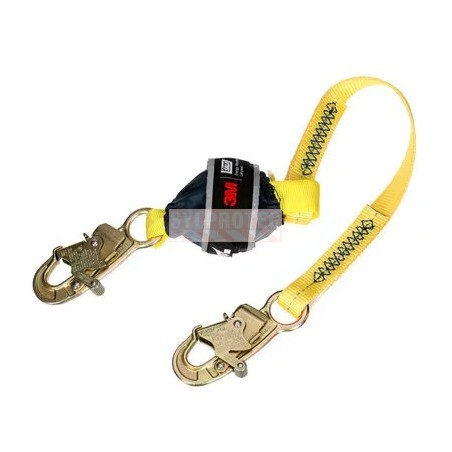

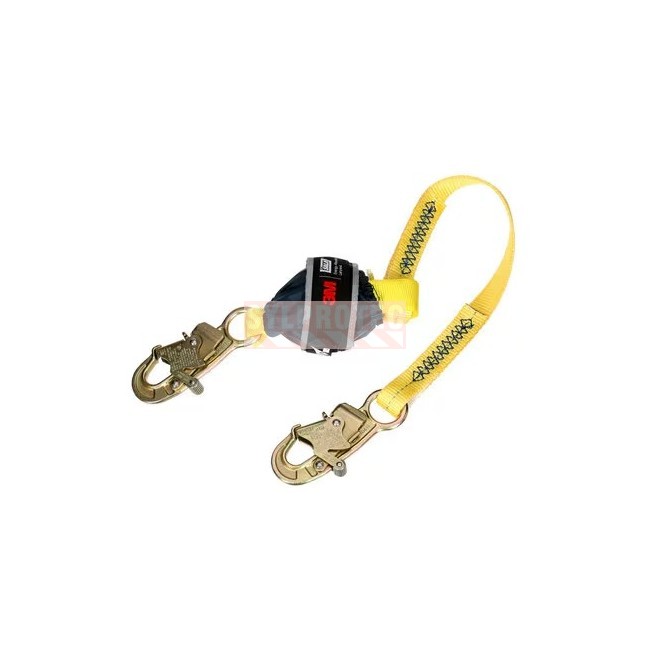

The DBI-SALA 3M shock absorbing lanyard, available in 3 ft (0.9 m), 4 ft (1.2 m) or 6 ft (1.8 m), is built for fall protection at height. Select the length from the drop-down menu on the page. Its yellow polyester web houses an energy absorber inside a black pack that deploys progressively during a fall to reduce the arresting forces transmitted to the worker.

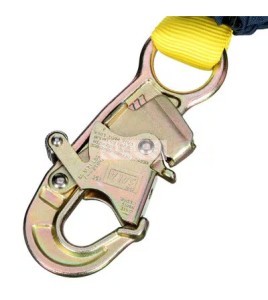

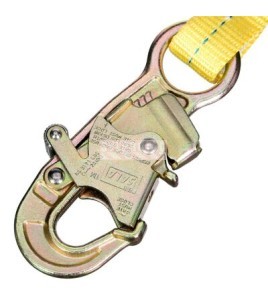

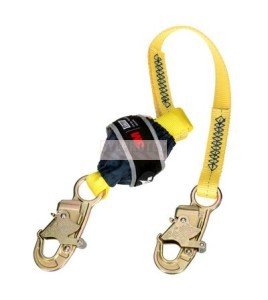

It connects by means of two zinc-plated snap hooks: one at the anchorage end and one at the harness attachment point. The 3M IRF identification system makes equipment tracking and inspection easier throughout its service life.
Total worker weight capacity, including clothing, tools and equipment, is 132 to 310 lb (59.9 to 140.6 kg). This product is certified to CSA Z259.11.
For work requiring frequent movement between anchor points, we also offer the (Y-lanyard) model. This twin-arm configuration provides a 100% continuous connection, since the second arm is attached before the first is released.
Understanding the fall clearance window
Before using this energy-absorbing lanyard, calculate the fall clearance, that is, the free space required below the anchorage point to arrest a fall before the worker strikes the ground or an obstacle. This clearance window adds up from several elements: the length of the lanyard, the deployment of the energy absorber, the height of the worker, the dorsal D-ring slide and a safety margin. A miscalculation is one of the most common causes of serious injuries at height, even with compliant equipment.
Example for the 3 ft model: the lanyard (3 ft) plus the absorber deployment (4 ft) plus the worker height (6 ft) plus a safety margin (1.5 ft) give a total clearance of about 14.5 ft (4.4 m) below an overhead anchorage.
Example for the 4 ft model: the lanyard (4 ft) plus the absorber deployment (4 ft) plus the worker height (6 ft) plus a safety margin (1.5 ft) give a total clearance of about 15.5 ft (4.7 m).
Example for the 6 ft model: the lanyard (6 ft) plus the absorber deployment (4 ft) plus the worker height (6 ft) plus a safety margin (1.5 ft) give a total clearance of about 17.5 ft (5.3 m). In low-clearance situations, choose a self-retracting lifeline instead.
FAQ: Frequently asked questions about the single-leg shock absorbing lanyard
Does this lanyard meet Canadian standards?
Yes, this product is certified to CSA Z259.11, ensuring compliance for construction sites and industrial environments in Canada.
What is the capacity of this lanyard?
This lanyard is designed for a worker whose total weight, including tools, is between 132 and 310 lb (59.9 to 140.6 kg).
When should I choose a single-leg lanyard over a double-leg Y lanyard?
The single-leg lanyard suits fixed single-anchor workstations and restraint applications where the worker does not move between several anchor points. For repeated transitions at height where 100% tie-off is required, choose a double-leg Y lanyard instead.
What fall clearance is required depending on the length?
For the 3 ft model: about 14.5 ft (4.4 m). For the 4 ft model: about 15.5 ft (4.7 m). For the 6 ft model: about 17.5 ft (5.3 m), below an overhead anchorage. In low-clearance situations, choose a self-retracting lifeline instead.
What happens if my anchor is at foot level?
This is the most dangerous scenario, fall factor 2: the free fall can reach twice the lanyard length. This 3M IRF energy absorbing lanyard is designed to dissipate the energy of a severe fall and reduce arresting forces, making it suitable when the anchor is at foot level.
Complementary suggestions for the lanyard:
Beyond fall arrest, equip the worker from head to toe: protect their hands with cut-resistant gloves (GS13SXGPU), their eyes with safety eyewear (YA3302), and their hearing in noisy areas with earplugs (BOUCHONS) or earmuffs (COQUILLES); on a traffic worksite, add a high-visibility vest (V6683).
To complete your fall protection system, combine your lanyard with reliable anchors: a connector (FPA210454X), a anchor (FPA2104703), or a rugged fixed connector (FPA210367X); attach it to an ExoFit harness (FPH140211XCAELP) or the model (FPH140212XALP), and post the mandatory sign (ECO130). Every component of the harness-lanyard-anchor assembly can save lives at height.
FPL1246568C
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Single lanyard with energy absorber
- Product code
- FPL124656X
- Product use
- Designed for construction work
- Approved/Certified
- Compliant with CSA Z259.11-17 standards
- Manufacturer
- 3M DBI-SALA
- Country of origin
- United State of America
- Format
- Depending on selection: 3 ft / 0.9 m, 4 ft / 1.2 m or 6 ft / 1.8 m
- Types of lanyards
- Single lanyard
- Reusable
- Reusable with careful inspection and proper installation
- Features
- The shock absorber deploys by controlled tearing to reduce fall arrest force
- Characteristic adding safety
- The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
- Characteristics of metal parts
- Non-painted metal parts
- Carabiners characteristics
- Equipped with two zinc-plated steel spring-loaded snap hooks with a 3/4 in / 19 mm gate opening
- Includes
- With an internal shock absorber featuring the 3M(TM) IRF system
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Worker’s weight
- 130 to 310 lbs / 59 to 140 kg (including tools and equipment)
- Material1
- Polyester
- Material2
- Steel
- Material3
- Vectran
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your lanyard. Air dry
- Length (in/cm)
- 17 in / 43.18 cm
- Width (in/cm)
- 13 in / 33.02 cm
- Height (in/cm)
- 8 in / 20.32 cm
- Weight (lb/kg)
- 2.31 lb / 1.05 kg
- Sold by
- Unit
- Color
- Yellow/Black
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- Maximum supported worker weight of 132 lb to 310 lb / 59.9 kg to 140.6 kg, including clothing, tools and equipment
