Peakworks D-Ring extender 2 X 18" (46 cm) for safety harness
FPLE
$18.80
Peakworks D-ring extender strap, 2 x 18 in, with a small D-ring to extend the harness dorsal ring. 5000 lb resistance, CSA and ANSI compliant.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

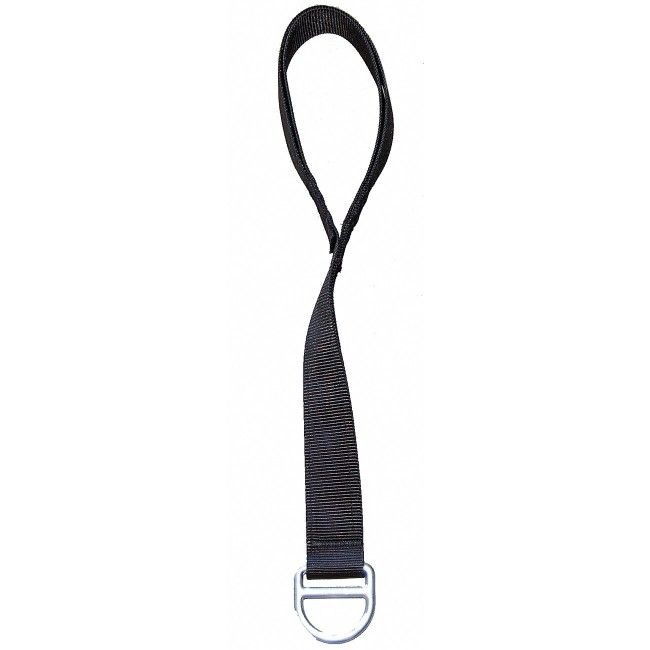

Peakworks 2 x 18 in D-ring extender strap for safety harness
The Peakworks D-ring extender strap is an extension designed to be installed between the dorsal D-ring of a safety harness and the fall arrest connector. Fitted with a small D-ring, it makes it easier to connect the harness to a lanyard, rope grab or anchorage point by moving the connection point away from the worker's back, which improves accessibility and comfort. Its dimensions are 2 in x 18 in (5 cm x 45.72 cm).
Peakworks product code: V860302 or model CP-14010. This strap is designed to withstand static forces of 5000 lb (22 kN), in compliance with CSA Z259.10-06 and ANSI Z359.1-2007. Very light (0.3 lb), it is easily added to existing equipment without weighing the worker down.
The extender strap is especially useful when the harness dorsal D-ring is hard to reach alone, or when a little more slack is needed to quickly connect and disconnect the fall arrest system. It does not replace a lanyard: it simply extends the dorsal attachment point.
Advantages of the Peakworks extender strap
This simple accessory improves the everyday ergonomics of the fall arrest connection.
Strap features and safety
- Small D-ring to connect the harness to the fall arrest system
- Dimensions of 2 in x 18 in (5 cm x 45.72 cm)
- Static resistance of 5000 lb (22 kN)
- Compliant with CSA Z259.10-06 and ANSI Z359.1-2007
- Very light (0.3 lb), added to existing equipment
- Eases access to the dorsal D-ring and connector hookup
Job sites and industries where this strap is required
- Construction and work at heights with a harness
- Building maintenance and roofing work
- Scaffolding and framing work
- Industrial maintenance and building mechanics
- Any situation where the dorsal D-ring is hard to reach
Extender strap inspection
The worker is responsible for performing a routine inspection before each use. The worker must note any sign of degradation, wear, malfunction or breakage (stitching, webbing, ring) and replace the strap at the first sign of failure. This accessory should also be inspected periodically by a qualified person other than the worker, all the more often as working conditions are harsh. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a fall protection inspection service; to learn more, see the Services tab.
Extender strap maintenance
For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.
FAQ about the Peakworks extender strap
What is a harness extender strap for?
It extends the harness dorsal D-ring to make the attachment point more accessible and to ease connecting a lanyard or rope grab. It does not absorb fall energy: it complements the system.
What is its resistance?
It is designed to withstand static forces of 5000 lb (22 kN), in compliance with CSA Z259.10-06 and ANSI Z359.1-2007.
Does it replace a fall arrest lanyard?
No. The extender strap replaces neither a lanyard nor an energy absorber; it only serves to extend the harness dorsal attachment point.
Suggested complementary products
To complete your fall arrest system, also consider a basic class A harness (FPH1000A), a contractor 3-ring harness (FPH2000AP), a Peakpro anti-trauma harness (FPH3000AP), a lumbar support harness (FPH4000AP), a heavy-duty lanyard (FPL6400), a concrete connector (FPAF075N), a self-locking carabiner (FPAM88) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FPLE
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Lanyards
- Name of the product
- Extension for fall protection
- Product code
- FPLE
- Approved/Certified
- Complies with CSA Z259.10-06 and ANSI Z359.1-2007 standards
- Manufacturer
- Peakworks
- Country of origin
- China
- Format
- 2 in X 18 in / 5 cm X 45.72 cm
- Reusable
- Reusable with careful inspection and proper installation
- Features
- Equipped with a small ring to connect the harness to an anchor point
- Characteristic adding safety
- Designed to withstand static forces of 5000 lbs (22 KN)
- Characteristics of metal parts
- Non-painted metal parts
- Property of the material
- Polyester straps offer better resistance to acidic chemicals
- Material1
- Polyester
- Material2
- Steel
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your strap. Air dry
- Length (in/cm)
- 6 in / 15.24 cm
- Width (in/cm)
- 6 in / 15.24 cm
- Height (in/cm)
- 1 in / 2.54 cm
- Weight (lb/kg)
- 0.3 lb / 0.1 Kg
- Sold by
- Unit
- Color
- Black/Gray
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
