FPLR70502-6LE

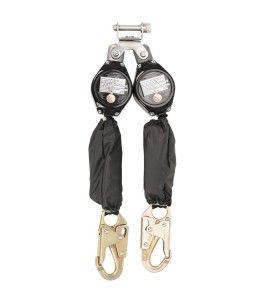

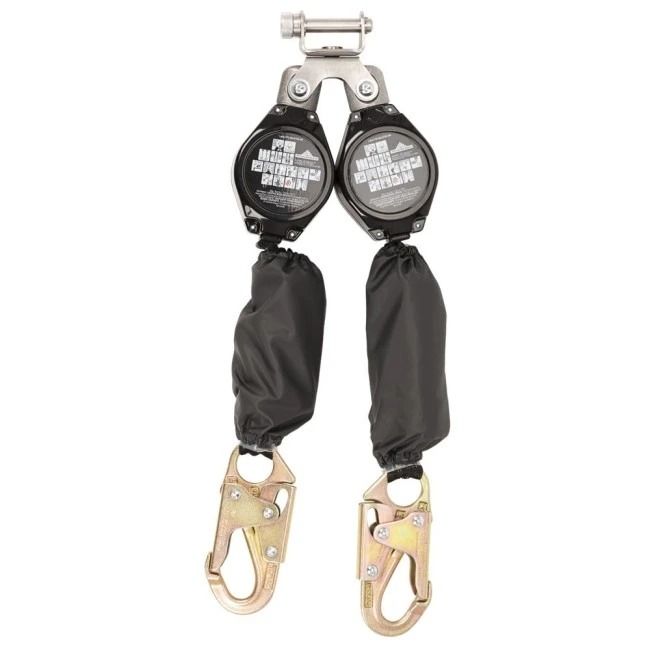

Peakworks Model SRL-70502-6LE, 6 ft twin leg with Dyneema webbing, 2 regular carabiners

$611.50

Return conditions : No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page

Peakwork's 6 foot long, twin legs self-retracting lifeline or personal fall limiter (SLR-LE) with external energy absorber. This self retracting lifeline for downslope application (SLR-LE) has the unique feature of being Leading Edge (LE). This model features enhancements to protect workers from sharp edges also known as Leading Edge (LE) applications. This protection is subject to the conditions of use described in the user manual.

Peakwork product code: V845625006LE, model # SRL-70502-6LE.

The webbing is made of 0.8" wide x 0.07" thick Dyneema® (20mm wide x 1.75mm thick). Dyneema® is known to be an excellent fiber to resist cuts and shears. The manufacturer recommends using this self-shrinking lifeline in temperatures ranging from -40°C to 50°C (-40°F to 122°F).

This product complies with ANSI Z359.14-2014 Class B, and CSA Z259.2.2-2017.

This self-retracting lifeline is equipped with two standard carabiners with a 7/8" (22.22 mm) opening. The carabiners are self-locking and unlock with a double action.

This personal fall limiter with vertical or horizontal anchorage can support a worker weighing up to 310 lbs (136 kg), including clothing, tools and equipment.

During a fall, the fall distance varies depending on the anchor arrangement. The maximum stopping distance is 12" (0.31 m) with a vertical anchor point and 48" (1.20 m) for a horizontal anchor. These values represent (DD) the deployment value of the connection device indicated in the free fall distance calculation diagram. Its braking mechanism combined with the energy absorber will limit the forces exerted on the falling worker. For a worker weighing a maximum of 310 lbs, the stopping forces will be 4.12 kN (928 lbf). Once the arrest mechanism is deployed, the lifeline overload indicator will appear. It is possible to have it repaired by the manufacturer, contact our customer service for a quote.

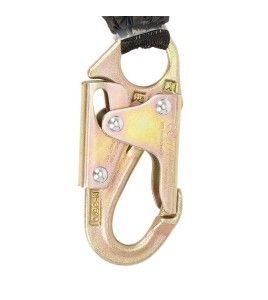

The carabiners (hooks) are made of steel and are capable of withstanding a force of 3600 lbs (16 kN) without deforming.

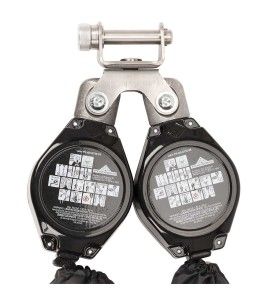

The housing is made of impact resistant aluminum and corrosion resistant parts. Due to its configuration, the housing must be installed near the D-ring of the harness. It is equipped with a  swivel eye attachment. The enclosure is approved for use in both horizontal and vertical positions, hence the Class B certification. Its total weight is 10 lbs (4.50 kg).
The self-retracting lifeline has a certification label on the housing.

About the anchor point and free fall distance:
The anchor point should preferably be located above the level of the harness back D ring and should be positioned vertically. The worker should remain below the anchor point so as to remain within a perimeter of no more than a 30 degree angle.

It can also be used in a horizontal configuration, i.e. the anchor point can be lower than the back ring. To avoid a swaying effect causing injury, the range of lateral movement should be limited to within 59" (1.50 m) on either side of the centerline formed with the anchor point. The minimum setback required to install the anchor point shall be a minimum of 12" (30 cm) from the edge.

In addition, if there are unprotected sharp edges, they shall be secured. The radius of the edge must be greater than or equal to 0.010 in (0.25 mm). This is regularly found on rolled steel profiles, wood beams or on rounded paneling.

It is important that the user be aware of the risks of a possible fall. Among other things, is there a sufficient distance free of obstacles below the worker? Are there emergency measures to recover quickly? Can the anchor point withstand a force of 5000 lbs? For more information, consult the manufacturer's manual.

Inspection:

The worker is responsible for performing a routine inspection before each use. During this routine inspection, the worker should observe any signs of damage, wear, malfunction or breakage. You must replace your equipment at the first sign of failure.

In addition, this retractable should be inspected by a qualified person other than the worker. The required frequency of these inspections varies by manufacturers. Some prescribe every 90 days, other every 180 days, or even annually.

Keep in mind that the more difficult the work and environmental conditions, the more often your equipment will need to be inspected. Sylprotec offers an inspection service for lanyards and safety harnesses. For self-retracting lifelines, we offer this service through the manufacturer. Find out more by clicking on the Services tab, under the Sylprotec logo at the top of the page.

Suggestion:

To complete your fall protection you will find a range of harness and anchors. Some products are suggested under the "accessories" tab at the bottom of this page.

Other equipment frequently used with this Self Retractive Lanyard:

Safety glasses YA12E90801
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28 Traffic Cones
Peakworks FPBAG storage bag
The FPL9903 Tool Strap

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.

Type of productSafety equipment
Main categoryPersonal protection
Sub categoryFall protection
Sub sub categorySelf-retracting lanyard & lifeline
Name of the productTwing legs Self retracting lifeline for downslope application (SLR-LE)
Product codeFPLR70502-6LE
Approved/CertifiedComplies with ANSI Z359.14-2014 Class B, and CSA Z259.2.2-2017
ManufacturerPeakworks
Country of originGermany
Format6 ft / 1.83 m
ReusableReusable with careful inspection and proper installation
FeaturesThe maximum stopping distance is 1 ft (0.31 m) with a vertical anchor point and 4 ft (1.20 m) for a horizontal anchor
Additional FeaturesSelf-retracting lanyards with the "LE" feature is designed to protect the worker when working near a sharp edge
Characteristic adding safetyThe carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
Comfort featuresIncreases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing
Characteristics of the strap or cableDyneema® webbing 0.07" (1.75 mm) thick
Characteristics of metal partsNon-painted metal parts
Carabiners characteristicsEquipped with two ¾" (19mm) standard opening steel carabiners. Carabiners are self-locking and unlock with a double action
Setback requirements for horizontal useThe minimum setback required to install the anchor point shall be a minimum of 12" (30 cm) from the edge
The amplitude of the lateral movement in horizontal positionWhen installed horizontally, the range of lateral movement must be limited to within 59" (1.50 m) on either side of the centerline formed with the anchor point
IncludesEquipped with a load indicator that shows when the unit has been subjected to severe force
Includes 2Equipped with an external shock pact unit (for leading-edge applications)
Worker’s weight310 lb / 140 Kg maximum
ClassificationB Class, LE
Operating temperatureFor use in temperatures from -22°F to 122°F / -30°C to 50°C
Form«Y»
Material1Aluminium
Material2Dyneema®
Material3Steel
WashableUse mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the retractable, only wipe the webbing. Air dry without excessive heat in a clean environment
Length (in/cm)12 in / 30.48 cm
Width (in/cm)11.87 in / 30.14 cm
Height (in/cm)13 in / 33 cm
Weight (lb/kg)Not disclosed by the manufacturer
AvailabilityPlease note: To obtain this item, please allow 1 to 4 weeks for delivery
Sold byUnit
ColorBlack/Grey
Return conditionsNo returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
CautionThe maximum weight of the worker that can wear this harness is 310 lb / 140 kg, including clothing, tools, etc.
