This product is no longer in stock

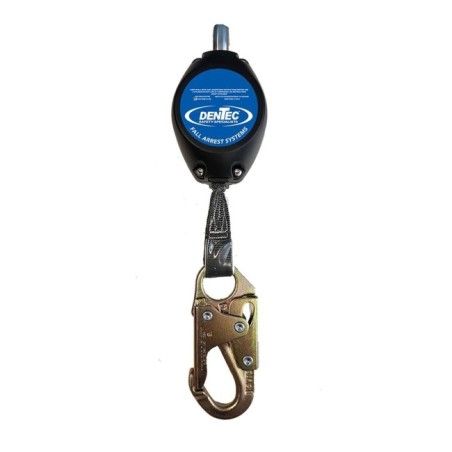

We are pleased to introduce the Self-Retracting Lifeline or Personal Fall Arrester (SRL) with Internal Energy Absorber, model 012115 from Dentec Safety Specialist. This 11 foot (3.35 m) lanyard complies with ANSI Z359.14-2014 and CSA Z259.2.2-1998 standards.
One of the main advantages of this type of equipment is that it replaces regular lanyards by providing a reduced stopping distance in case of a fall. The webbing is made of Kevlar and the termination with the carabiner is protected by a piece of UHMWPE.
The SLR has a standard self-locking carabiner with a 7/8" (22.22mm) opening that unlocks with a double action. It does not have a 3/4" (19mm) opening semi-automatic (rotating ring) carabiner (FPAM88 or FPAM91).
The maximum load limit of this personal fall limiter with vertical anchorage is 310 lbs (136 kg), including the worker's clothing, tools and equipment.
In the event of a fall, the fall distance will depend on the anchor arrangement. The maximum stopping distance is 39-3/8" (1.0 m) and the braking mechanism combined will limit the forces exerted on the falling worker to 4.12 kN (928 lbf) for a worker weighing up to 310 lbs.
The housing is made of impact resistant thermoplastic and corrosion resistant parts. It weighs 3.65 lb (1.35 kg). The lightweight devices can be mounted on the worker's harness for greater freedom and range of motion. The enclosure is approved for use in the vertical application only. In addition, it has an integrated rotating swivel that prevents the strap from twisting.
The self-retracting lanyard has a certification label on the housing, while a bilingual instructional label is affixed to the housing to enhance understanding of the conditions of use. This model is not designed to protect workers from sharp edges, also known as Leading Edge (LE) applications, but proper protection is possible by following the operating conditions outlined in the user manual.
In summary, the Dentec Safety Specialist Self-Retracting Lanyard or Personal Fall Arrestor (SRL) with internal energy absorber provides reliable protection for workers at height. With its affordable price, it is a safe and effective alternative to regular lanyards, as long as the anchorage is not lower than the back ring. Order yours today and experience the Dentec Safety Specialist difference.
Thickness: 0.06 in (1.59 mm)
Width: 1.0" (25.4 mm)
Length: 11 ft (3.35 m)
About the anchor point and free fall distance:
The anchor point should preferably be located above the level of the harness back loop and should be positioned vertically to the user. The worker should remain below the anchor point so as to remain within a perimeter of no more than a 30 degree angle. In addition, if there are unprotected cutting edges, they should be secured.
It is important that the user is aware of the risks of a possible fall. Among other things, is there a sufficient distance free of obstacles below the worker? Are there emergency measures in place to quickly recover the worker? Can the anchor point withstand a force of 5000 lbs? For more information, consult the manufacturer's manual.
The worker is responsible for performing a routine inspection before each use. During this routine inspection, the worker should observe any signs of deterioration, wear, malfunction or breakage. You must replace your equipment at the first sign of failure.
In addition, this retractable should be inspected by a qualified person other than the worker. The required frequency of these inspections varies by manufacturers. Some prescribe every 90 days, other every 180 days, or even annually.
Keep in mind that the more difficult the work and environmental conditions, the more often your equipment will need to be inspected. The recommended life span of a lanyard is 5 years. Some manufacturers are silent on the subject, but in practice, a retractable used regularly and neglected in terms of storage or maintenance will not have a long life. On average, their lifespan will not exceed 5 years.
Sylprotec offers an inspection service for lanyards and safety harnesses. For this type of self retracting lifeline, the manufacturer is not able to provide recertification. Due to their low cost, they are discarded in case of breakage or wear. Find out more by clicking on the Services tab, under the Sylprotec logo at the top of the page.
To complete your fall protection you will find a range of harness and anchors. Some products are suggested under the "accessories" tab at the bottom of this page.
Other equipment frequently used with this Self Retractive Lanyard:
Semi-automatic carabiner FPAM88
Safety glasses YA12E90801
Liberty TA14LR safety helmet and the essential TA14CS chin strap
EPTCONE28 Traffic Cones
Peakworks FPBAG storage bag
The FPL9903 Tool Strap
The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
|Type of product||Safety equipment|
|Main category||Personal protection|
|Sub category||Fall protection|
|Sub sub category||Self-retracting lanyard & lifeline|
|Name of the product||Self retracting lifeline (SLR)|
|Approved/Certified||Complies with ANSI Z359.14-2014 and CSA Z259.2.2-1998|
|Manufacturer||Dentec Safety Specialists|
|Country of origin||United State of America|
|Format||11 ft / 3.35 m|
|Reusable||Reusable with careful inspection and proper installation|
|Maintenance free||Discard if damaged, contaminated, dirty or worn|
|Features||Maximum stopping distance is UNKNOW with a vertical anchor point|
|Additional Features||This self retracting lifeline does not protect workers from sharp edges also called Leading Edge (LE) applications|
|Characteristic adding safety||The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming|
|Comfort features||Increases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing|
|Characteristics of the strap or cable||1/16" (1.59 mm) thick Kevlar webbing, UHMWEP webbing end protection|
|Characteristics of metal parts||Non-painted metal parts|
|Carabiners characteristics||Fitted with a standard 7/8" (22.22 mm) opening steel carabiner. The carabiner is self-locking FPAM88 is not included with this equipment|
|Includes||Equipped with a load indicator that shows when the unit has been subjected to severe force|
|Worker’s weight||310 lb / 140 Kg maximum|
|Washable||Use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the retractable, only wipe the webbing. Air dry without excessive heat in a clean environment|
|Length (in/cm)||16.3 in / 41.5 cm|
|Width (in/cm)||4.1 in / 10.5 cm|
|Height (in/cm)||3.0 in / 7.5 cm|
|Weight (lb/kg)||Not disclosed by the manufacturer|
|Return conditions||No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page|
|Caution||The maximum weight of the worker that can wear this harness is 310 lb / 140 kg, including clothing, tools, etc.|
|Does not include||Does not include the semi-automatic carabiner to connect the self retracting lifeline to the anchor point|
