Peakworks Life line Model SRL-73303-96, 96 ft, with recovery Self-Retracting Lifelines, galvanized steel cable

Name: Peakworks Life line Model SRL-73303-96, 96 ft, with recovery Self-Retracting Lifelines, galvanized steel cable
Brand: Peakworks
SKU: FPLR73303-96
Price: 3731.65 CAD
Availability: InStock

Reference : FPLR73303-96

$3,731.65

Peakworks 96 ft (29.26 m) retrieval self-retracting lifeline with rescue crank, galvanized steel cable. Fall arrest + retrieval. Capacity 310 lb.

Quantity

Compare

Estimate Shipping

Return conditions:

No returnable if used. For more information about our return policy, please refer to the Orders and Returns.

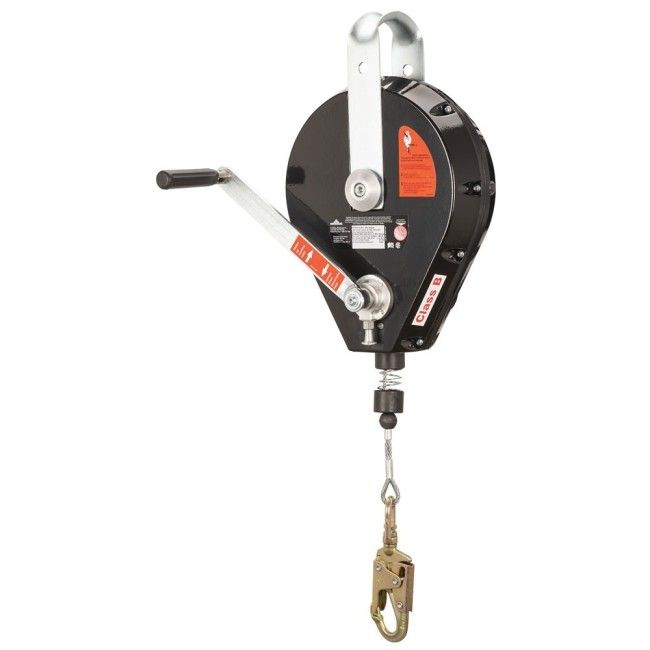

Peakworks 96 ft (29.26 m) retrieval self-retracting lifeline with rescue crank

The Peakworks retrieval self-retracting lifeline (SRL-R) is a personal fall limiter equipped with an internal energy absorber and a retrieval / rescue crank, with a length of 96 ft (29.26 m). In the event of a fall, it acts as a fall-arrest block; its crank then allows the worker to be raised or lowered to safety, particularly in confined spaces. The cable is 0.22 in (5.5 mm) galvanized steel.

Restricted use: this lifeline is designed to serve as a fall-arrest block and a post-fall recovery/retrieval device. It is not designed for work positioning, personnel transport, or the lifting or moving of goods or materials.

Peakworks product code: V845643096, model SRL-73303-96. This product complies with ANSI Z359.14-2014 and CSA Z259.2.2-2017. It is fitted with one swivel steel carabiner with a standard 7/8 in (22.22 mm) opening, self-locking with double action. With a vertical anchorage, this limiter can support a worker weighing 310 lb (136 kg), including clothing, tools and equipment. The maximum arrest distance is 32 in (0.80 m) with a vertical anchorage.

Advantages of the Peakworks retrieval lifeline

This SRL-R combines fall arrest and built-in rescue capability, ideal for confined-space and at-height interventions.

Lifeline features and safety

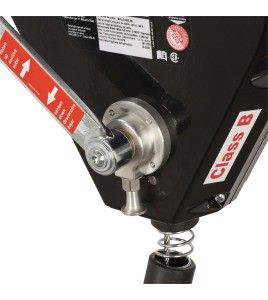

Built-in retrieval / rescue crank function
0.22 in (5.5 mm) galvanized steel cable, length 96 ft (29.26 m)
Internal energy absorber, 32 in arrest distance (vertical)
Swivel steel carabiner 7/8 in, self-locking double action
Capacity of 310 lb (136 kg), including tools and equipment
Compliant with ANSI Z359.14-2014 and CSA Z259.2.2-2017

Job sites and industries where this lifeline is required

Confined-space work (tanks, wells, silos, manholes)
Rescue and vertical retrieval operations
Work at heights requiring emergency hoisting
Industrial maintenance and municipal services
Mounting on a tripod or retrieval davit

About the anchorage point

This retrieval lifeline is typically mounted on a tripod or davit using a suitable bracket. The anchorage must be positioned according to the manufacturer's manual and withstand a force of 5000 lb. The user must assess the fall distance and clearance. Reminder: this equipment is not for positioning or material lifting.

Retrieval lifeline inspection

The worker is responsible for performing a routine inspection before each use. The worker must check the retraction and locking of the cable, the proper operation of the retrieval crank, the fall indicator, the carabiner, and note any sign of degradation, wear or breakage. Replace the equipment at the first sign of failure. This SRL-R should also be inspected periodically by a qualified person other than the worker, according to the manufacturer's conditions. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a fall protection inspection service; to learn more, see the Services tab.

Retrieval lifeline maintenance

For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. Keep the mechanism and crank clean and dry. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.

FAQ about the Peakworks retrieval lifeline

What is the retrieval function for?

After a fall is arrested, the built-in crank lets you raise or lower the worker to safety — essential for confined-space rescue without extra equipment.

Can it be used to position or lift materials?

No. This lifeline is only for fall arrest and person retrieval. It must not be used for positioning, personnel transport or the lifting of goods.

What is the capacity of this lifeline?

It supports a worker with a total weight of 310 lb (136 kg), including clothing, tools and equipment, with a vertical anchorage.

Suggested complementary products

To complete your rescue system, also consider a class A,P,L,E confined-space harness (6 D-rings, FPH2000AELP), a class A,E descent harness (FPH2000AE), a confined-space yoke (FPLRKL), a tripod with pulley (FPLRKT), a mounting bracket (FPLRS), a self-locking carabiner (FPAM88), an anchorage sling (FPAE) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.

Reference FPLR73303-96

Data sheet

Product group: Safety equipment
Main category: Personal protection
Sub category: Fall protection
Sub sub category: Self-retracting lanyard & lifeline
Name of the product: Self-retracting lifeline with crank mechanism for rescue
Product code: FPLR73303-96
Approved/Certified: Complies with ANSI Z359.14-2014 and CSA Z259.2.2-2017
Manufacturer: Peakworks
Country of origin: Germany
Format: 96 ft / 29 m
Reusable: Reusable with careful inspection and proper installation
Features: The maximum stopping distance is 43 in (1.10 m) with a vertical anchor point
Additional Features: This self retracting lifeline is not designed for horizontal applications. Therefore, it does not protect against sharp edges
Characteristic adding safety: The carabiners are capable of withstanding a force of 3600 lb (16 kN) without deforming
Comfort features: Increases user mobility in the work area, minimizes fall distance. Excellent for ladder climbing
Characteristics of the strap or cable: Cable is made of 0.22" (5.5 mm) galvanized steel
Characteristics of metal parts: Non-painted metal parts
Carabiners characteristics: Equipped with one ¾" (19mm) standard opening steel carabiner. Carabiner is self-locking and unlock with a double action
Includes: Equipped with a load indicator that shows when the unit has been subjected to severe force
Worker’s weight: 310 lb / 140 Kg maximum, with tools and equipment
Classification: Class SRL-R
Operating temperature: Operating temperature range -40° C to 50°C (-40°F to 122°F)
Material1: Aluminium
Material2: Galvanized steel
Material3: Steel
Washable: Use mild soap and lukewarm water (37°C). Do not use bleach or other abrasive or chemical products. Do not immerse the life line, only wipe the cable. Air dry without excessive heat in a clean environment
Length (in/cm): 12 in / 30.48 cm
Width (in/cm): 8 in / 20.3 cm
Height (in/cm): 6 in / 15.2 cm
Weight (lb/kg): Not disclosed by the manufacturer
Sold by: Unit
Color: Black/Gray
Return conditions: No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
Caution: The maximum weight of the worker that can wear this harness is 310 lb / 140 kg, including clothing, tools, etc.
