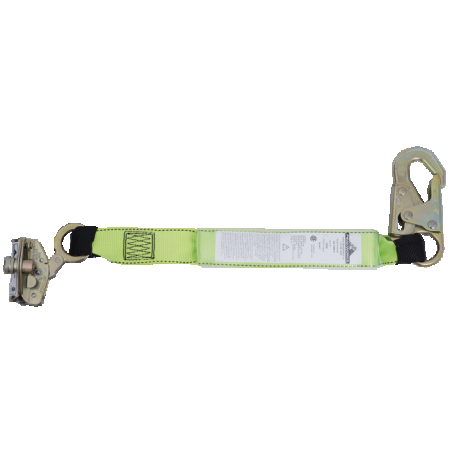

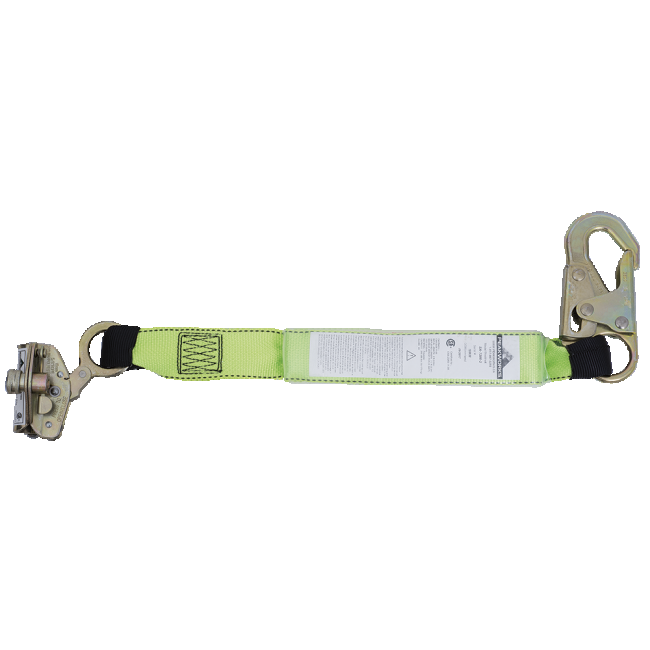

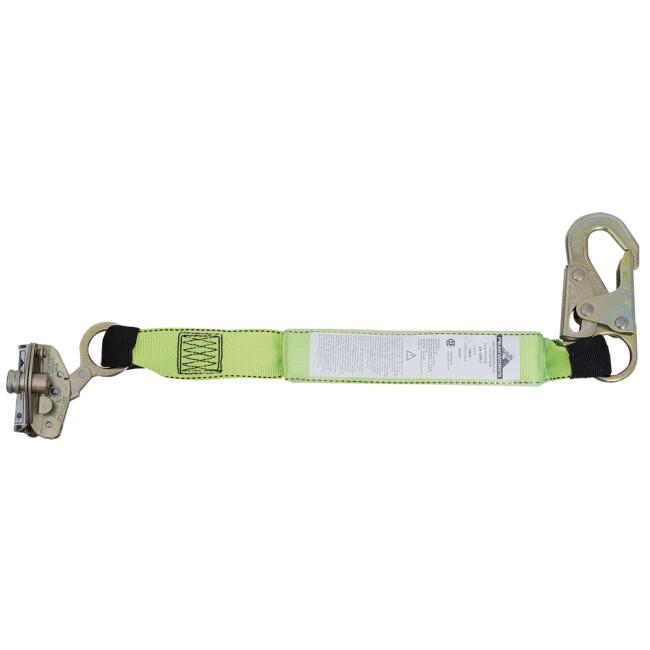

E6 automatic rope grab with panic lock, 2ft. lanyard for 200 to 386 lb workers

Peakworks E6 heavy-duty rope grab with panic lock for vertical lifeline

The Peakworks FPACCE6 fall arrest rope grab is a type E6 device designed for heavier workers, sliding along a vertical safety rope and stopping a fall thanks to its cam mechanism that firmly grips the rope. It comes with a 2 ft (0.6 m) lanyard, a Shock Pack energy absorber and a standard carabiner with a ¾ in (19 mm) opening. The worker must use it with an approved fall-arrest rope of 5/8 in (16 mm) diameter. It is the ideal solution for safe vertical movement (ladders, roofs, structures) when the total weight exceeds the range of standard rope grabs.

Its key advantage is the panic-lock device: a spring-loaded cam lever lets the cam grip the rope even if the user instinctively grabs and forces the lever during a fall. This prevents the "tight-grip falls" associated with standard rope grabs. The rope grab is mainly used vertically, with the arrow pointing toward the anchorage (upward).

Peakworks product code: V8103362 or model SA-7206-2. Complies with CSA Z259.11-05 and CSA Z259.2.5-17. According to the manufacturer, the FPACCE6 rope grab is designed to withstand static forces of 5000 lb (22 kN). It suits a worker weighing 200 to 386 lb (91 to 175 kg), including clothing, tools and equipment — an extended range for heavy loads.

The energy absorber is designed to reduce the impact force of a fall below 900 lb (4 kN). During a fall, it deploys over a distance of 6 ft (1.8 m) to reduce the force experienced by the worker at arrest. Once the absorber has deployed, the lanyard and harness must be replaced: it is the sign that the equipment did its job and protected a life.

Advantages of the Peakworks E6 heavy-duty rope grab

This rope grab combines enhanced safety, extended capacity and compliance with Canadian standards.

Rope grab features and safety

• Automatic cam mechanism locking the fall on the rope
• Panic-lock device preventing tight-grip falls
• 2 ft lanyard, Shock Pack absorber (impact below 900 lb) and standard ¾ in carabiner
• To be used with an approved 5/8 in (16 mm) rope
• Static resistance of 5000 lb (22 kN)
• Extended capacity of 200 to 386 lb (91 to 175 kg) for heavy loads

Job sites and industries where this rope grab is required

• Work on fixed ladders and vertical access
• Roofing and decking work
• Construction and building maintenance at heights
• Industrial maintenance along vertical structures
• Installation and inspection of equipment at heights

About the anchorage point

The anchorage point should preferably be located above the level of the harness dorsal D-ring and positioned vertically relative to the user. The user must assess the risks of a fall: is there enough clear distance free of obstacles below the worker? Are emergency measures in place to recover the worker quickly? Can the anchorage point withstand a force of 5000 lb? For more information, consult the manufacturer's manual.

Safety rope grab inspection

The worker is responsible for performing a routine inspection before each use. The worker must check that the cam and panic-lock lever work properly, note any sign of degradation, wear or breakage, and replace the rope grab at the first sign of failure. This device should also be inspected periodically by a qualified person other than the worker (from every 90 days to yearly depending on the manufacturer and conditions). The recommended lifetime is 5 years. Any equipment that has withstood a fall or an impact must be taken out of service. Sylprotec offers a fall protection inspection service; to learn more, see the Services tab.

Fall arrest rope grab maintenance

For cleaning, use a mild soap and lukewarm water (37 °C). Do not use bleach or abrasive or chemical products. Keep the cam mechanism clean and free of debris. Air dry, without excessive heat, in a clean environment. Avoid prolonged exposure to sunlight and to any source of contamination.

FAQ about the Peakworks E6 rope grab

What is the difference between an E6 and an E4 rope grab?

The E6 type is designed for a higher weight range (200 to 386 lb) than the E4 type (99 to 253 lb). Choose the E6 when the worker's total weight, including tools and equipment, exceeds the E4 range.

What is the panic-lock device?

It is a spring-loaded cam lever that lets the cam grip the rope even if the worker instinctively grabs and forces the lever during a fall, thereby preventing tight-grip falls.

What rope should be used with this rope grab?

A vertical safety rope of 5/8 in (16 mm) diameter approved for fall arrest. The rope grab must be oriented with the arrow toward the anchorage (upward).

Suggested complementary products

To complete your vertical system, also consider a 5/8 in vertical lifeline rope (FPAC), a self-locking carabiner (FPAM86), a temporary roof anchor (FPA828), a permanent roof connector (FPA826), a reusable roof anchor (FPA827), a basic class A harness (FPH1000A), a contractor class A harness (FPH2000A) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
