Concrete anchor bolt for FPA1540, 4 in / 10.16 cm long

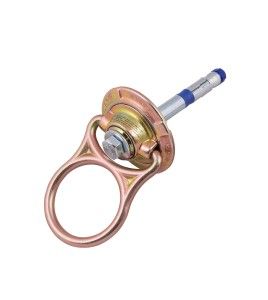

Concrete anchor bolt for the FPA1540 anchor

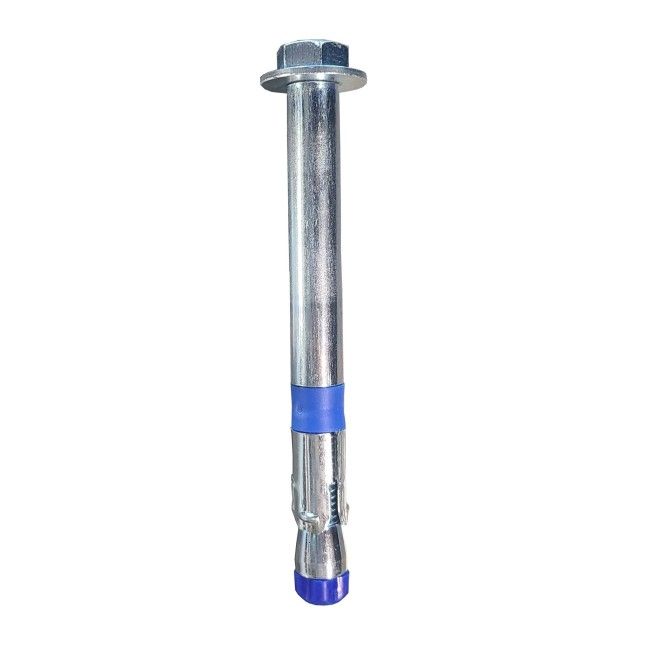

The FPA1540B is the concrete anchor bolt from the mounting hardware used with the 5K Swivel permanent anchor FPA1540. It consists of a hex-head concrete bolt and a concrete plug, and measures 4 in (10.16 cm) long. It is the part that solidly anchors the 5K Swivel into the slab. Sold individually.

The FPA1540 is supplied with its bolt included; this FPA1540B remains available separately when only the mounting hardware is required, for replacement or preparation of a new installation. Hiigard manufacturer code: SWY2CSA-475.

Advantages of the concrete mounting bolt

A dedicated mounting part, this bolt anchors the 5K Swivel into concrete and lets you plan a spare part without repurchasing the complete anchor.

Features of the anchor bolt

• Hex-head concrete bolt + concrete plug
• 4 in (10.16 cm) long
• Dedicated mounting part for the FPA1540 permanent anchor
• Required drill hole: ½ in (13 mm) diameter
• Minimum hole depth: 4½ in (114 mm)
• Tightening torque: 40 ft-lb (54.23 N·m)

Job sites and industries where this product is required

• Hardware replacement for the FPA1540 anchor
• Fall protection work on concrete slabs
• Maintenance and recommissioning of fixed anchorage points
• Spare-part planning for work-at-height job sites

Anchor bolt installation

Use a drill, ideally with an SDS chuck, to drill a ½ in (13 mm) diameter hole with a minimum depth of 4½ in (114 mm). The hole location must be more than 8 in (203 mm) from the edge of the slab. The hole must be perpendicular to the slab and cleaned of all debris before installation. The slab must be at least 7 in (178 mm) thick and the concrete must offer a minimum strength of 3000 psi (20.7 MPa). Finally, tighten the bolt to 40 ft-lb (54.23 N·m), according to the manufacturer's instructions. Recommended operating temperatures are -30 °F to +130 °F (-34 °C to +54 °C).

Anchorage point inspection

Before installation or recommissioning of an anchorage point, check the condition of the bolt, plug, thread and concrete surface. Any deformation, significant corrosion, abnormal wear or damage requires replacement of the part. An anchor that has sustained an impact or arrested a fall must be taken out of service immediately and replaced according to the applicable instructions. Sylprotec offers a fall protection equipment inspection service; see the Services tab.

FAQ about the concrete anchor bolt

Here are the most frequent questions about the inclusion, drilling and tightening of this mounting bolt.

Is the FPA1540B the bolt sold with the FPA1540?

Yes. The FPA1540 is sold with its bolt included, and the FPA1540B is also sold separately as mounting or replacement hardware.

What hole is required for this bolt?

The manufacturer indicates a ½ in (13 mm) diameter hole, with a minimum depth of 4½ in (114 mm), more than 8 in (203 mm) from the edge of the slab.

What tightening torque is required?

The indicated tightening torque is 40 ft-lb (54.23 N·m), according to the manufacturer's instructions.

Suggested anchorage and fall protection products

To complete your installation, this bolt is used with the 5K Swivel anchor and the rest of the fall protection chain. Depending on the support and the type of work, you will choose a permanent, reusable or temporary anchor, then the associated equipment.

Also consider the 5K Swivel anchor (FPA1540), a class A harness (FPH1000A), a panic-lock grab (FPACC), a vertical lifeline rope (FPAC), the complete roofer kit (FPK50), a stainless permanent anchorage connector (FPA826), a reusable roof anchor (FPA827) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.

The texts coloured in green correspond to hyperlinks leading to specific safety equipment or to a general information link.
