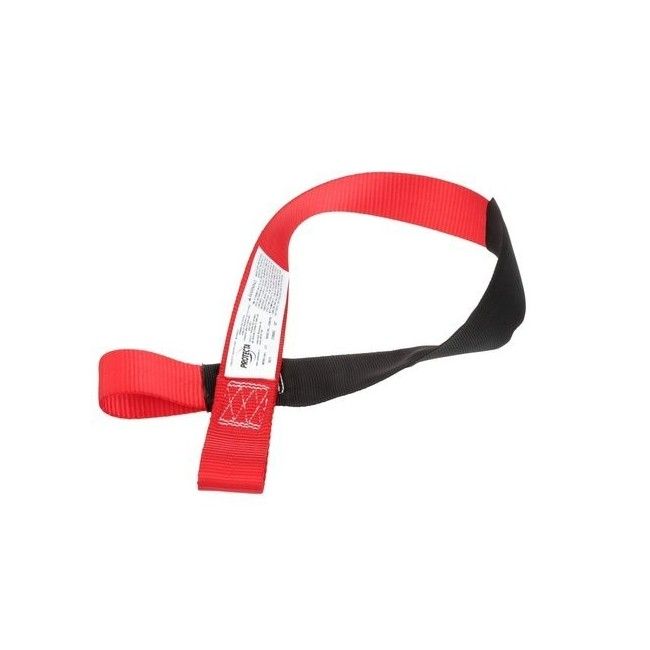

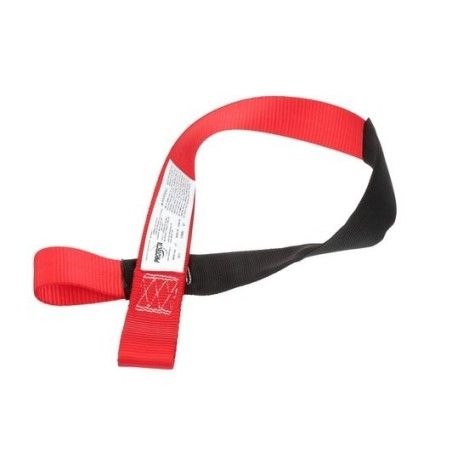

Protecta Pro concrete anchor strap, 42 in, 420 lb, pack of 25
FP2190063
$273.80
Protecta Pro concrete anchor strap, 42 in (1 m) polyester, loop over rebar. 420 lb max worker, sold in a pack of 25.
Return conditions:
No returnable if used. For more information about our return policy, please refer to the Orders and Returns.
Concrete anchor strap Protecta Pro, 42 in, pack of 25
The ProtectaMD ProMD (3M) concrete anchor strap is a temporary anchorage connector designed for fall protection on concrete job sites. Made from abrasion-resistant polyester, 42 in (1 m) long, its loop slides onto the rebar before the pour to create a quick anchorage point. Sold in a pack of 25 units. ProtectaMD ProMD manufacturer code: 2190063.
The maximum worker weight is 420 lb (190 kg), including clothing, tools and equipment. According to the manufacturer, these straps can withstand a load of 5000 lb (22 kN) or meet the OSHA criterion of a 2-to-1 safety factor. No certification is currently available for this product other than the OSHA compliance mentioned by the manufacturer.
Advantages of the concrete anchor strap
Compact, light and economical in a pack of 25, this strap provides a quick-to-install temporary anchorage point on rebar, ideal for pouring phases and work near edges.
Features and safety of the anchor strap
- Concrete anchor strap 42 in (1 m) long
- The loop slides onto the rebar for quick installation
- Durable polyester construction, abrasion-resistant
- Fabric loop allowing connection with a carabiner or fall protection system
- Compact and light design
- Temporary anchor, cut at the end of the job
- Maximum worker weight: 420 lb (190 kg), equipment included
- Sold in a pack of 25 units
Job sites and industries where this strap is required
- Poured-concrete job sites and work near edges
- Building and structure construction
- Temporary anchoring on rebar before pouring
- Work at height requiring a disposable anchor at end of job
Installation and anchorage point
The anchorage connector is installed on the concrete rebar before the pour. Once the concrete is poured, the straps serve as anchors for workers near the building edge. When all work involving a fall hazard is finished, the straps are cut. As with any fall protection anchorage point, assess the fall distance, the free clearance below the worker, the rescue measures and the anchor strength.
Inspection of the anchor strap
The worker is responsible for a routine inspection before each use: look for any sign of wear, cut, fraying, burn or degradation of the strap and loop. Replace the strap at the first sign of failure. It should also be inspected periodically by a qualified person other than the worker. Any equipment subjected to a fall or impact must be removed from service. Sylprotec offers a fall protection equipment inspection service; see the Services tab.
FAQ about the concrete anchor strap
Here are the most frequent questions about the capacity, installation and packaging of this concrete anchor strap.
How many units are in a pack?
The strap is sold in a pack of 25 units.
What worker weight does this strap support?
The maximum worker weight is 420 lb (190 kg), including clothing, tools and equipment.
Is this strap certified?
No certification is currently available for this product other than the OSHA compliance (2:1 safety factor) mentioned by the manufacturer.
Suggested anchorage and fall protection products
To build a complete fall protection system on a concrete job site, this strap combines with the rest of the protection chain. Also consider a class A harness (FPH1000A), a panic-lock grab (FPACC), a vertical lifeline rope (FPAC), a stainless permanent anchorage connector (FPA826), a temporary concrete anchor (FPAF075N), an anchor sling (FPAE), a fixed anchorage connector (FPA822) and a storage bag (FPBAG). Under "Accessories" at the bottom of the page.
FP2190063
Data sheet
- Product group
- Safety equipment
- Main category
- Personal protection
- Sub category
- Fall protection
- Sub sub category
- Anchorage & connectors
- Name of the product
- Mooring strap
- Product code
- FP2190063
- Approved/Certified
- No certification at present for this product other than the one mentioned with OSHA by the manufacturer
- Manufacturer
- 3M (TM)
- Country of origin
- Unknown origin
- Format
- 42 in / 1 m
- Maintenance free
- Cutting at the end of the work
- Features
- Depending on the use of the anchor connector is installed on the concrete rods before pouring. They are then used to anchor workers near the edge of the building. When all work involving a fall hazard is completed, they are cut
- Characteristic adding safety
- Designed to withstand static forces of 5000 lbs (22 KN)
- Worker’s weight
- 420 lb / 190.5 kg maximum, with tools and equipment
- Material
- Polyester
- Washable
- Wash in warm water, 98.60°F/ 37°C. Never use bleach or other abrasive or chemical products on your strap. Air dry
- Length (in/cm)
- 6 in / 15.24 cm
- Width (in/cm)
- 6 in / 15.24 cm
- Height (in/cm)
- 3 in / 7.6 cm
- Weight (lb/kg)
- 3 lb / 1.4 Kg
- Sold by
- Unit
- Color
- Black/Red
- Another packaging available
- Case of 25 units
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Caution
- The maximum weight supported is 420 lb / 190.5 kg, including clothing, tools, etc
