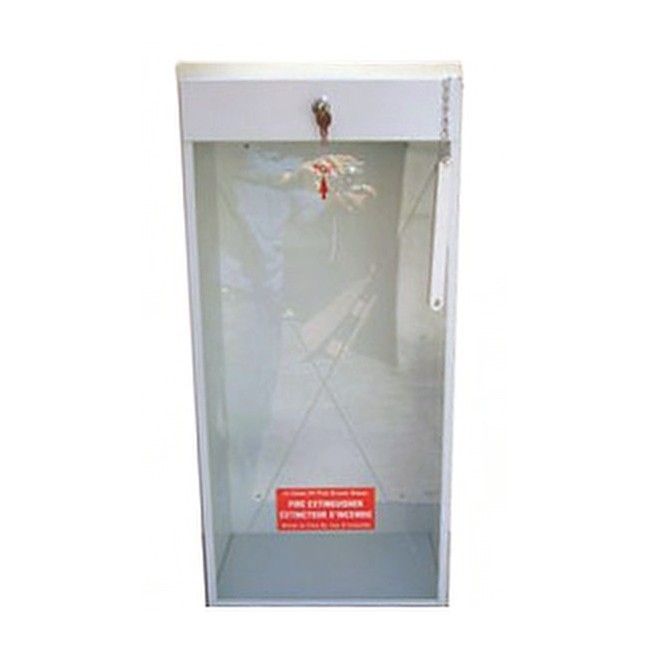

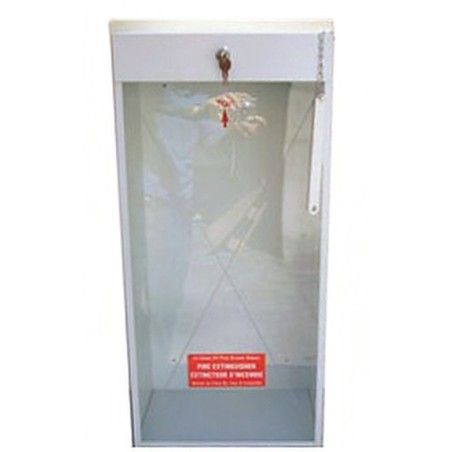

Surface-mounted steel cabinet for 20 lbs or 2.5 gal extinguishers

Heavy-duty metal fire extinguisher cabinet for surface wall installation

The surface-mounted steel cabinet for 20 lb or 2.5 gal fire extinguishers is a large-format protective housing designed to shelter and secure high-capacity fire safety equipment. Intended primarily for indoor installations, this cabinet effectively protects the extinguisher from accidental impacts, vandalism, dust buildup, and unauthorized tampering. Its surface-mounted design allows for quick and sturdy wall installation, eliminating the need to cut into the wall.

In large commercial spaces, heavy industrial environments, warehouses, or multi-level parking garages, 20 lb or 2.5-gallon fire extinguishers are critical emergency response tools. This metal housing provides an organized and highly professional storage solution that preserves the operational integrity of your large-scale devices while ensuring they can be spotted instantly during an emergency.

Inner size:
width 14", height 30", depth 9".
(width 35.5 cm, height 76.2 cm, depth 22.9 cm).

Window size:
width 14", height 28".
(width 35.5 cm, height 71.1 cm).

Durable steel construction built for high-capacity equipment

Manufactured from industrial-grade steel with a resilient protective finish, this cabinet is built to withstand demanding environments. Its door is equipped with a clear inspection window that allows safety managers to instantly check the extinguisher's presence and pressure gauge status during mandatory monthly inspections without opening the cabinet.

Offering excellent visibility due to its distinctive color, the housing ensures that building occupants can locate the fire station without hesitation. Access to the device is gained quickly, depending on the chosen configuration, either via a pull-handle latch or by breaking the secure glass access panel.

Why choose this 20 lb steel surface-mounted cabinet

• Simplified installation: Mounts directly onto the wall surface without complex recessed construction work.

• Large format: Optimal interior dimensions to safely house a heavy 20 lb or 2.5-gallon fire extinguisher.

• Maximum protection: Rigid steel housing that shields equipment from mechanical impacts and debris.

• Streamlined inspection: Clear window makes it simple to read the pressure gauge at a glance.

Technical specifications

• Compatibility: 20 lbs portable fire extinguishers (dry chemical, CO2) or 2.5-gallon water fire extinguishers

• Installation type: Surface-mounted

• Material: Heavy-duty steel with protective coating

• Application: Indoor protection for industrial sites, warehouses, and large commercial spaces

• Visual component: Integrated clear inspection window

FAQ — Frequently asked questions about the 20 lb surface cabinet

What is the difference between a surface-mounted cabinet and a recessed cabinet for a 20 lb fire extinguisher?

A surface-mounted cabinet fixes directly to the wall and projects outwards, making its installation very simple and fast. Due to the significant size of a 20 lb fire extinguisher, recessed or semi-recessed models require a deep opening cut inside the wall to reduce the projection into corridors or high-traffic walkways.

Can this steel cabinet be installed in an outdoor environment?

This steel cabinet is designed for indoor use or in locations well-sheltered from weather elements. For direct exposure to rain, snow, or high moisture, it is strongly recommended to use weatherproof fiberglass or thermoplastic cabinets to prevent the steel from rusting.

How do you open the cabinet to access the extinguisher during a fire?

The cabinet typically opens using a standard handle latch for immediate access. On certain high-security or anti-tamper models, access requires breaking the glass panel or clear access window using a small emergency hammer mounted nearby.
